VGA 2AV Reversing LCD Control Board With 7inch 800x480 HSD070IDW1 Touch LCD Screen

Model NO.
K000937 VS-TY5060-V1+7inch tp
Quantity:

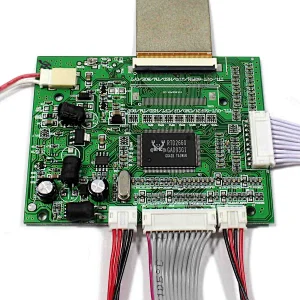

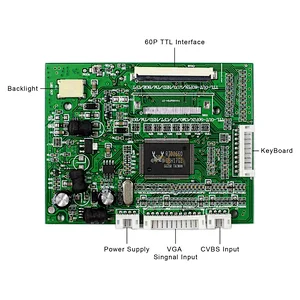

  • LCD Controller Board:
    VGA 2AV LCD Board Work for 50Pin and 60Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:90mm x 70mm x 12mm
  • 7"HSD070IDW1 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 ×104×5.4 (H×V×D)
    Display Area 153.6 × 86.64 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA+AV LCD Controller Board VS-TY5060-V1
    1× 7inch HSD070IDW1 800X480 LCD With Touch Panel VS070TP-A7
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
