Model NO.
K001000 KYV-N2 V6+ZJ050NA-08C
Quantity:

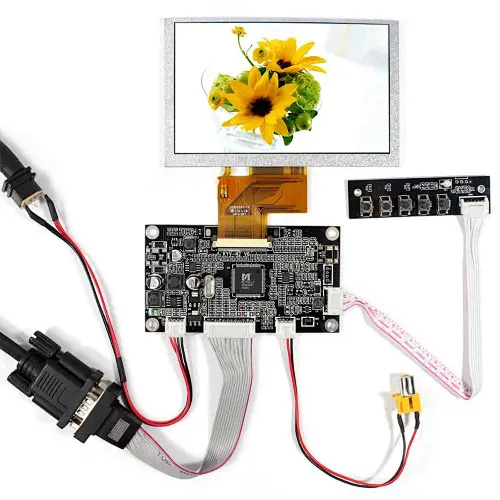

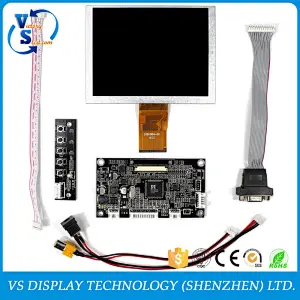

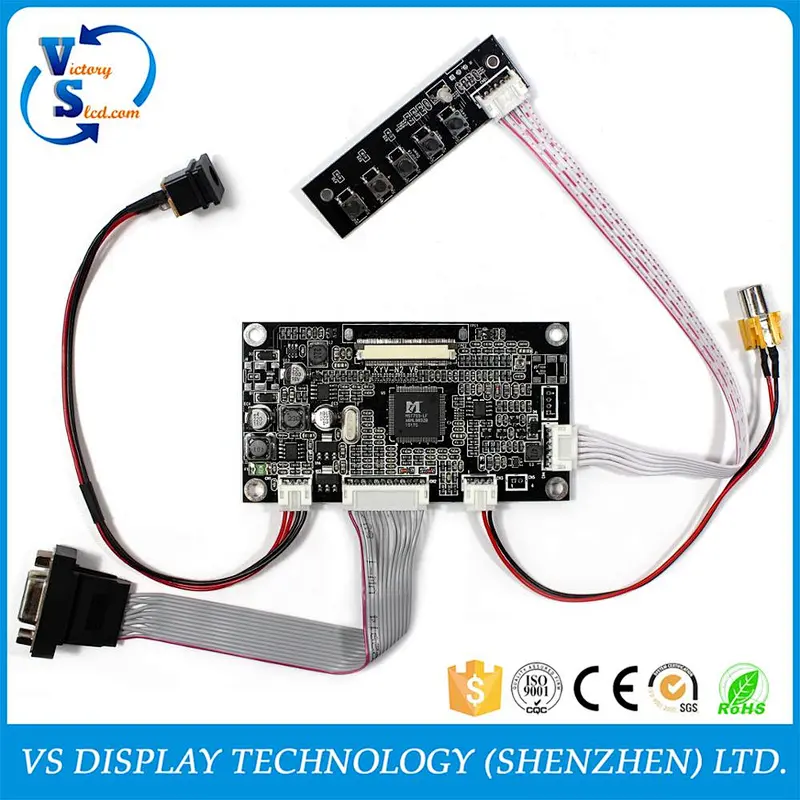

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:100mm x 55mm x 10mm
  • 5"ZJ050NA-08C 640X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 640RGB)×480
    Outline Size 117.65 × 88.43×5.9 (H×V×D)
    Display Area 101.76 × 76.32 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface 50 pins   Parallel RGB (1 ch, 8-bit) , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V6
    1× 5inch ZJ050NA-08C 640X480 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
