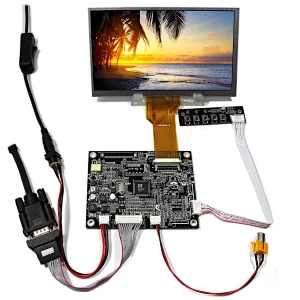

VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel
VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel

VGA AV Reversing LCD Controller board with 7inch 800x480 LCD panel

Model NO.
K000198 KYV-N2 V1+AT070TN92
Quantity:

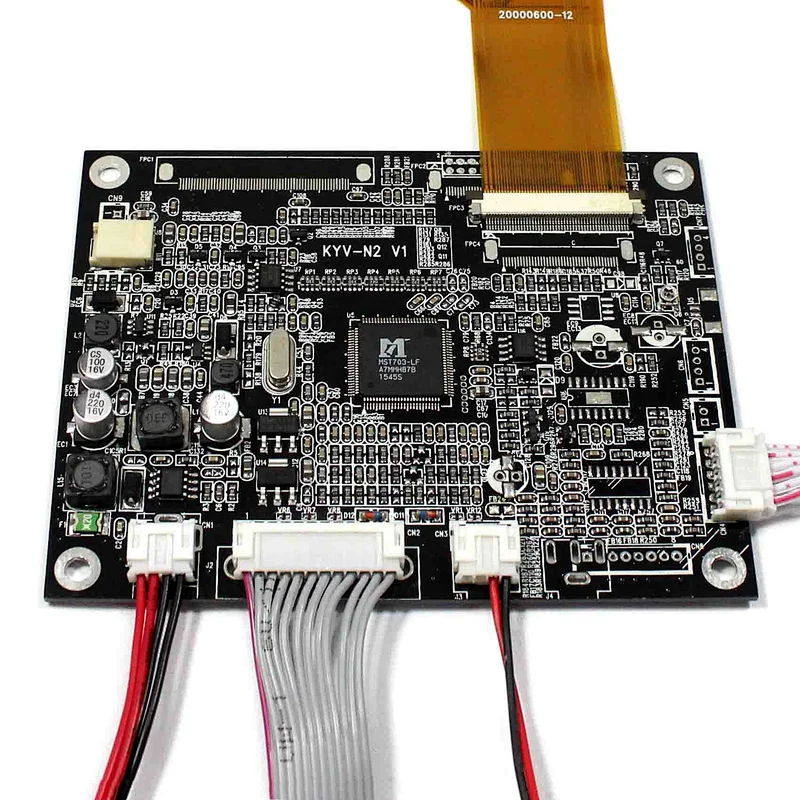

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

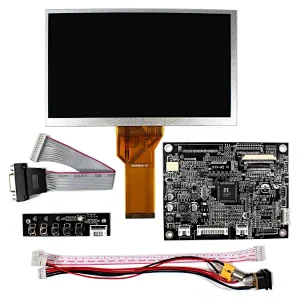

  • Packing list :
    1× VGA AV LCD Controller Board KYV-N2 V1
    1× 7inch AT070TN92 800X480 LCD LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
