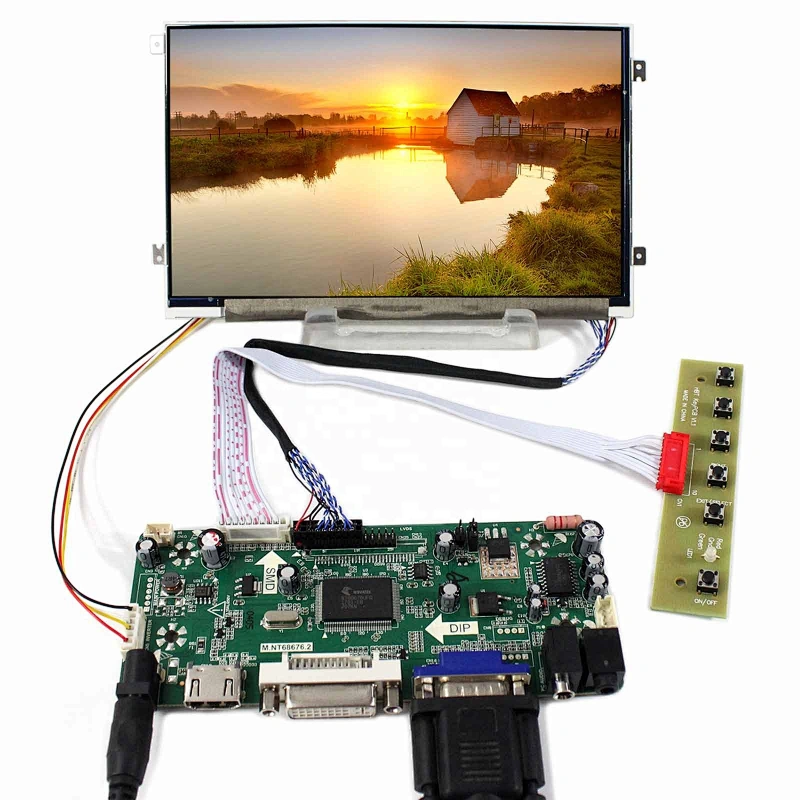

VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel
VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel

VGA DVI AUDIO LCD controller board with 7inch 1024X600 tft lcd panel

Model NO.
K001223 M.NT68676+HV070WS1-105
Quantity:

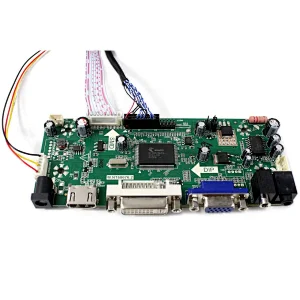

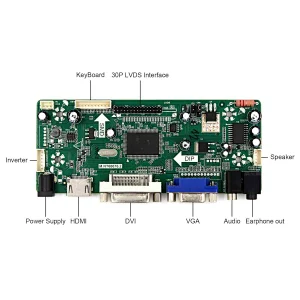

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 7"HV070WS1-105 1024X600 LCD Screen:
    Display Mode ADS, Normally Black, Transmissive
    Resolution 1024（RGB)×600
    Outline Size 163.6 × 102.9×2.67(H×V×D)
    Display Area 153.6× 90 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 8-bit) + SPI , 30 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

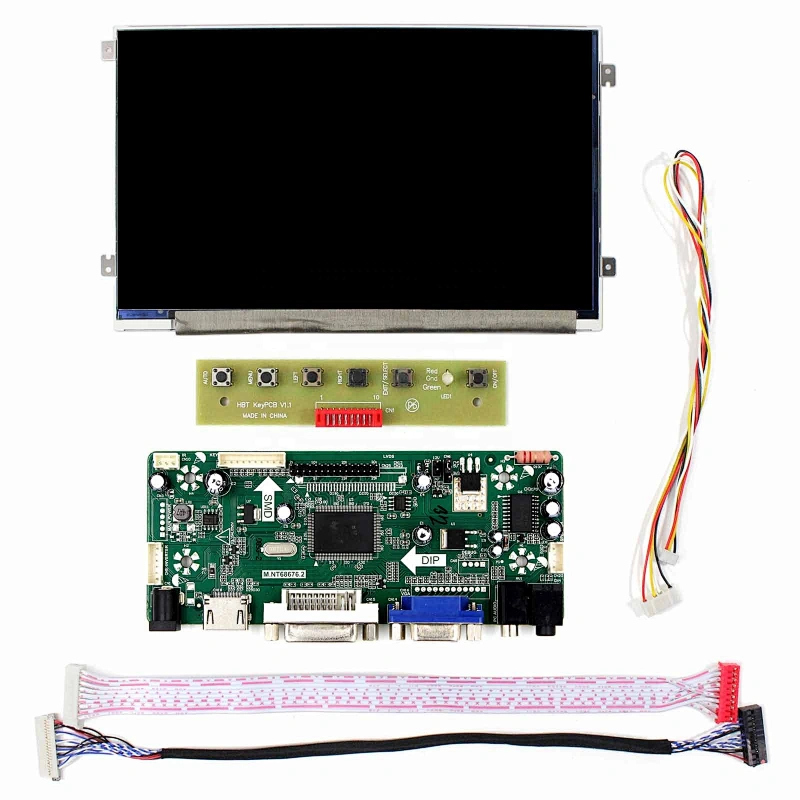

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 7inch HV070WS1-105 1024X600 LCD Screen
    1× Tcon Board
    1× LVDS Cable
    1× Keyboard With Cable
