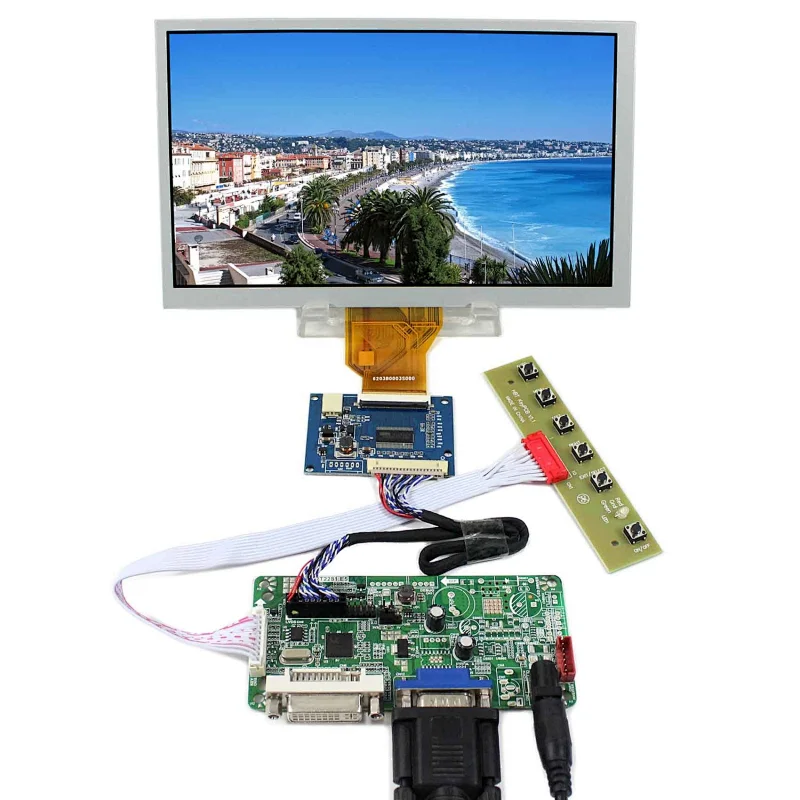

VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen
VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen

VGA DVI LCD Controller Board 8inch 800x480 RT2281 AT080TN64 LCD Screen

Model NO.
K000837 RT2281+AT080TN64+VS-TCON50-V1
Quantity:

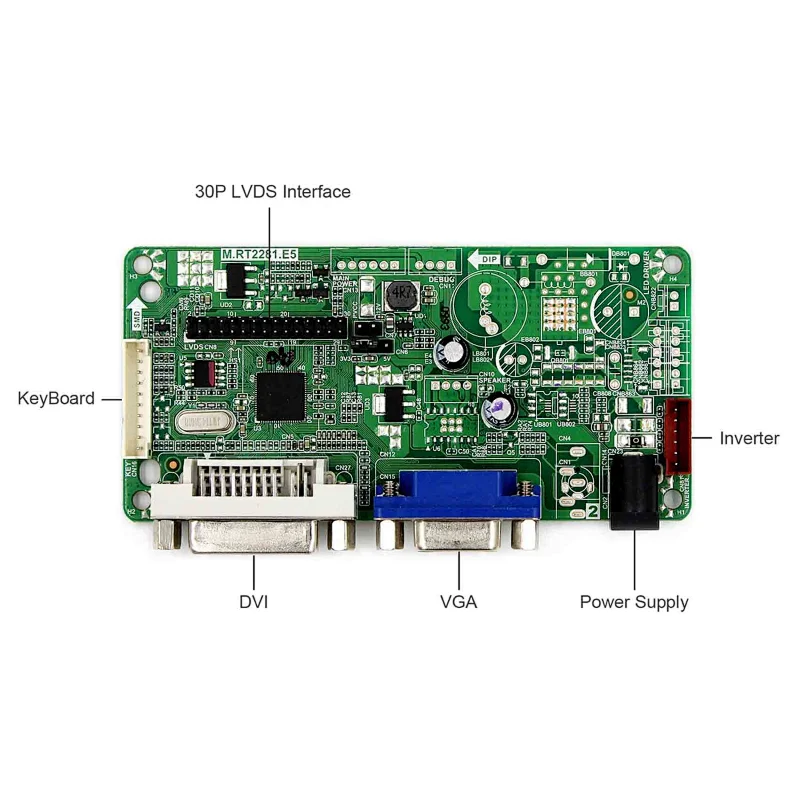

  • LCD Controller Board:
    DVI VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: DVI VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 8"AT080TN64 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 192.6 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

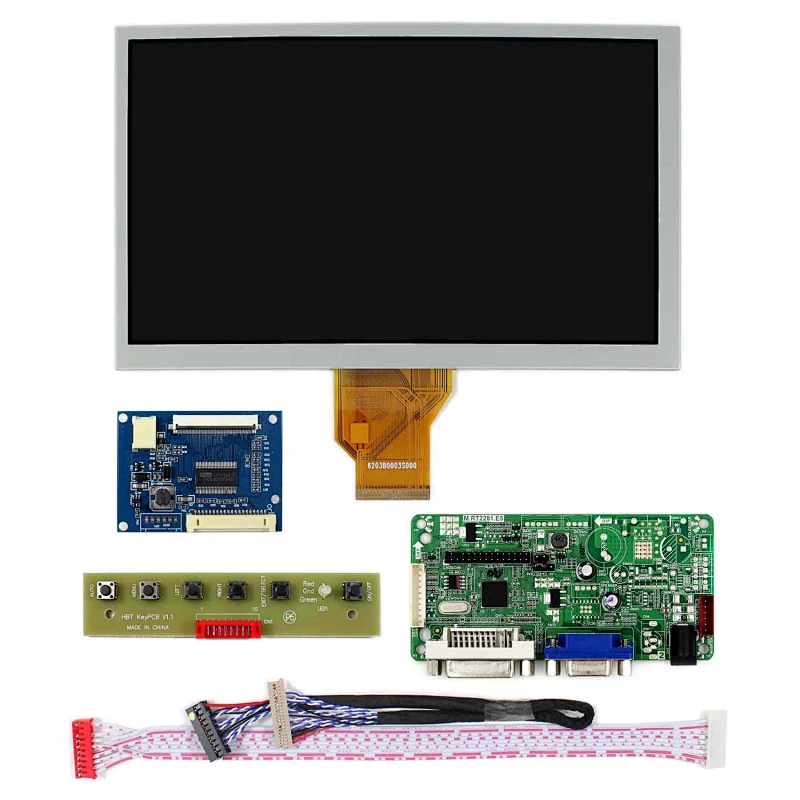

  • Packing list :
    1× VGA+DVI LCD Controller Board RT2281
    1× 8inch AT080TN64 800X480 LCD Screen
    1× LVDS Cable

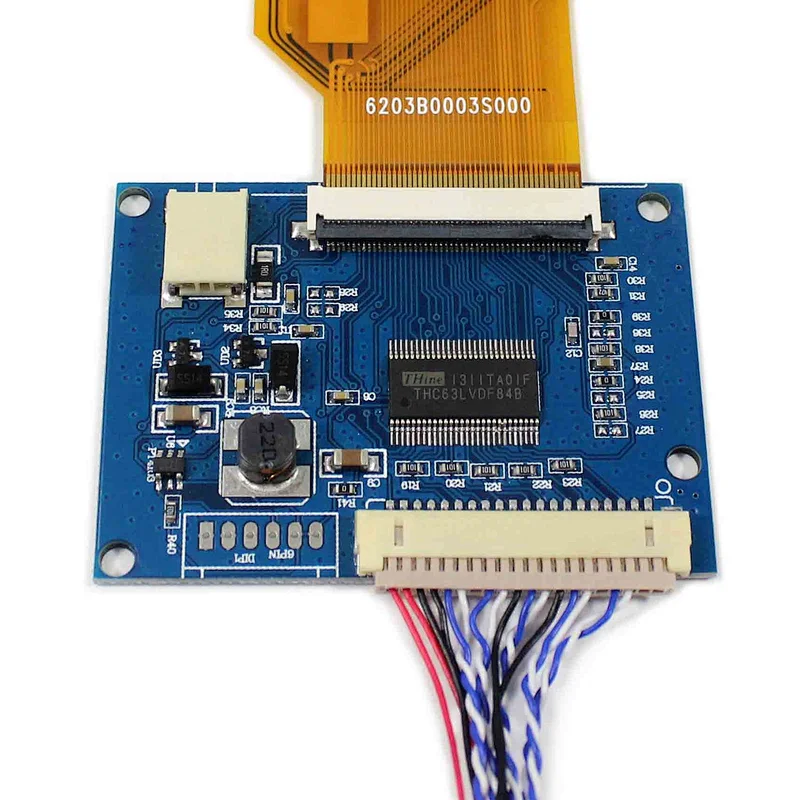

    1× Tcon Board VS-TCON50-V1
    1× Keyboard With Cable
