Model NO.
K000389 2281+LP173WF1 17.3 1920X1080
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Supply Ability:
1000.0 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • LCD Controller Board:DVI VGA input
  • Power Adapter:12v,2a
  • LCD Size:17.3 Inch
  • Resolution:1920*1080
  • Interface:LVDS
  • Backlight:WLED
  • FPC:40pins
  • Product Name:tft lcd with driver board
  • Brightness:220 Cd/m2
  • Place of Origin:CN;GUA
  • Display Size:17.3inch
  • Model Number:K000389 2281+LP173WF1 17.3 1920X1080
  • Brand Name:VS

VGA DVI LCD Controller Board with 17.3inch 1920x1080 LED 40Pin LCD Panel

LCD Panel One of LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 HSD173PUW1

Product Description

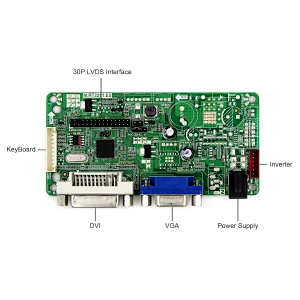

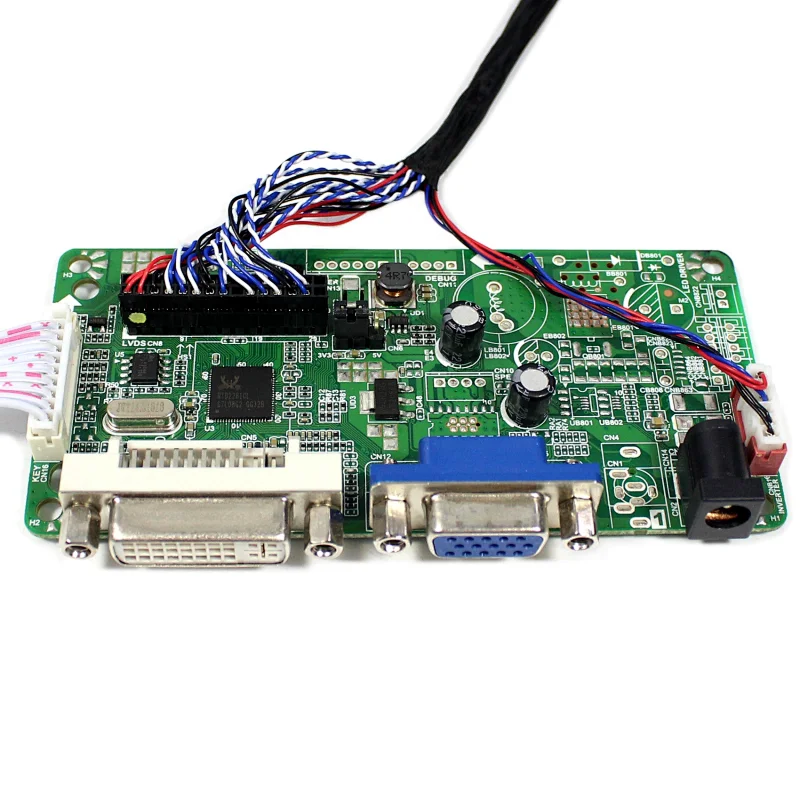

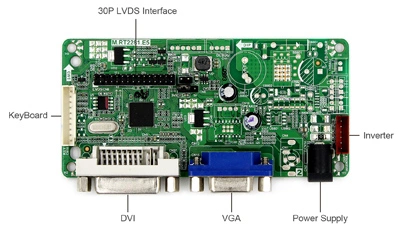

LCD Controller Board RT2281:

K001717(3)-4

It supports LED/LCD panels which resolution is up to 1920x1080

Size: 107mm(L)*51.5mm(W)*18mm(H)

Input Power Adapter: 12Vdc More than 2A

VIDEO INPUT: VGA+DVI

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

Standby Power Consumption < 0.2W(Board Only)

Panel Interface: Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

17.3"1920X1080 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920RGB)×1080

Outline Size 398.1 ×232.8×6(H×V×D)

Display Area 381.89 × 241.81 (H×V)

Brightness 220 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface
LVDS (2 ch, 6-bit) , Connector , 40 pins

Backlight LED

Input Voltage 3.3V (Typ.)

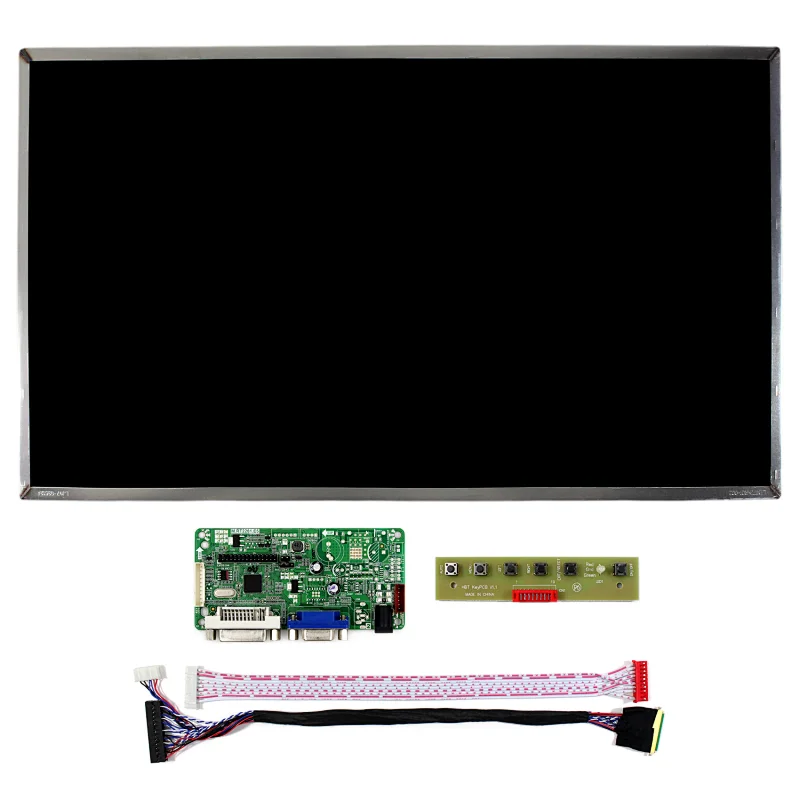

Packaging & Shipping

K001641 (6)

1× LCD Controller Board RT2281

1× 17.3inch 1920x1080 LCD panel

1× 40pins 2ch 6bit LVDS Cable

1× Keyboard with Wire

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
