VGA DVI LCD Controller Board with 8.4" 640x480 AA084VC03 Backlight 2CCFL lcd screen

Model NO.
K001280 RT2281+AA084VC03
Minimum order quantity:
2
Quantity:

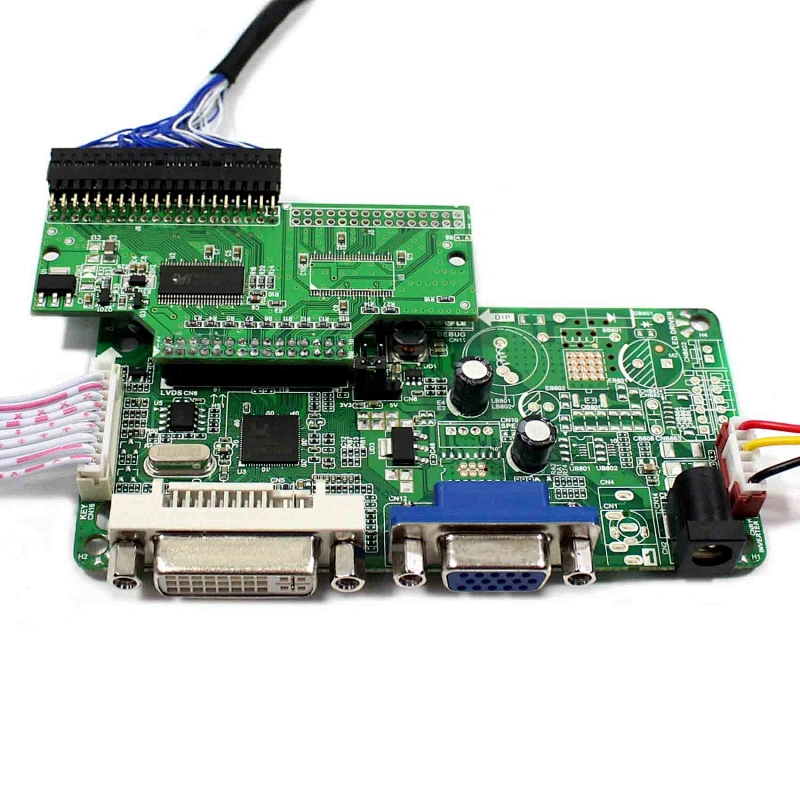

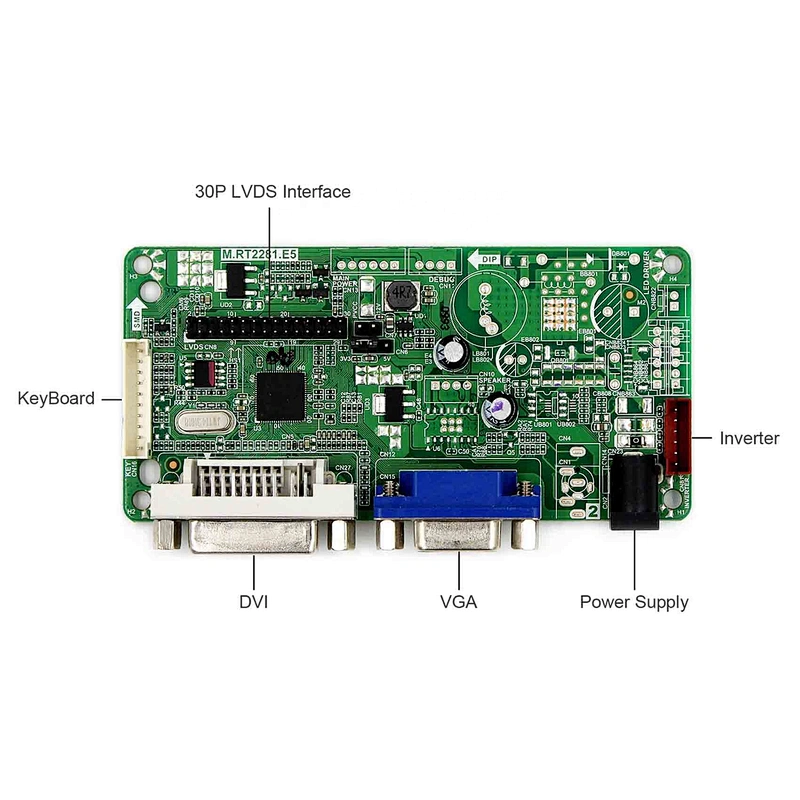

  • LCD Controller Board:
    DVI VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: DVI VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm

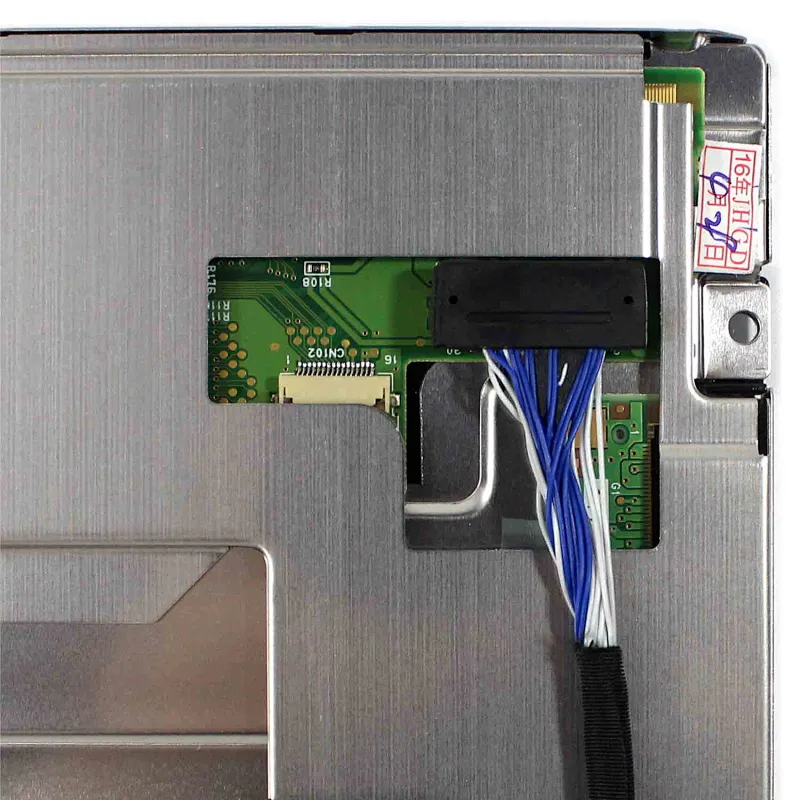

  • 8.4"AA084VC03 640X480 LCD Screen:
    Display Mode HS-IPS, Normally Black, Transmissive
    Resolution 640（RGB)×480
    Outline Size 199.5 ×149×12(H×V×D)
    Display Area 170.88 × 128.16 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 450:1 (Typ.) (TM)
    Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface CMOS (1 ch, 6-bit) , Connector , 31 pins
    Backlight 2 CCFL
    Input Voltage 3.3V (Typ.)

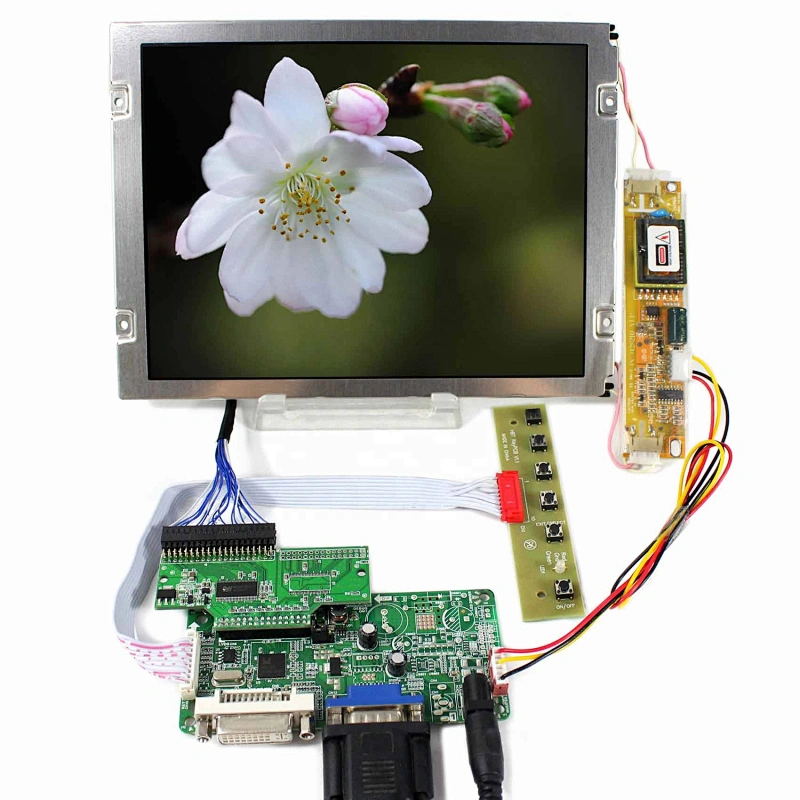

  • Packing list :
    1× VGA+DVI LCD Controller Board RT2281
    1× 8.4inch AA084VC03 640X480 LCD Screen
    1× Converter Board
    1× Inverter Board
    1× LVDS Cable
    1× Keyboard With Cable
