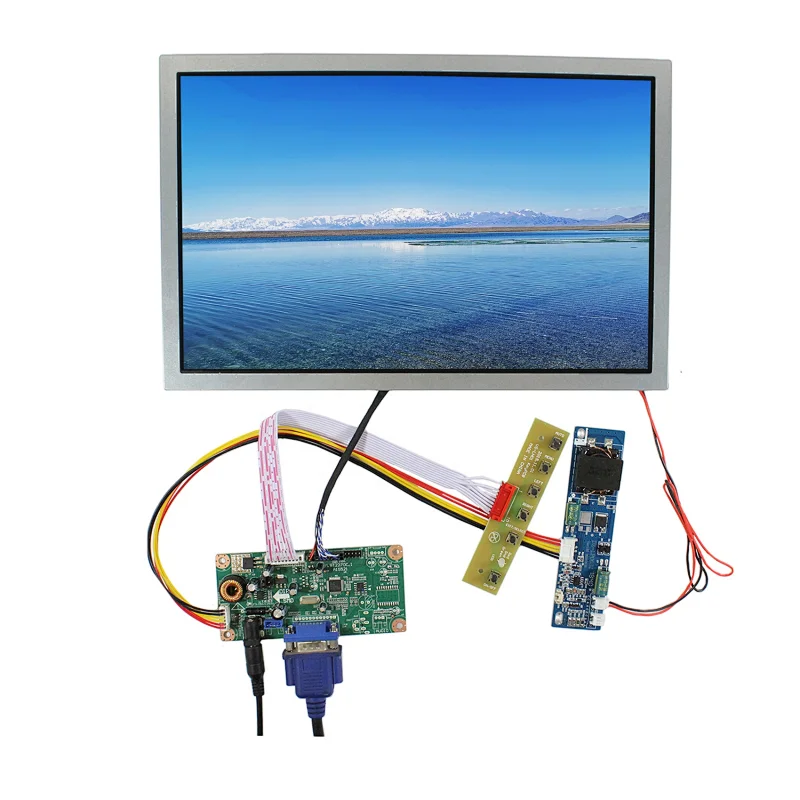

VGA LCD Controller Board RT2270C-A with 1000units 12.1inch lcd screen

VGA LCD Controller Board RT2270C-A with 1000units 12.1inch lcd screen

Model NO.:: K002667 RT2270C-A+AA121TD02
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1
Country of Origin:: CHINA
Stock Time:: 3-7days Days

Quantity:

Product Description
Application Description

Size:12.1inch
Part No:AA121TD02
Resolution:1280x800
Outline Size:283x 185.1x10(HxVxD)
Brightness:1000 cd
Contrast Ratio:700:1
Signal Interface:LVDS (1 ch, 6-bit) , 20 pins , Connector
Input Voltage:3.3V
Board Part no:RT2270C-A
Board Singal:VGA LCD Controller Board
Place of Origin:CN;GUA
Type:TFT LCD with Board
Display Size:12.1inch
Supplier Type:Manufacture
Model Number:K002667 RT2270C-A+AA121TD02
Brand Name:VS

Products Show

Product Description

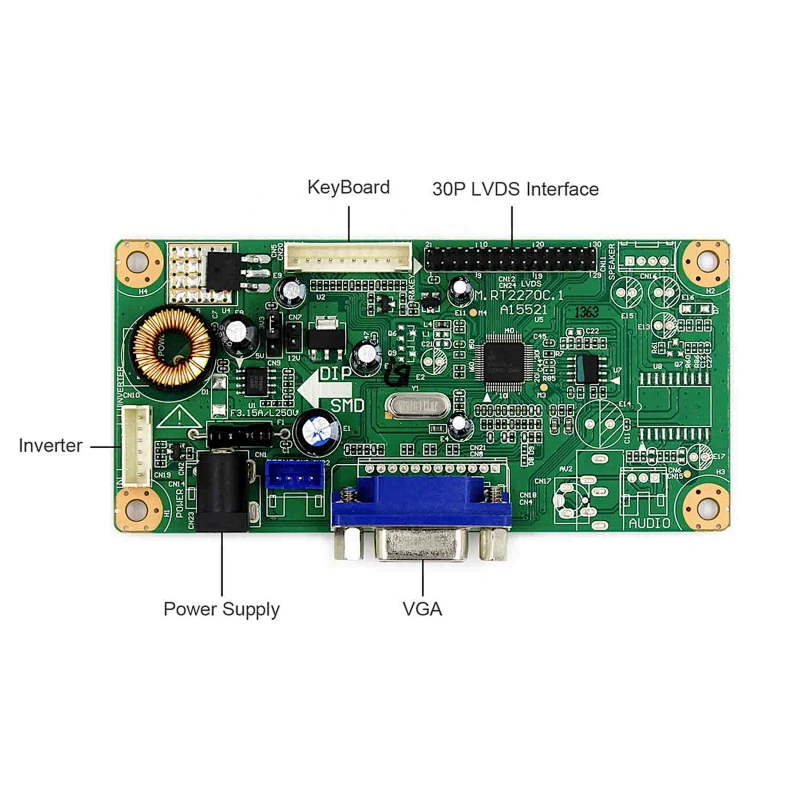

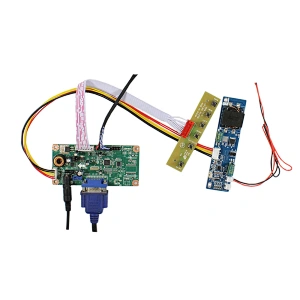

Product name:	VGA LCD Controller Board RT2270C-A

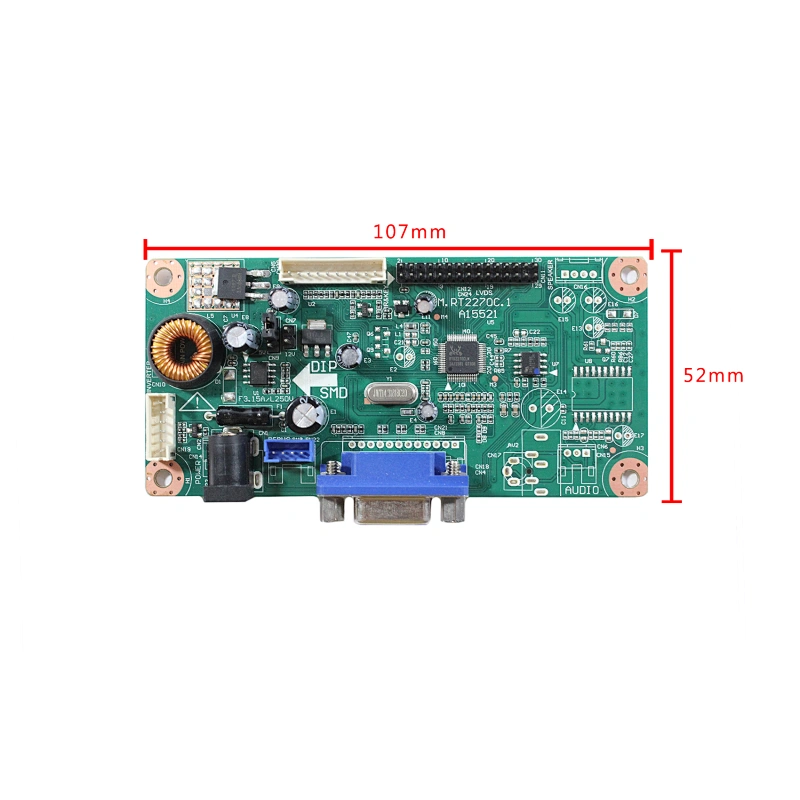

Details:	VGA LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:107mm x 52mm x 18mm

Product Name:	12.1"AA121TD02 1280X800 LCD Screen
Details:	Display Mode TN, Normally White, Transmissive Resolution 1280RGB)×800 Outline Size 283× 185.1×10(H×V×D) Display Area 216.12 × 163.2 (H×V) Brightness 1000 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.)

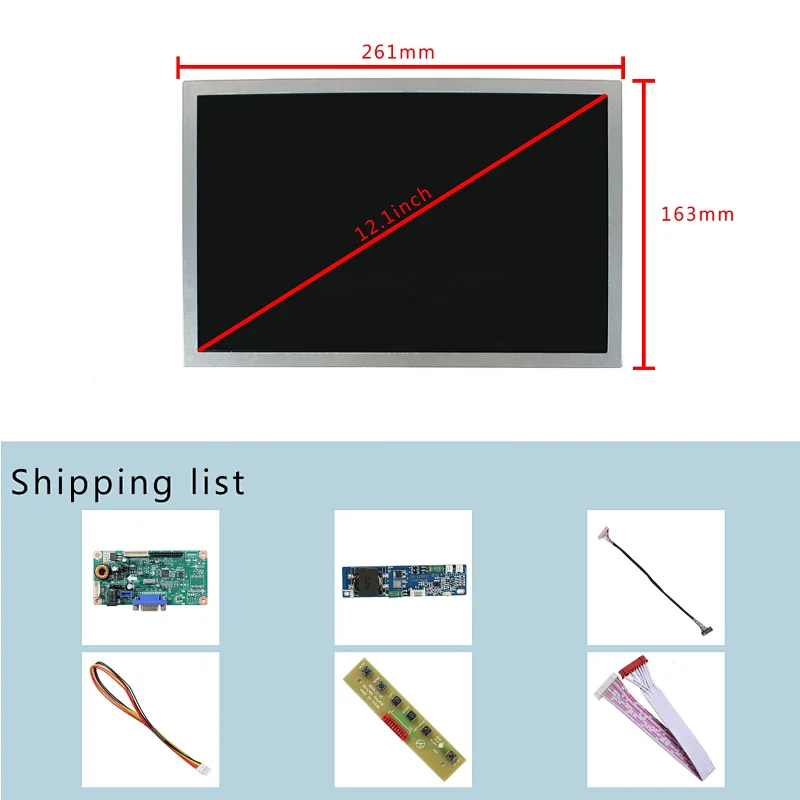

Packing list:	1× VGA LCD Controller Board RT2270C-A 1× 12.1inch AA121TD02 1280x800 LCD Screen 1× Inverter Board 1× LVDS Cable 1× Keyboard With Cable

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size :10.4"

Resolution :800RGB)×600

Outline Size :236 × 174.3×4.9 (H×V×D)mm

Brightness :500 cd/m² (Typ.)

Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)
