Model NO.
K000409 RT2270C-A +TCON+AT070TN92
Quantity:

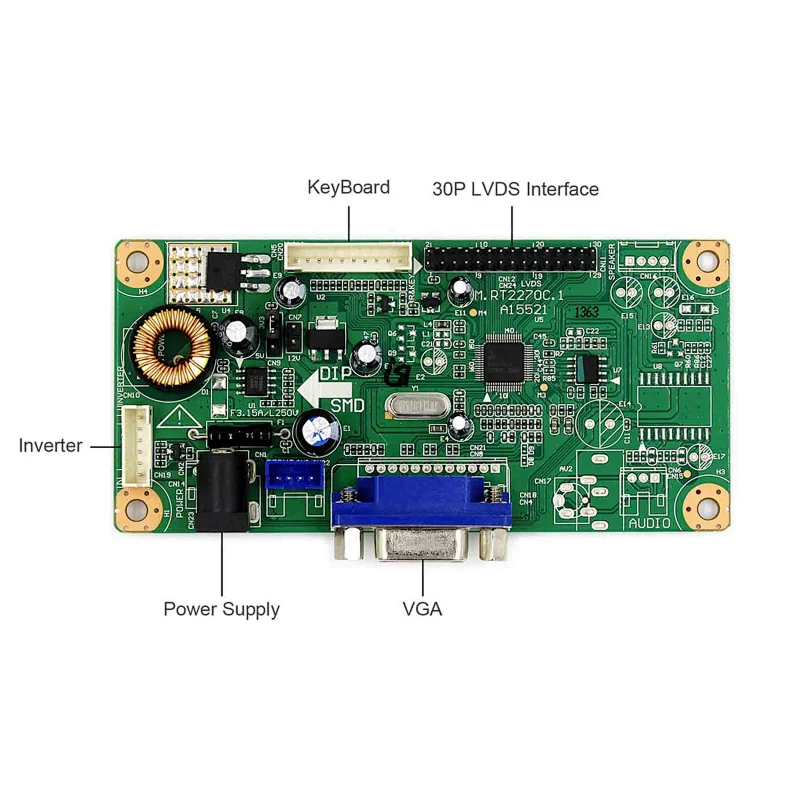

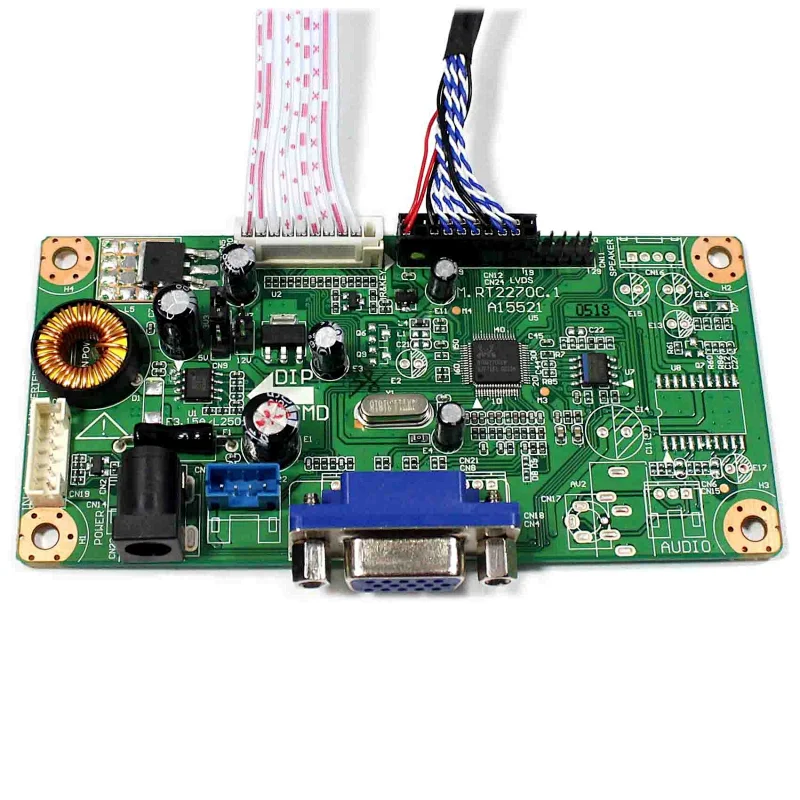

  • LCD Controller Board:
    VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:107mm x 52mm x 18mm
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

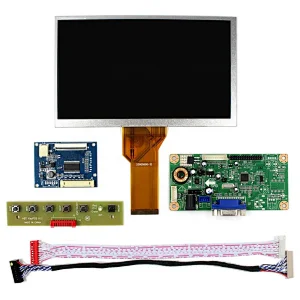

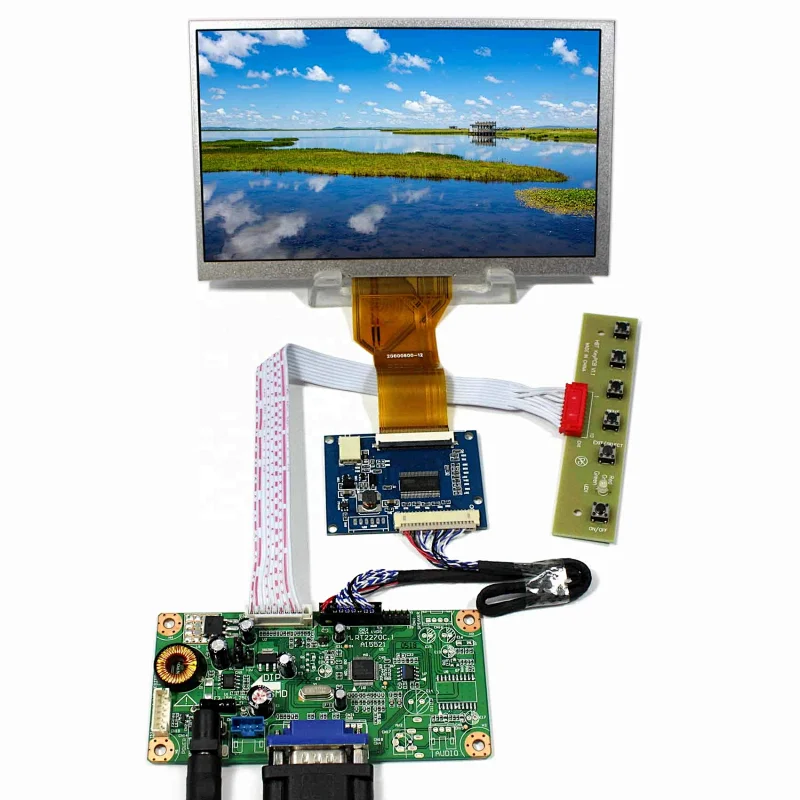

  • Packing list :
    1× VGA LCD Controller Board RT2270C-A
    1× 7inch AT070TN92 800X480 LCD LCD Screen
    1× Tcon Board VS-TCON50-V1
    1× LVDS Cable
    1× Keyboard With Cable
