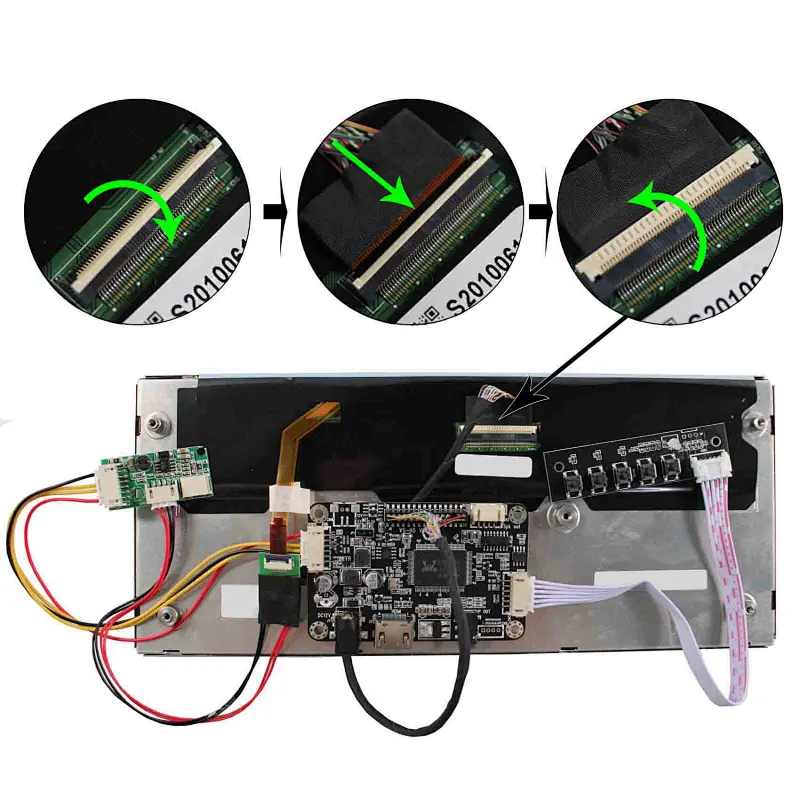

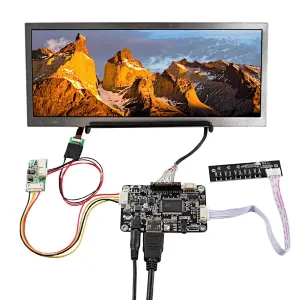

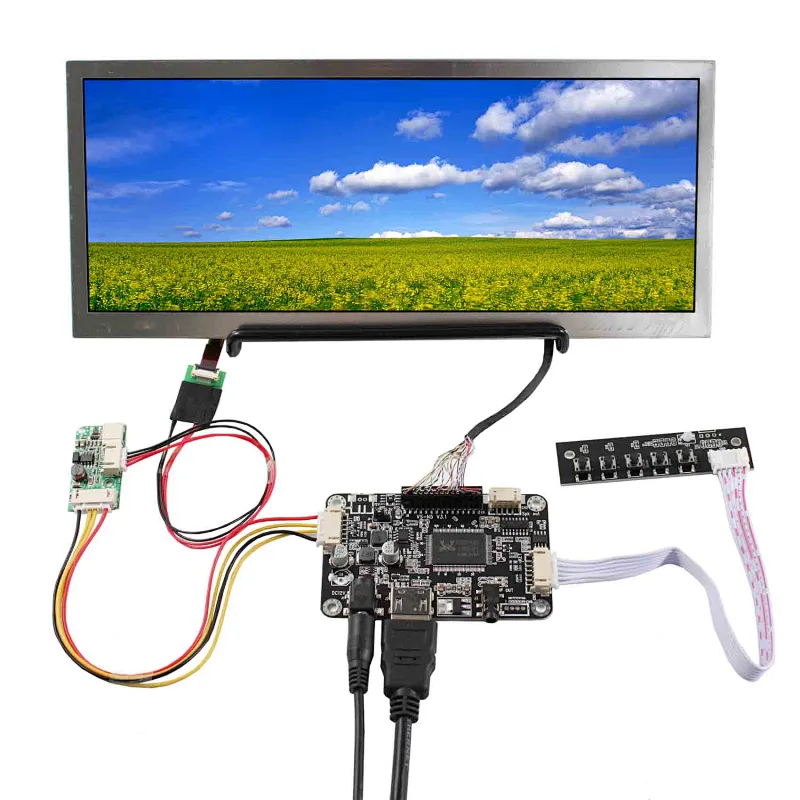

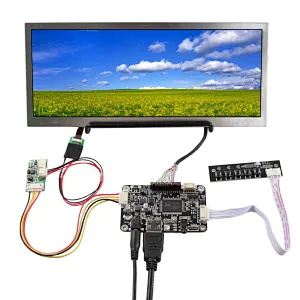

10.3" VSD103IA-01E HSD103KPW2-A10 1920X720 LCD Screen with HDMI Audio controller board

Model NO.
K002855 VS-N5V3.1H+HSD103KPW2-A10 DJ103IN-03B JJ103IAA7B 1920X720
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm

10.3"VSD103IA-01EHSD103KPW2-A10 1920X720 LCD Screen:
DisplayNew Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×720
Outline Size 259.8×112×15.7(H×V×D)
Display Area 243.6×91.4 (H×V)
Brightness 850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight 9S4P WLED
Input Voltage 3.3V (Typ.)


Packing list:
1×HD-MI Audio LCD Controller Board VS-N5 V3
1×10.3"VSD103IA-01E HSD103KPW2-A10 1920X720 LCD Screen

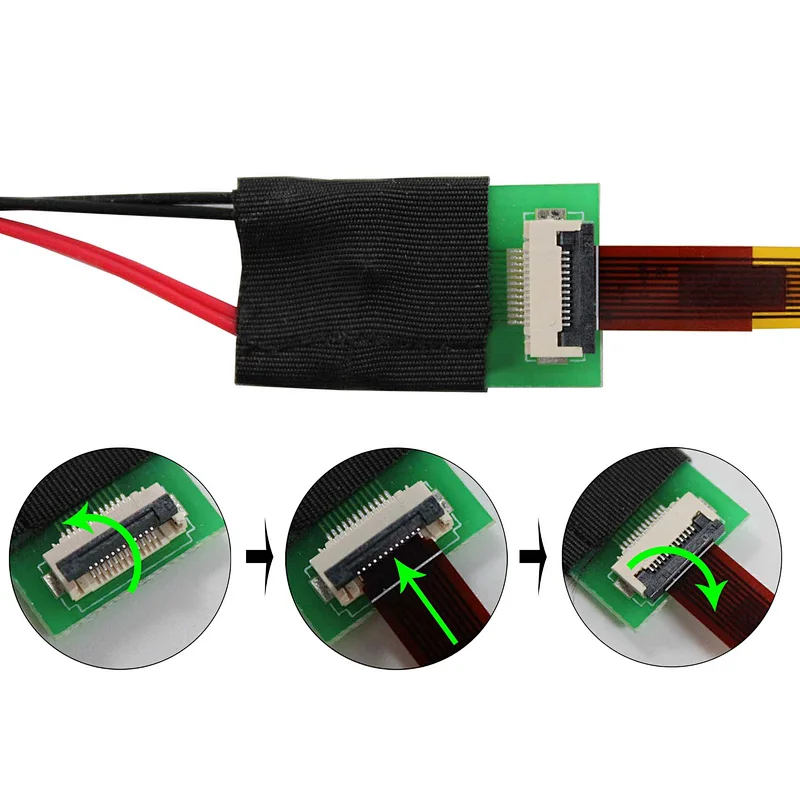

1× Converter Board
1× Signal Cable
1× Keyboard With Cable
