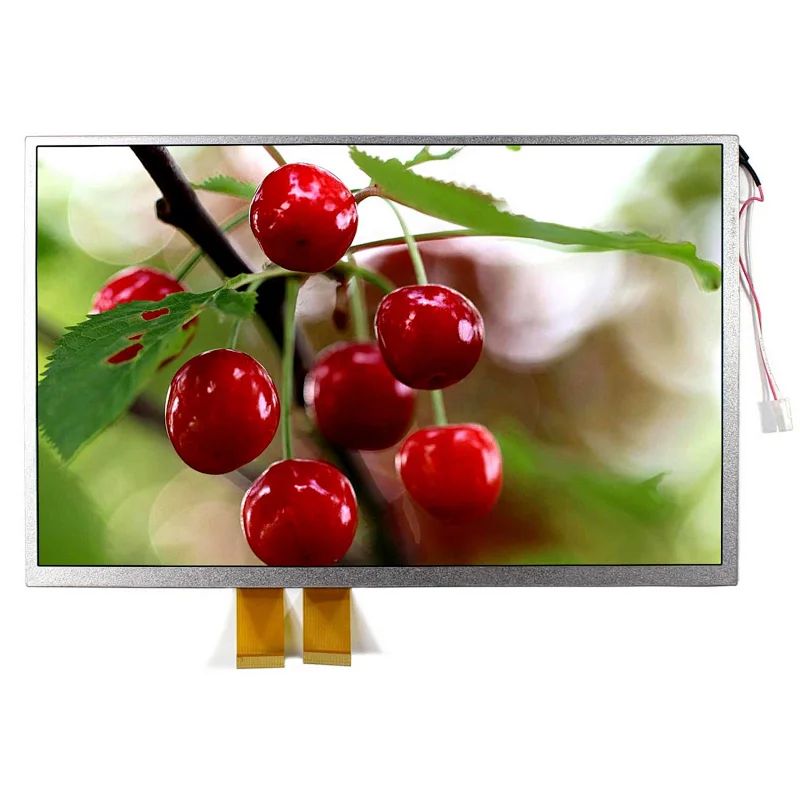

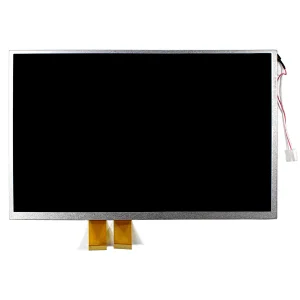

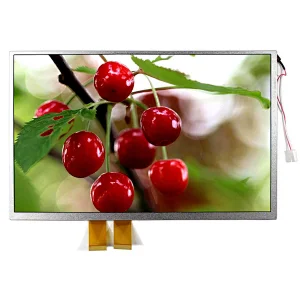

10.2 inch TFT LCD Display AT102TN03V.9 800x480 10.2inch TFT LCD Screen
A000013 AT102TN03 V.9
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Buy Now
Contact Now
add to cart
- 7.84inch LCD Monitor
- 8.8inch LCD Monitor
- 9.1inch LCD Monitor
- 10.3inch LCD Monitor
- 12.3inch LCD Monitor
- 12.6inch LCD Monitor
- 12.7inch LCD Monitor
- 14inch LCD Monitor
- 14.5inch LCD Monitor
- 14.9inch LCD Monitor
- 16.3inch LCD Monitor
- 16.6inch LCD Monitor
- 19inch LCD Monitor
- 24inch LCD Monitor
- 28inch LCD Monitor
- 28.6inch LCD Monitor
- IP65 Industrial LCD Monitor
- 2.1inch LCD Kit
- 2.28inch LCD Kit
- 3.17inch LCD Kit
- 3.4inch LCD Kit
- 3.5inch LCD Kit
- 3.95inch LCD Kit
- 3.99inch LCD Kit
- 4inch LCD Kit
- 4.3inch LCD Kit
- 4.58inch LCD Kit
- 4.82inch LCD Kit
- 5.0inch LCD Kit
- 5.5inch LCD Kit
- 5.6inch LCD Kit
- 5.7inch LCD Kit
- 6inch LCD Kit
- 6.2inch LCD Kit
- 6.3inch LCD Kit
- 6.5inch LCD Kit
- 6.97inch LCD Kit
- 7inch LCD Kit
- 7.8inch LCD Kit
- 7.9inch LCD Kit
- 8inch LCD Kit
- 8.4inch LCD Kit
- 8.9inch LCD Kit
- 9inch LCD Kit
- 9.1inch LCD Kit
- 9.7inch LCD Kit
- 10.1inch LCD Kit
- 10.2inch LCD Kit
- 10.4inch LCD Kit
- 10.6inch LCD Kit
- 11inch LCD Kit
- 11.6inch LCD Kit
- 12inch LCD Kit
- 12.1inch LCD Kit
- 12.3inch LCD Kit
- 12.5inch LCD Kit
- 13.3inch LCD Kit
- 14inch LCD Kit
- 14.1inch LCD Kit
- 15inch LCD Kit
- 15.4inch LCD Kit
- 15.6inch LCD Kit
- 16inch LCD Kit
- 17inch LCD Kit
- 17.3inch LCD Kit
- 18.4inch LCD Kit
- 18.5inch LCD Kit
- 19inch LCD Kit
- 20.7inch LCD Kit
- 21.5inch LCD Kit
- 23.8inch LCD Kit
- 27inch LCD Kit
- CVBS LCD Controller Board
- DP LCD Controller Board
- HDMI+DP LCD Controller Board
- HDMI+SDI+VGA+USB LCD Controller Board
- HDMI+Type-C LCD Controller Board
- HDMI+Type-C+USB LCD Controller Board
- HDMI+USB LCD Controller Board
- HDMI+VGA LCD Controller Board
- HDMI+VGA+AV LCD Controller Board
- HDMI+VGA+AV+USB LCD Controller Board
- HDMI+VGA+DP LCD Controller Board
- HDMI+VGA+DVI LCD Controller Board
- HDMI+VGA+USB LCD Controller Board
- LVDS-TTL T-Con Board
- TV+HDMI+VGA+AV+USB LCD Controller Board
- VGA LCD Controller Board
- VGA+AV LCD Controller Board
- VGA+DVI LCD Controller Board
- 3.5inch LCD Screen
- 4.3inch LCD Screen
- 5inch LCD Screen
- 5.5inch LCD Screen
- 5.6inch LCD Screen
- 6.2inch LCD Screen
- 6.5inch LCD Screen
- 7inch LCD Screen
- 8inch LCD Screen
- 8.4inch LCD Screen
- 8.9inch LCD Screen
- 9inch LCD Screen
- 9.4inch LCD Screen
- 9.7inch LCD Screen
- 10.1inch LCD Screen
- 10.2inch LCD Screen
- 10.3inch LCD Screen
- 10.4inch LCD Screen
- 11.6inch LCD Screen
- 12.1inch LCD Screen
- 12.3inch LCD Screen
- 12.5inch LCD Screen
- 12.6inch LCD Screen
- 13.3inch LCD Screen
- 14inch LCD Screen
- 15inch LCD Screen
- 15.6inch LCD Screen
- 16.7inch LCD Screen
- 17inch LCD Screen
- 17.3inch LCD Screen
- 21.5inch LCD Screen
- 23.2inch LCD Screen
- 23.8inch LCD Screen
- 27inch LCD Screen
- 28inch LCD Screen
- 28.6inch LCD Screen
- 43inch LCD Screen
10.2"AT102TN03 800X480 LCD Display Panels:
Display Mode TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 235 × 145.8×6.3(H×V×D)
Display Area 222× 132.4 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 65/65/45/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode TN, Normally White, Transmissive
Resolution 800（RGB)×480
Outline Size 235 × 145.8×6.3(H×V×D)
Display Area 222× 132.4 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 65/65/45/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× 10.2inch AT102TN03 800X480 Display LCD Screen
1× 10.2inch AT102TN03 800X480 Display LCD Screen
