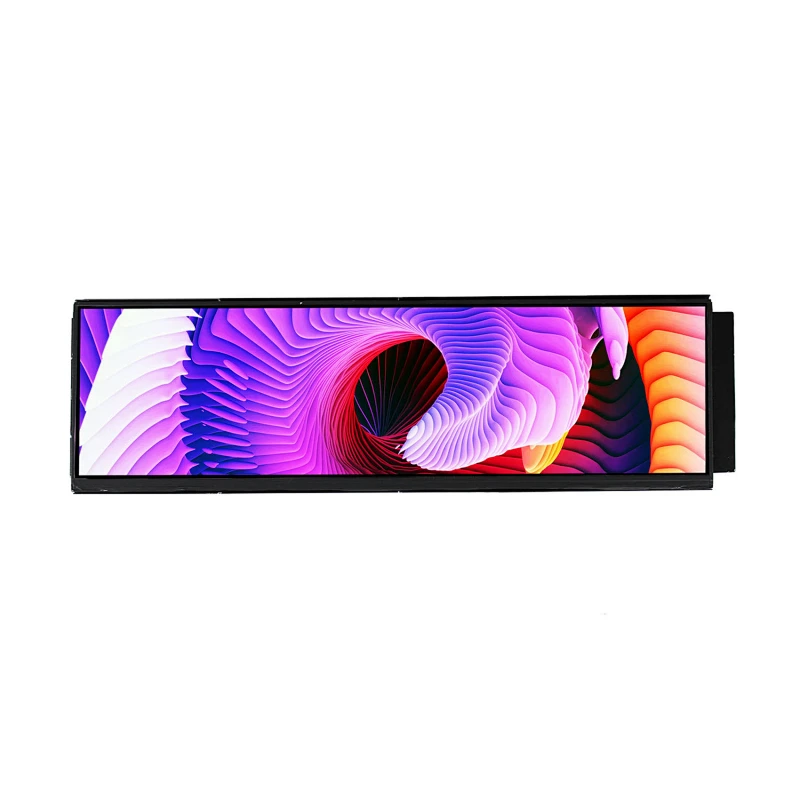

12.6inch 1920x515 LCD Kit (Included HDMI LCD Controller Board)

LCD Monitor:

Case: Metal Black

Screen Size: 12.6inch

Outline Size 315.61×94.02×5.3(H×V×D)

Display Area 309.31×82.97 (H×V)

Aspect Ratio: 15:4

Resolution 1920(RGB)×515

Screen Brightness: 400cd/m2

Contrast Ratio 1200:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Response Time: <30ms

Video Input: 2x Mini HDMI

Video Output: Speaker Earphone

Standby Model <0.3W

Operating Temperature: -10 degree to 60 degree

Storage Temperature: -30 degree to 70 degree

Weight: 0.32kg/0.72lb

Power Supply:

When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.

Micro USB output 5Vdc 500mA.

When use Micro USB as input. Power Supply Input Voltage 5Vdc.

When use 5Vdc as input. Power Supply Input current more than 2A.

When use 12Vdc as input. Power Supply Input current more than 1A.

Packing list:

1× 12.6inch 1920x515 LCD Kit (Included HDMI LCD Controller Board)

1× 4Pin SATA Power Cable (Red Cable is 12Vdc and Black Cable is GND)

1× HDMI Cable
