12.1"LCD Screen AA121TD02 1280X800 LVDS 20 Pin Lcd Display Pinout High Brightness Lcd Screen:

Display Mode:TN, Normally White, Transmissive

Resolution:1280(RGB)×800

Outline Size: 283× 185.1×10(H×V×D)mm

Display Area :216.12 × 163.2 (H×V)mm

Brightness: 1000 cd/m² (Typ.)

Contrast Ratio :700:1 (Typ.) (TM)

Viewing Angle ：80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface ：LVDS (1 ch, 6-bit) ,20 pins , Connector

Backlight ：WLED

Input Voltage： 3.3V (Typ.)

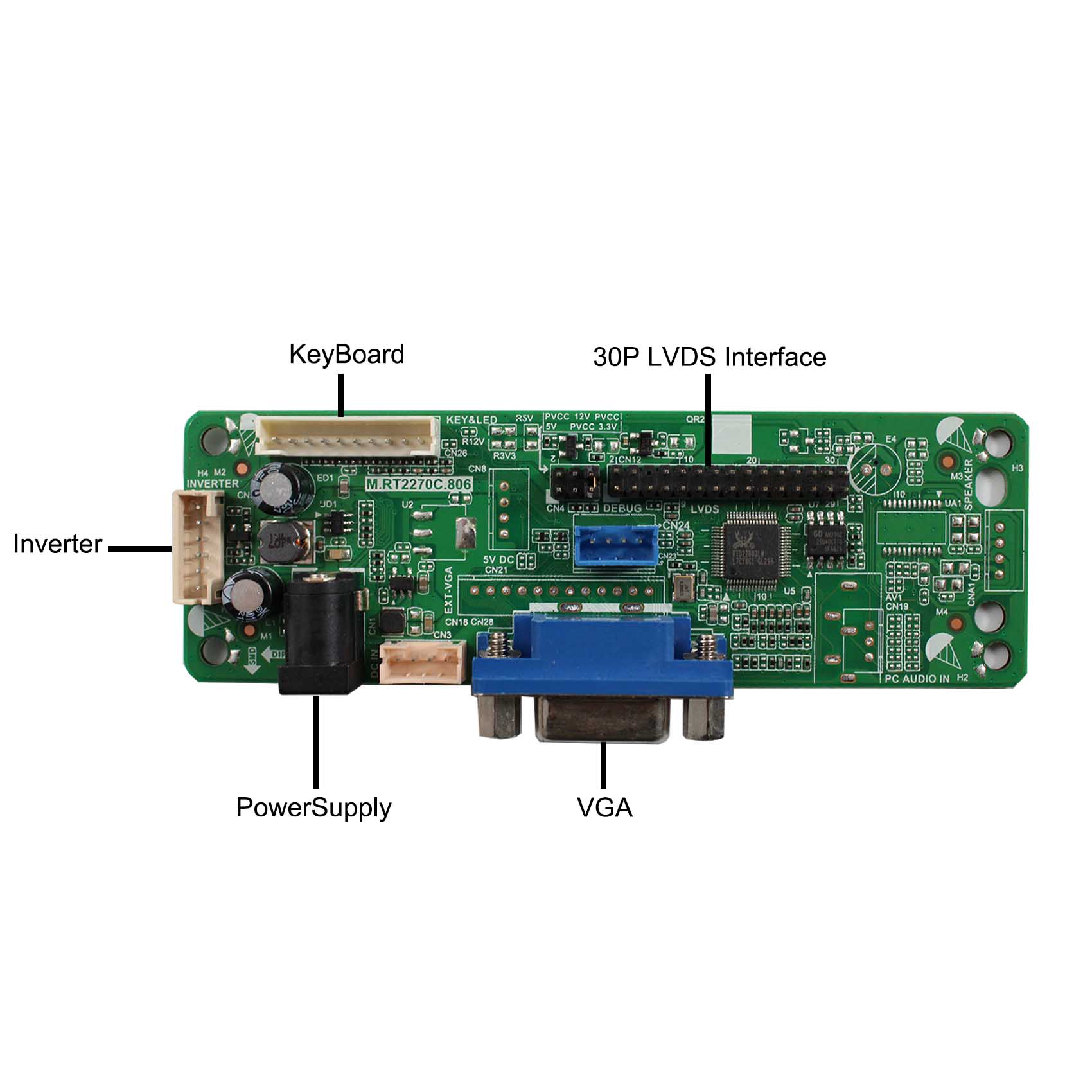

Universal LCD Driver Board:

VGA LCD Controller Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 107mm x 38mm x 18mm

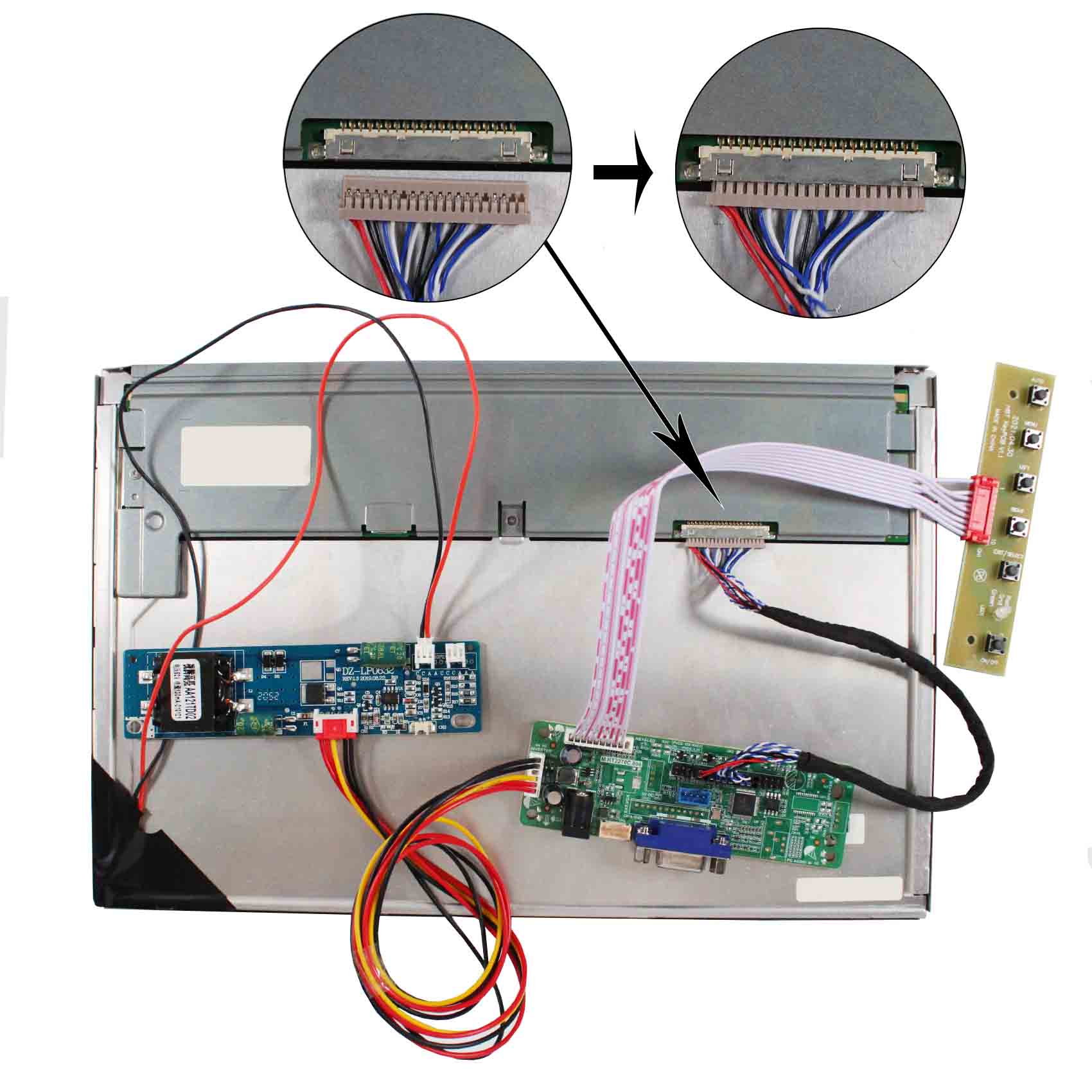

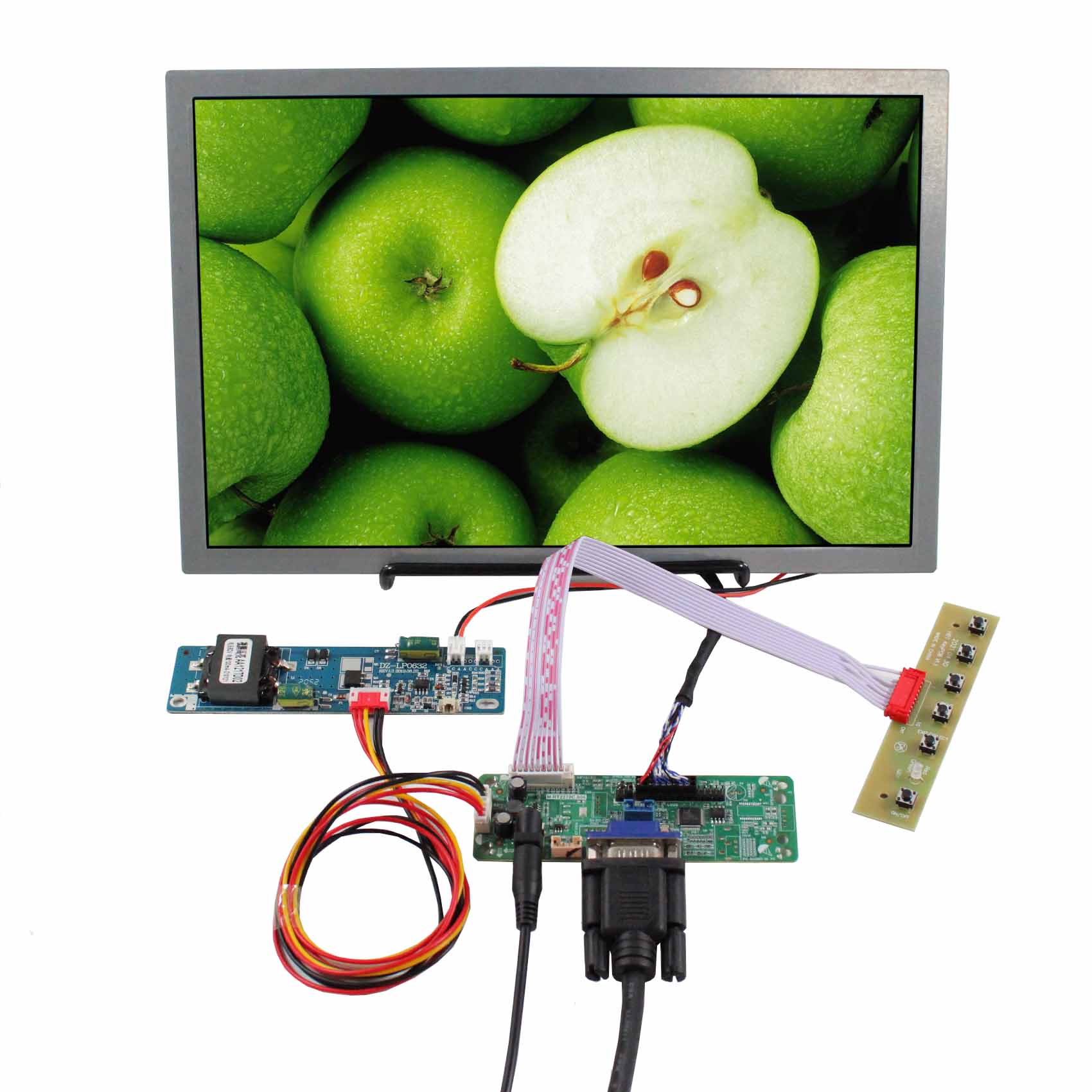

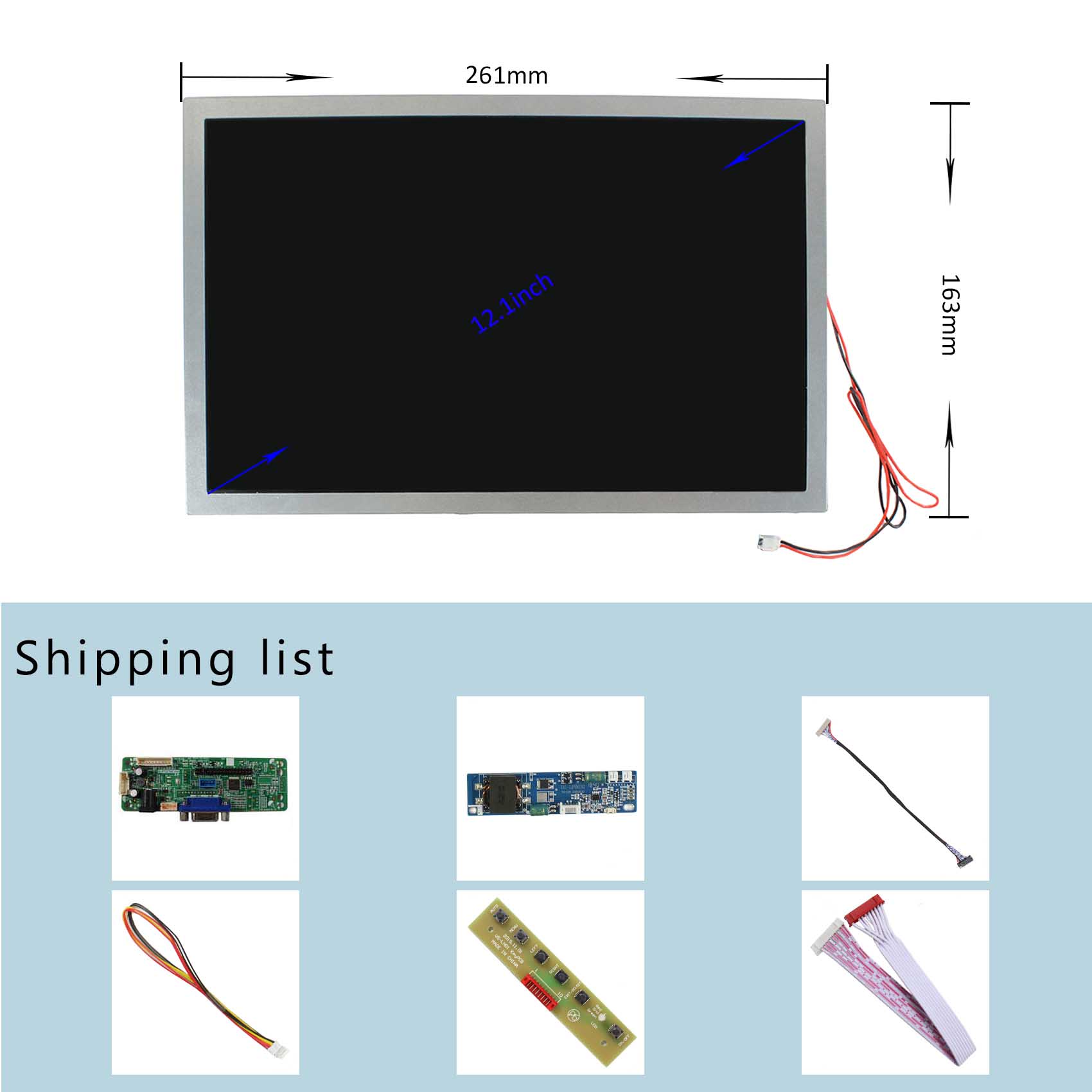

Packing list :

1× VGA LCD Controller Board RT2270C-A

1× 12.1 lcd panel AA121TD02 1280x800 1000nit LCD Screen

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable
