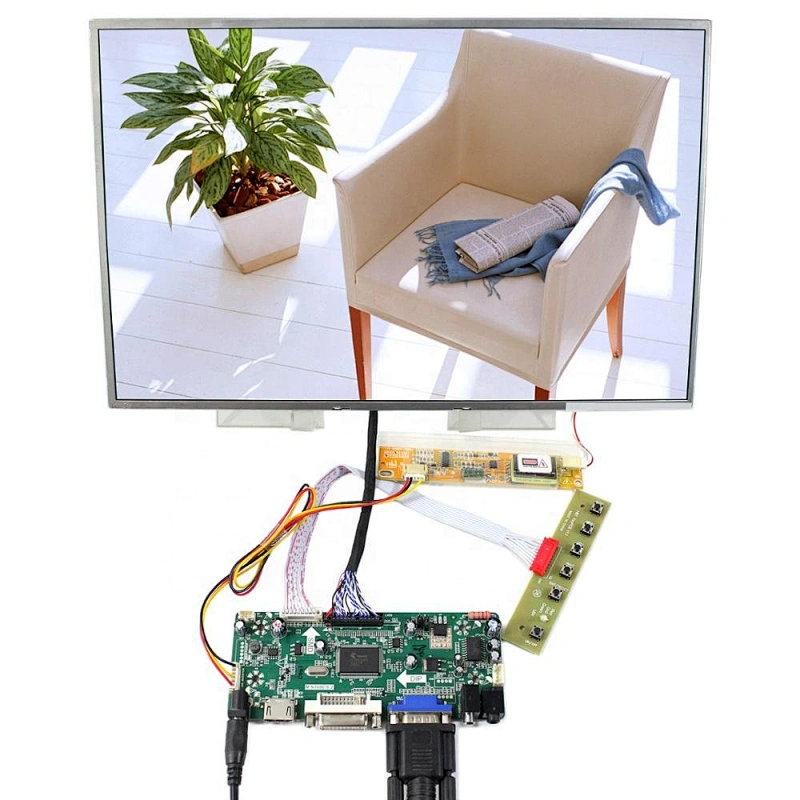

15.4" laptop lcd display with driver board

Model NO.
K000372 NT67686+B154PW02
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

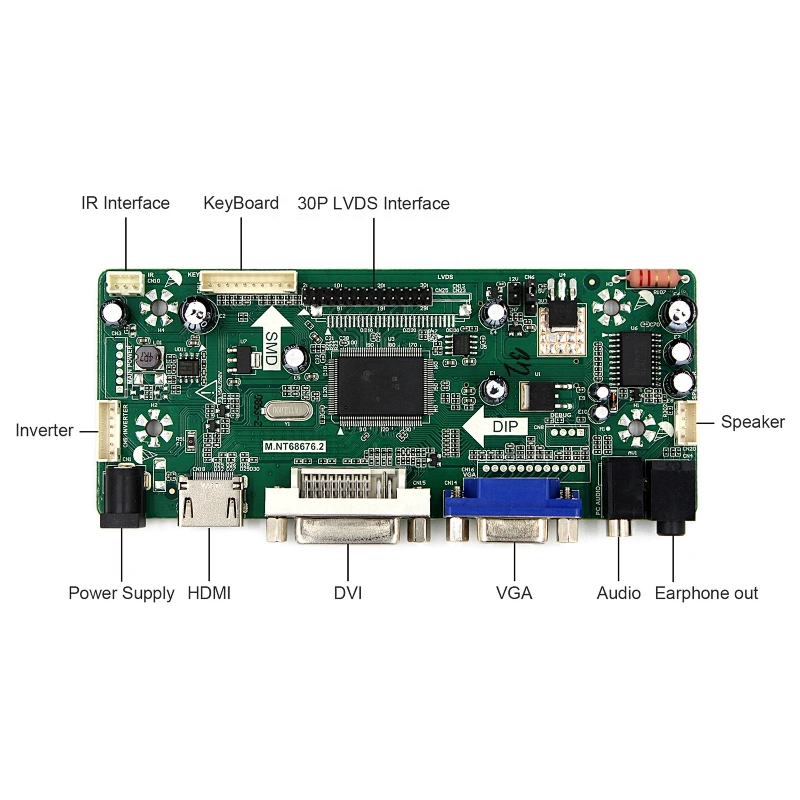

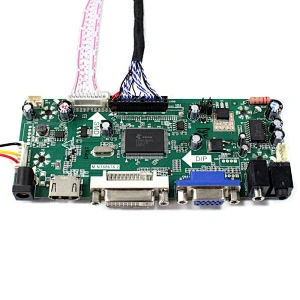

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 15.4"1440X900 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1440RGB)×900
    Outline Size 344 × 242.5× 6(H×V×D)
    Display Area 331.56× 207.225 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
    BacklightCCFL
    Input Voltage 3.3V (Typ.)

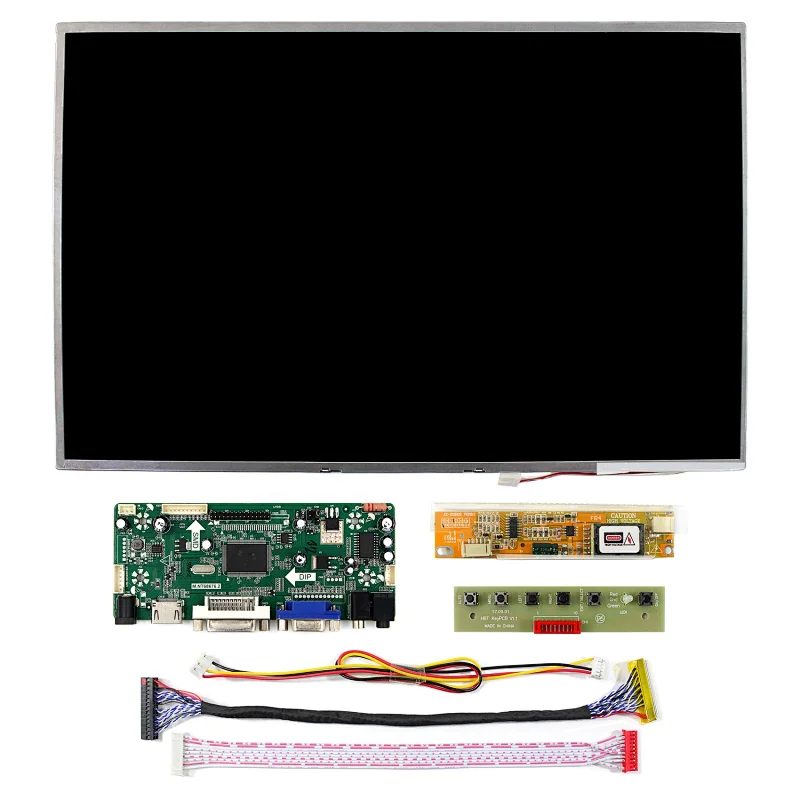

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1x 15.4inch 1440x900 LCD Screen (One of These Model No CLAA154WP05 B154PW01 B154PW02 N154C1 N154C3 LP154WP1 LTN154BT05)
    1× LVDS Cable

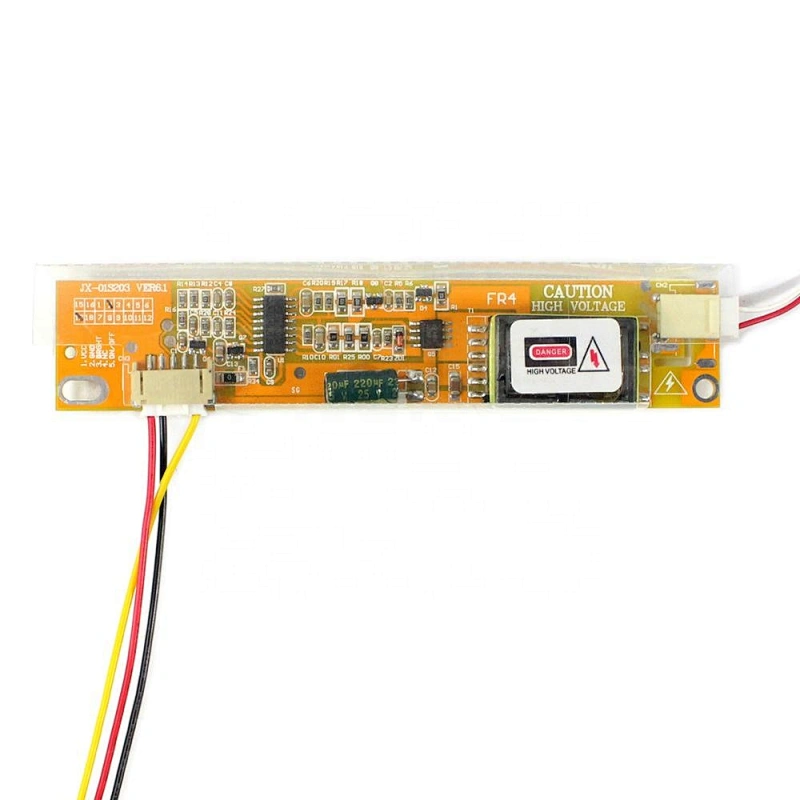

    1× Inverter Board
    1× Keyboard With Cable


Send Message

* clear input
*

Related Products

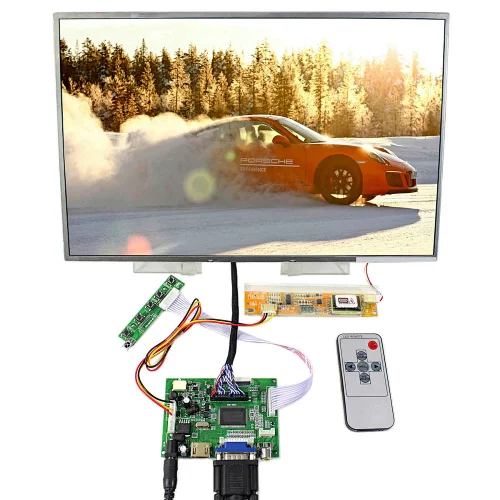

15.4inch 1280X800 LVDS 30 pins LCD Screen with HD-MI LCD Controller Board
15.4inch 1280X800 LVDS 30 pins LCD Screen with HD-MI LCD Controller Board
Model NO. K002785 VS-N5V3.1H+30p+15.4inch lcd
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board
15.4inch B154PW01 N154C3 LP154WP1 LCD Screen HDM I VGA 2AV LCD Controller Board
Model NO. K000367-VS-TY2662-V1+FIX-30P 2ch 6bit+15.4inch 1440x900

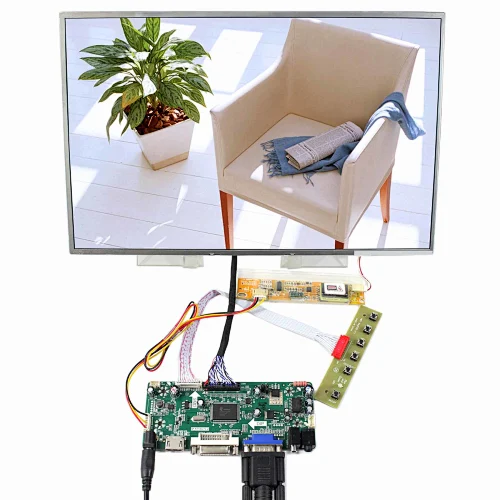

15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board
Model NO. K000368-M.NT68676.2A+FIX-30P 2ch 6bit+15.4inch 1280x800

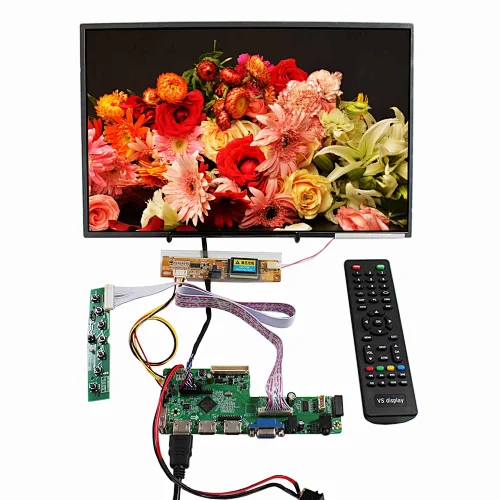

15.4inch 1280x800 LCD Screen With HDMI+VGA+2AV LCD Controller Board
15.4inch 1280x800 LCD Screen With HDMI+VGA+2AV LCD Controller Board
Model NO. K000373-VS-TY2662-V1+FIX-30P 1ch 6bit+15.4inch 1280x800

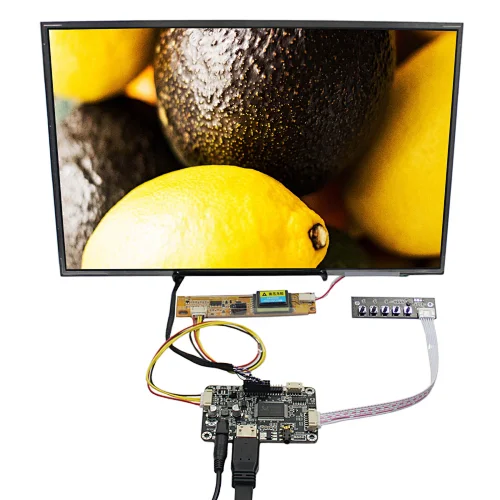

15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board
