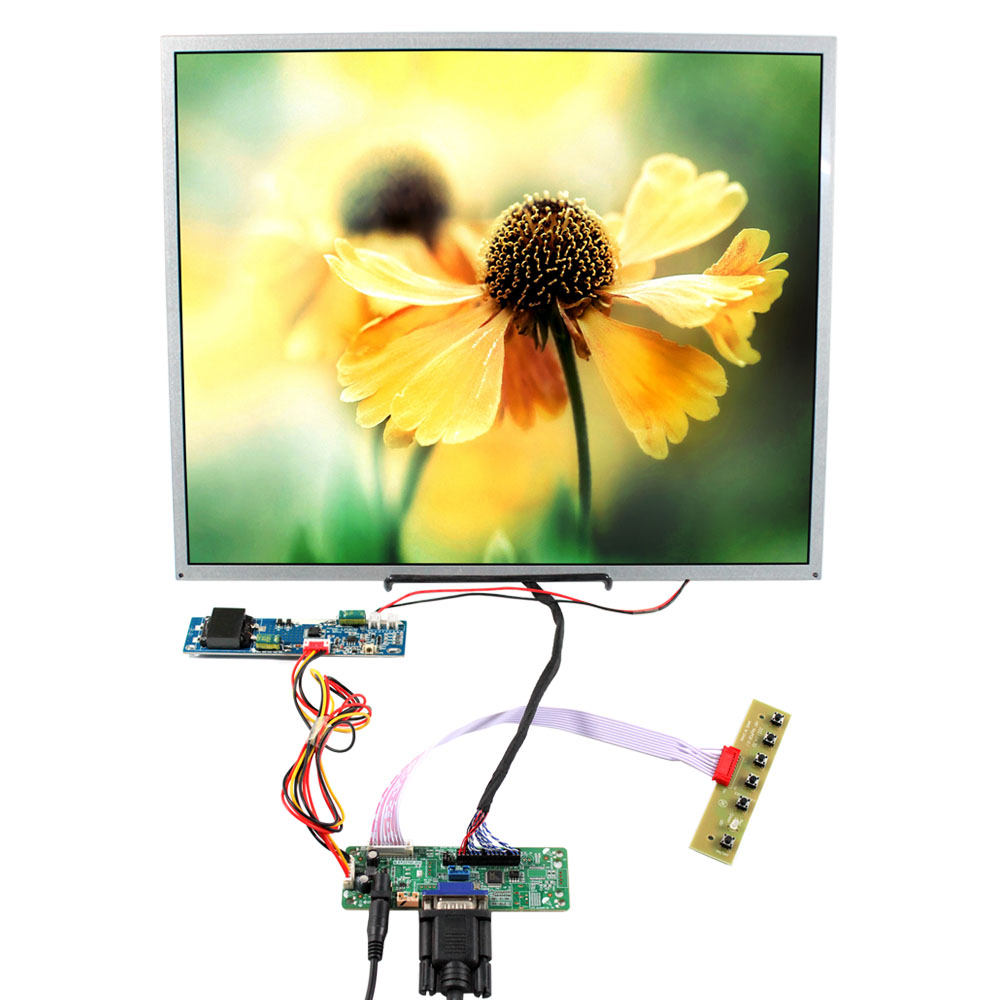

Product Name:Outdoor Lcd Display 1280X1024 19 Inch Lcd Screen With VGA Driver Board

Specifications:

19inch High Brightness Lcd G190ETN01-1000 1024X768 Outdoor Lcd Display Screen:

Display Mode TN, Normally White, Transmissive

Resolution:1280(RGB)×1024, SXGA, 86PPI

Outline Size:396(W)×324(H) ×11.7(D) mm

Display Area:376.32(W)×301.056(H) mm

Brightness:1000 cd/m² (Typ.)

Contrast Ratio :1000:1 (Typ.) (TM)

Viewing Angle :85/85/80/80 (Typ.)(CR≥10)

Signal Interface:LVDS (2 ch, 8-bit),30 pins Connector

Backlight: WLED

Input Voltage :35.0V (Typ.)

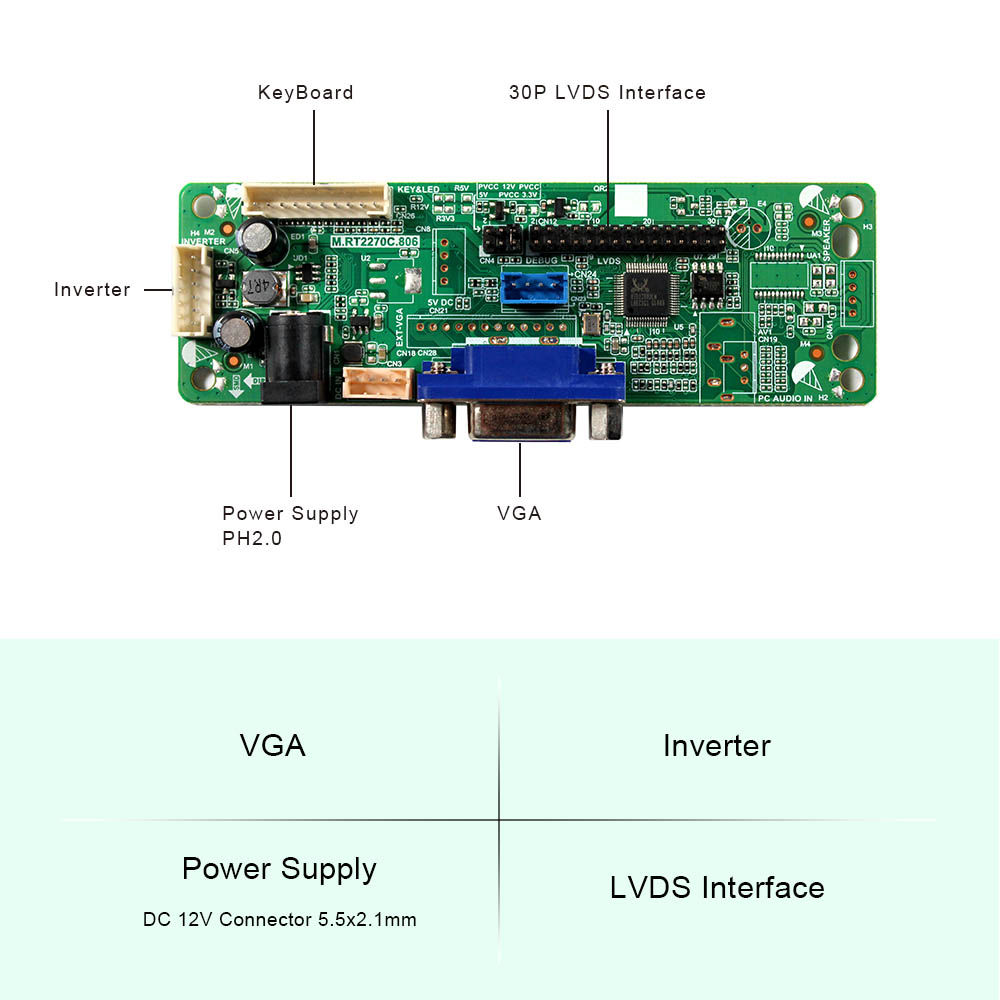

LCD Controller Board:

VGA LCD Board Work for LVDS Interface High Quality TFT Lcd Display

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:107mm x 38mm x 18mm

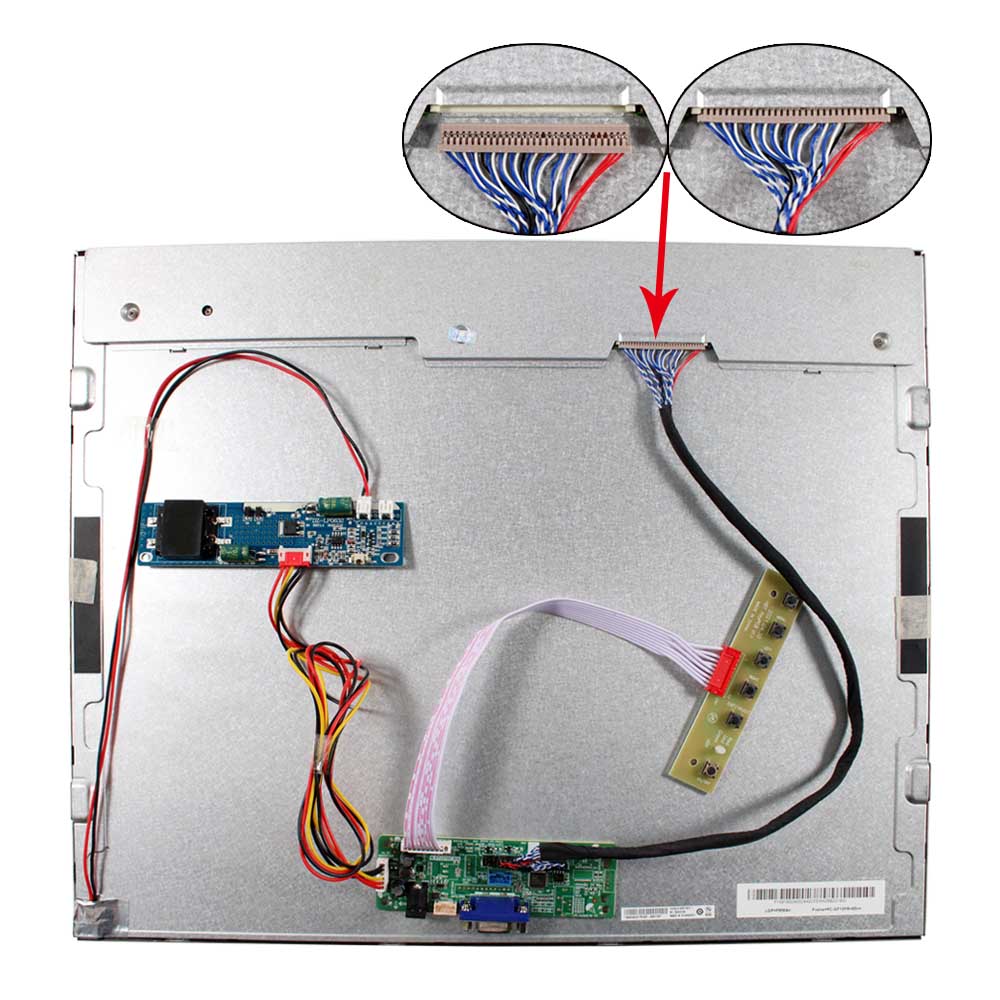

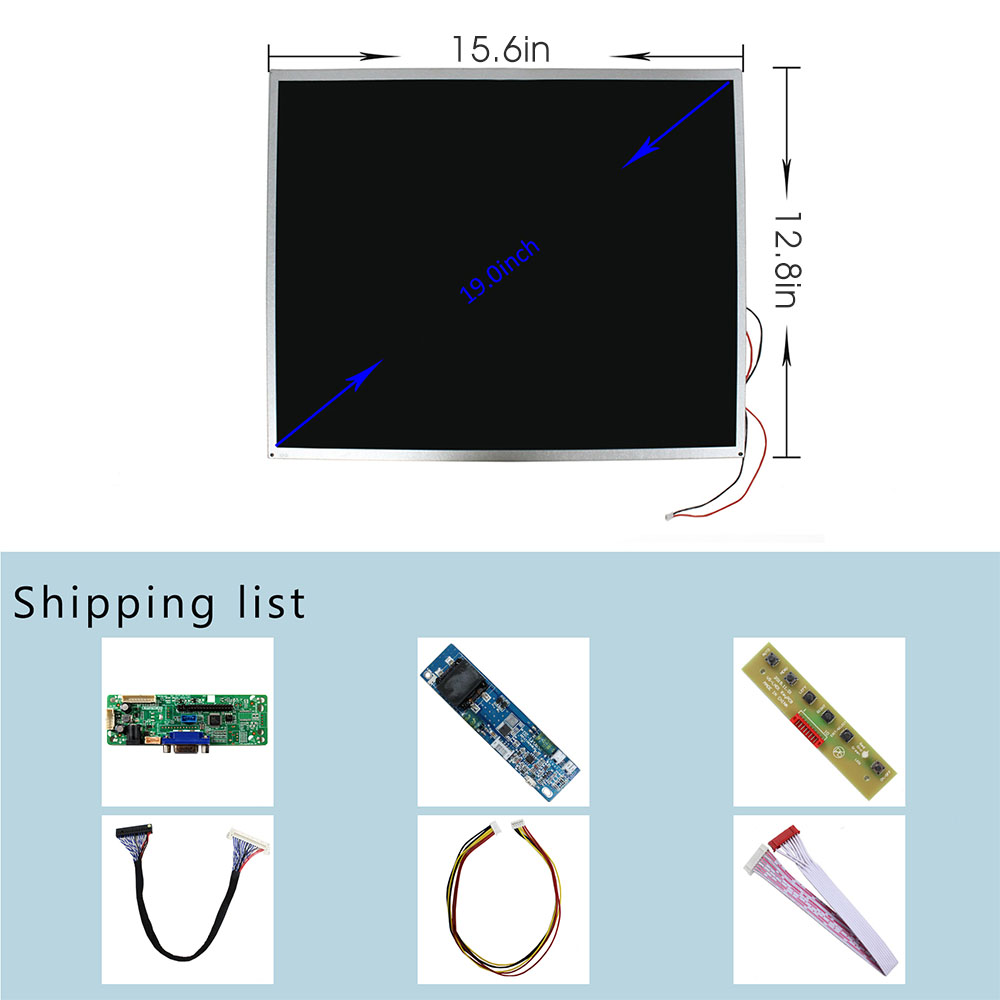

Packing list:

1× VGA LCD Controller Board RT2270C-A

1×19.0"G190ETN01-1000 1280X1024 Lcd Display Screen Advertising High Brightness Lcd Screen

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable
