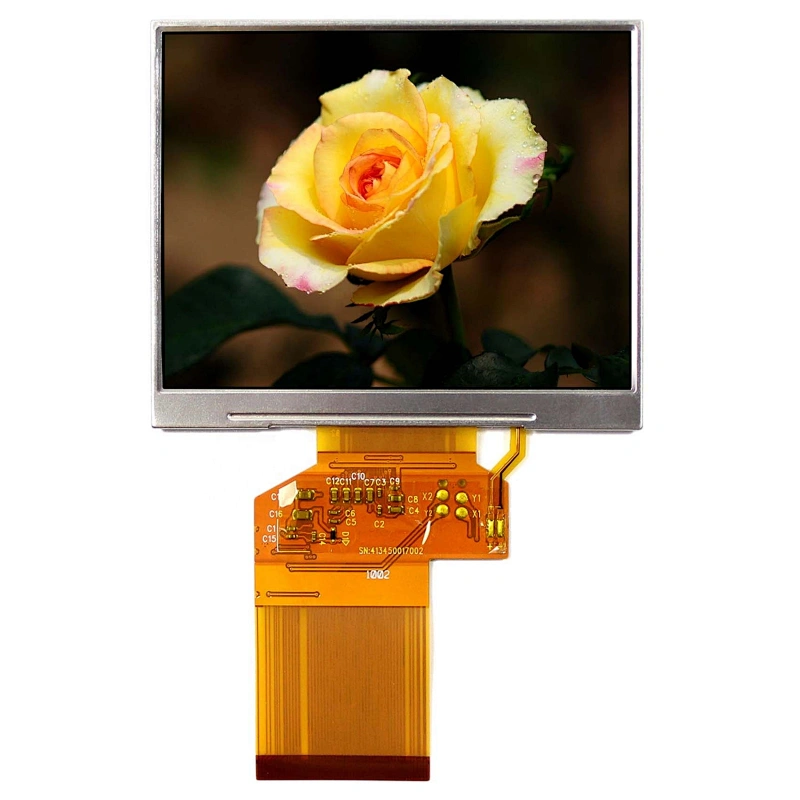

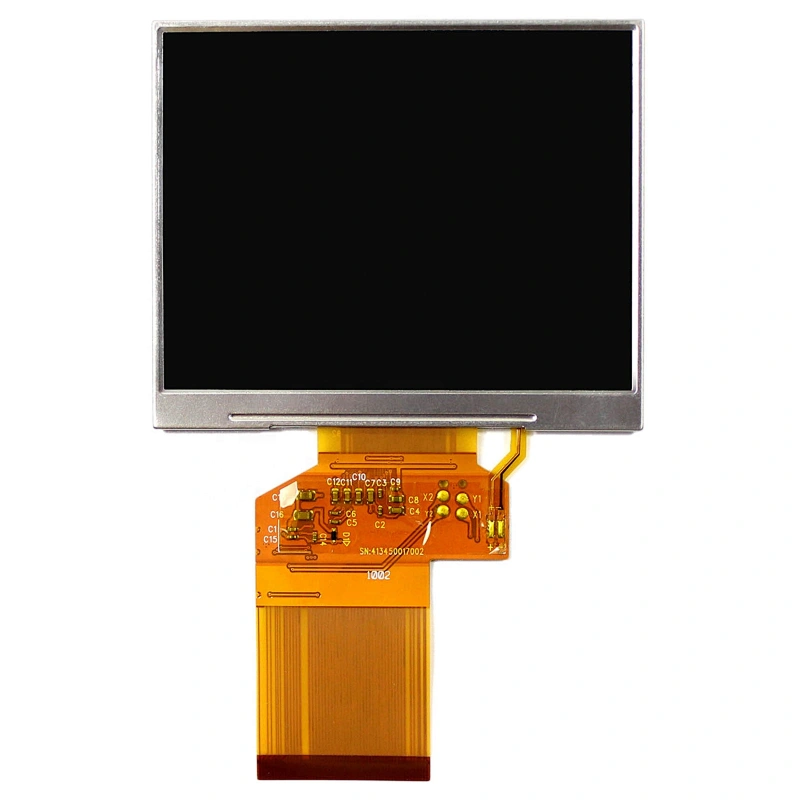

3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules
3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules
3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules
3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules
3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules

3.5 inch 54pins color lcd display module resolution 320x240 LQ035NC111 lcd modules

Model NO.
A000018 LQ035NC111
Delivery:
EXW or FOB
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • 3.5"LQ035NC111 320X240 LCD Screen:

    Display Mode TN, Normally White, Transmissive

    Resolution 320(RGB)×240
    Outline Size 76.9 × 63.9×3.46 (H×V×D)
    Display Area 70.08 × 52.56 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 60/60/50/55 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
    Backlight WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× 3.5inch LQ035NC111 320X240 LCD Screen
