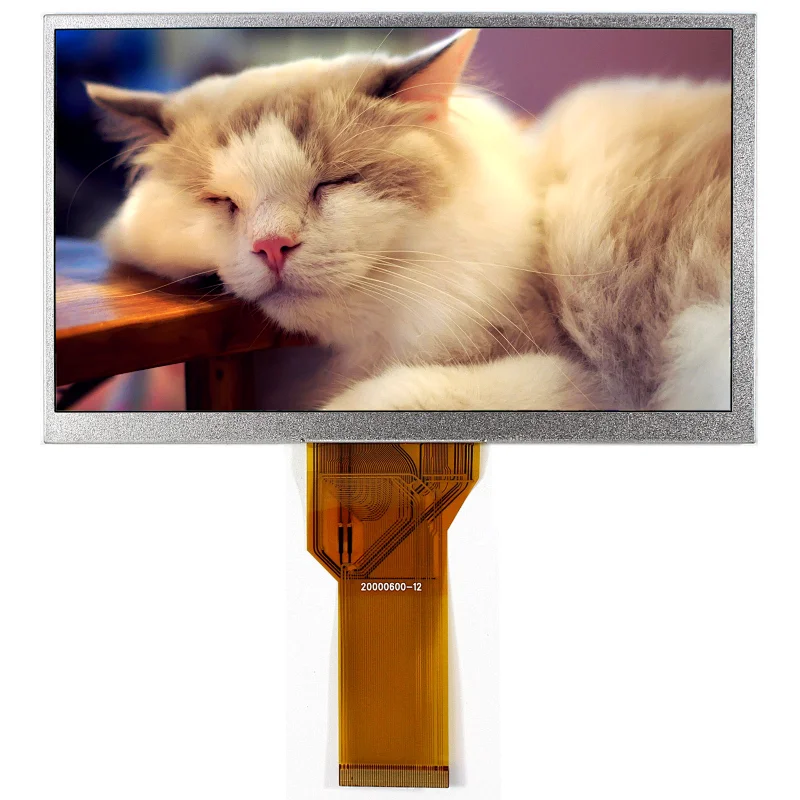

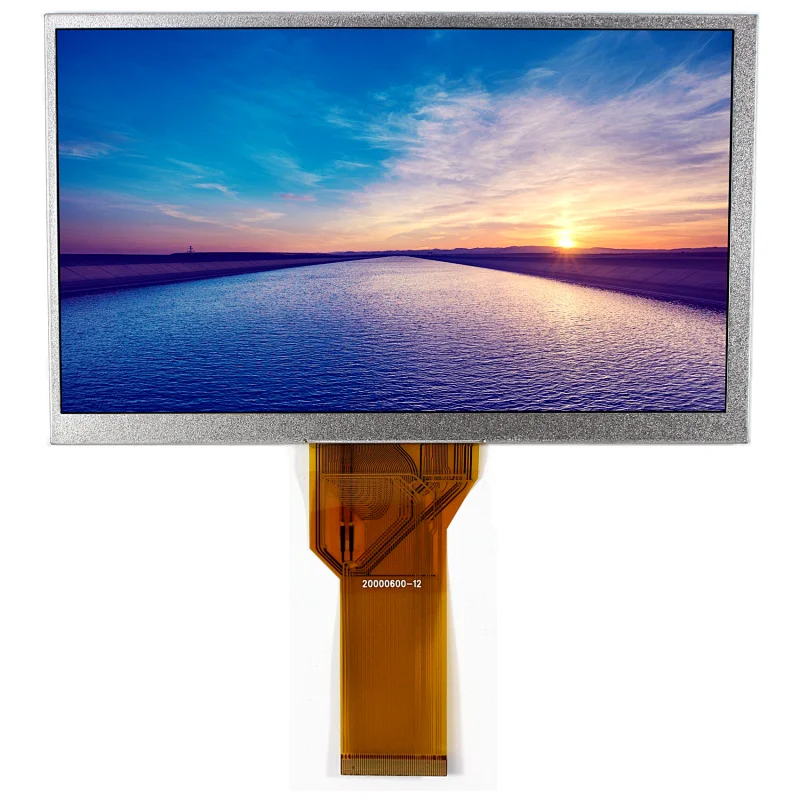

7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT
7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT

7inch 800x480 Original INNOLUX AT070TN92 lcd panel Display 7TFT

Model NO.
A000021 AT070TN92
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× 7inch AT070TN92 800X480 LCD Screen
