AA121TD02 12.1" TFT LCD 1280x800 with LCD Controller Board nt68676

Model NO.:
M.NT68676.2A+AA121TD02(K001735)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • MODEL NO:AA121TD02
  • Dots Format:1280 (H) X 800 (V)
  • Size:12.1 Inch
  • Display mode:Normal White
  • Product Name:LCD Dispaly Panel
  • Brightness:450cd/m2
  • Interface:LVDS
  • Input:vga,dvi audio
  • Audio Output:Speaker Connector
  • Place of Origin:CN;GUA
  • Display Size:12.1inch
  • Model Number:M.NT68676.2A+AA121TD02(K001735)
  • Brand Name:VS

LCD Controller Board M.NT68676.2A with 12.1inch 1280x800 Resolution AA121TD02 LCD Panel

Product Description

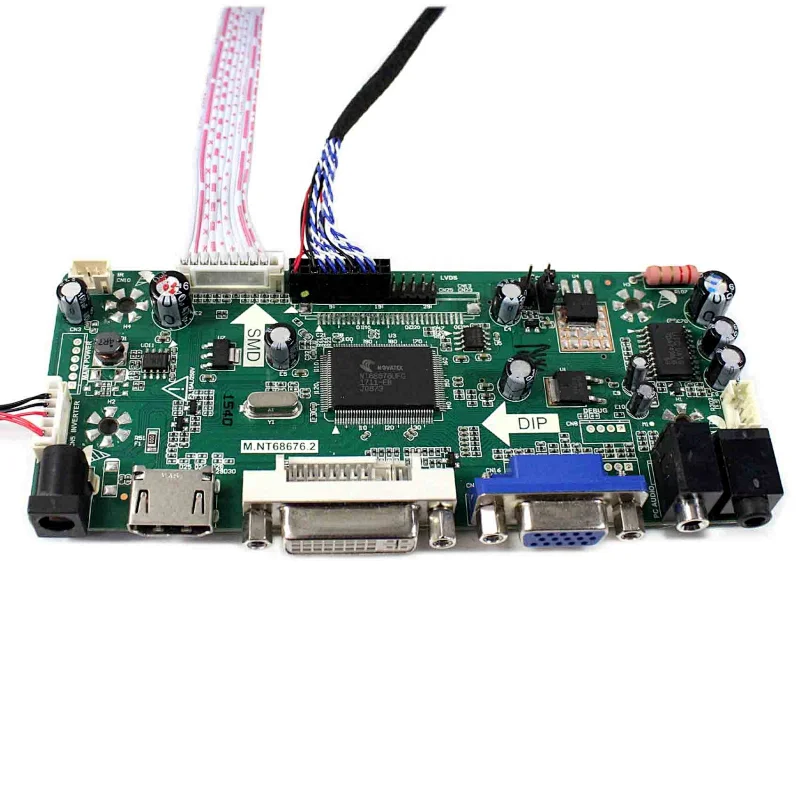

LCD Controller Board M.NT68676.2A:

K001720(3)-4

M.NT68676.2A is a monitor control board, It can support LED/LCD panels which resolution is up to 2048×1152

Size: 139mm(L)*58mm(W)*17mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Japanese, Korean (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

Operation temperature: 0~40°C.

Standby Power Consumption < 0.5W(Board Only)

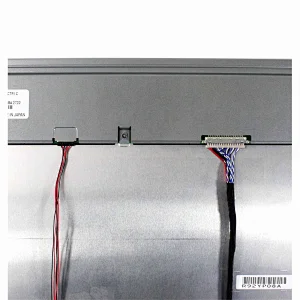

12.1"AA121TD02 1280X800 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1280RGB)×800

Outline Size 283× 185.1×10(H×V×D)

Display Area 216.12 × 163.2 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packaging & Shipping

1× LCD Controller Board M.NT68676

1× 12.1inch AA121TD021280x800 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.
