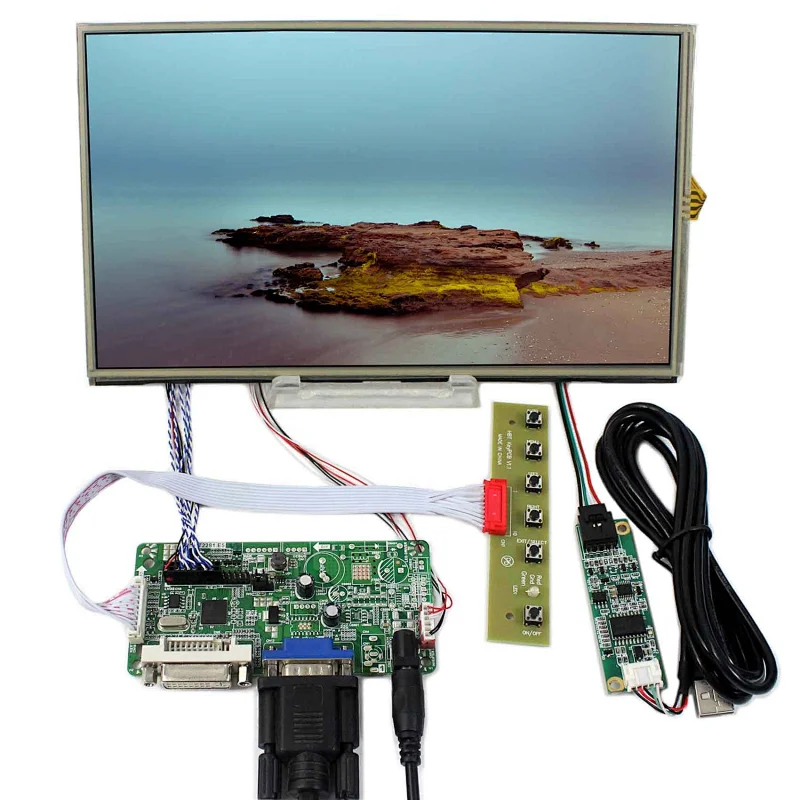

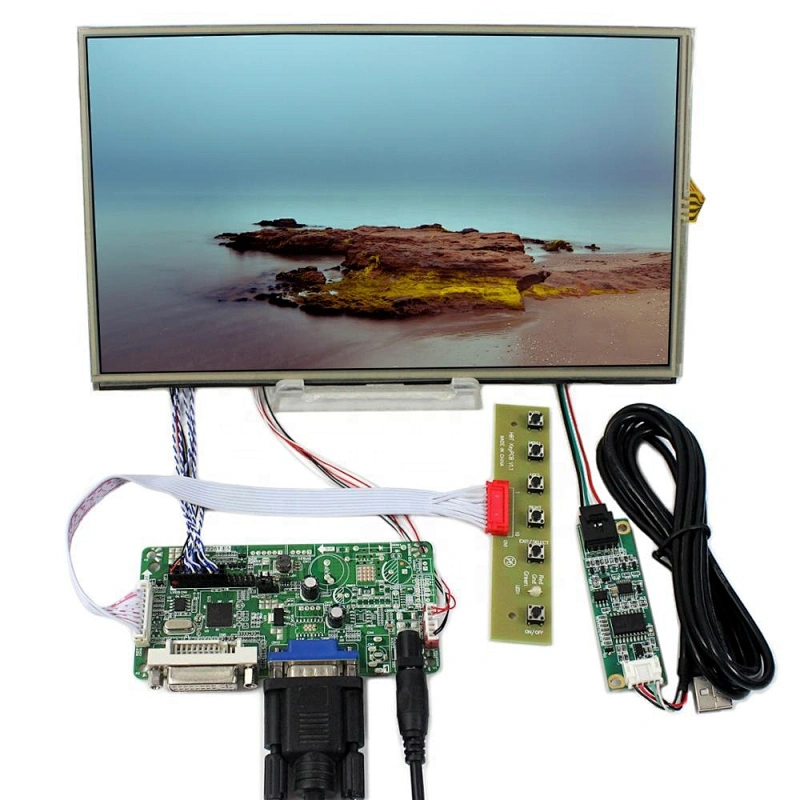

DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen
DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen

DVI,VGA LCD Controllers 10.1 Inch 1366x768 IPS Lcd with Touch Panel Screen

Model NO.
K000823 RT2281+ B101XAN01.3+ VS101TP-A2
Quantity:

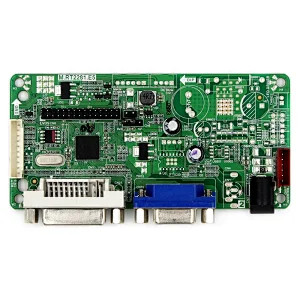

  • LCD Controller Board:
    DVI VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: DVI VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 10.1"B101XAN01.3 1366X768 LCD Screen:
    Display Mode AHAV, Normally Black, Transmissive
    Resolution 1366（RGB)×768
    Outline Size 230.62 × 135.81×0.8(H×V×D)
    Display Area 222.52× 125.11 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 900:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 8-bit) , Connector , 40 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

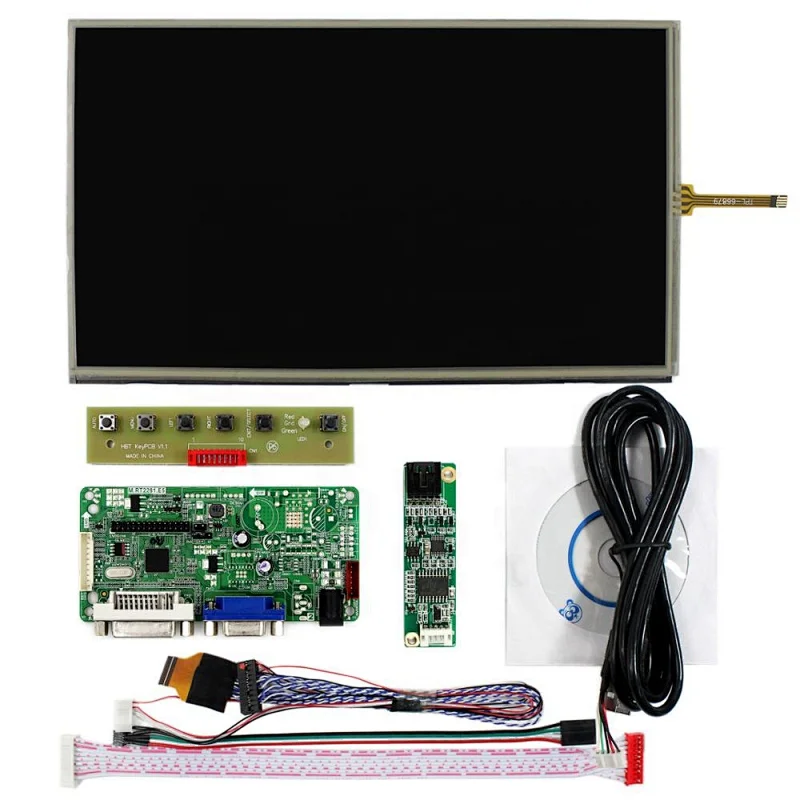

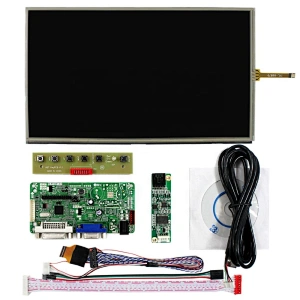

  • Packing list :
    1× VGA+DVI LCD Controller Board RT2281
    1× 10.1inch B101XAN01.3 1366X768 LCD With Resistive Touch Panel VS101TP-A2
    1× LVDS Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
