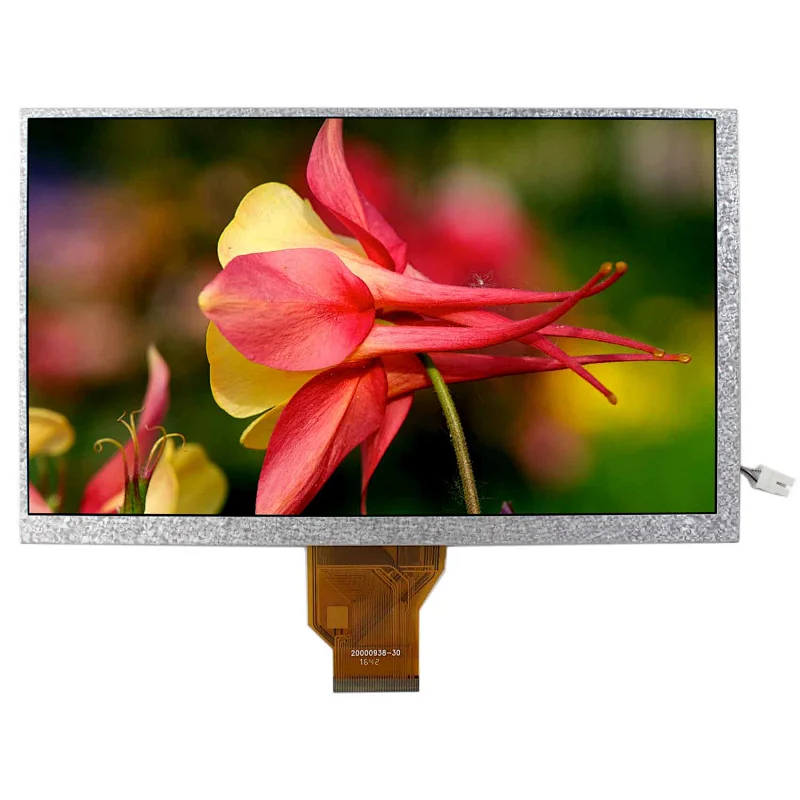

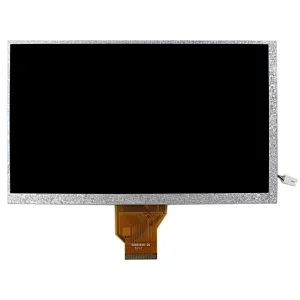

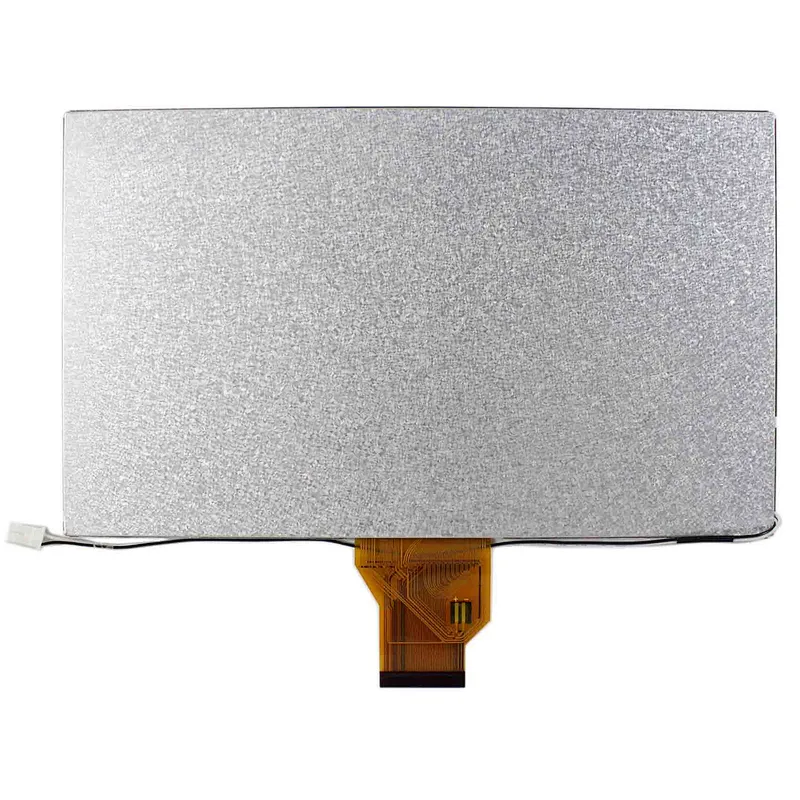

INNOLUX 9 inch 800x480 50pins ttl lcd display
INNOLUX 9 inch 800x480 50pins ttl lcd display

INNOLUX 9 inch 800x480 50pins ttl lcd display

Model NO.
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
Stock Time:
3-7days Days
  • Place of Origin:CN;GUA
  • Brand Name:VS
  • Type:TFT
  • Model Number:AT090TN10(A0264)
  • Size:9inch
  • Resolution:800x480
  • Display Mode:Normally White, Transmissive
  • Surface Treatment:Anti-Glare
  • Interface:Digital,50PIN, 0.5mm Pitch
  • Color arrangement:RGB-Stripe
  • Display mode:AT090TN10
  • Product Name:LCD Dispaly Screen

9inch Resolution 800×480 ttl 50pins LCD Screen AT090TN10

Product Description

Display Mode: Normally White, Transmissive

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800x480

Outline Size: 211.1(H)×126.5(V)x5.9(D)mm

Display Area: 198 (H)×111.696(V)

Backlight type: WLED

Brightness: 250 cd/m² (Typ.)

Contrast Ratio: 500 : 1 (Typ.) (Transmissive)

Viewing Angle: 70/70/50/70(Typ.)(CR≥10)

Signal Interface: TTL 50Pins 0.5mm

Input Power voltage: 3.3V

Operating Temperature:-30~80°C

Packaging & Shipping

1× 9inch 800*480 TFT LCD panel AT090TN10

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.


Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
