LCD Controller Board KYV-N3 V1 with 10.4" 800x600 TTL LCD Panel A104SN03 LVDS to TTL Tcon Board

Model NO.
KYV-N3 V1+A104SN03 (K000548)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • MODEL NO:A104SN03 (Diagonal)
  • Dots Format:800 (H) X 600 (V)
  • Driver Element:a-si TFT active matrix
  • Color Arrangement:RGB-stripe
  • Interface:Digital (TTL)
  • Backlight Type:Normally White LED, Transmissive
  • Product Name:LCD PANLE
  • Board:LCD controller board
  • Input:VGA,AV,H DMI
  • Place of Origin:CN;GUA
  • Display Size:10.4inch
  • Model Number:KYV-N3 V1+A104SN03 (K000548)
  • Brand Name:VS

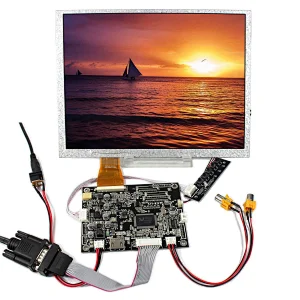

LCD Controller Board KYV-N3 V1 with 10.4inch 800x600 LCD Screen A104SN03 V1

Product Description

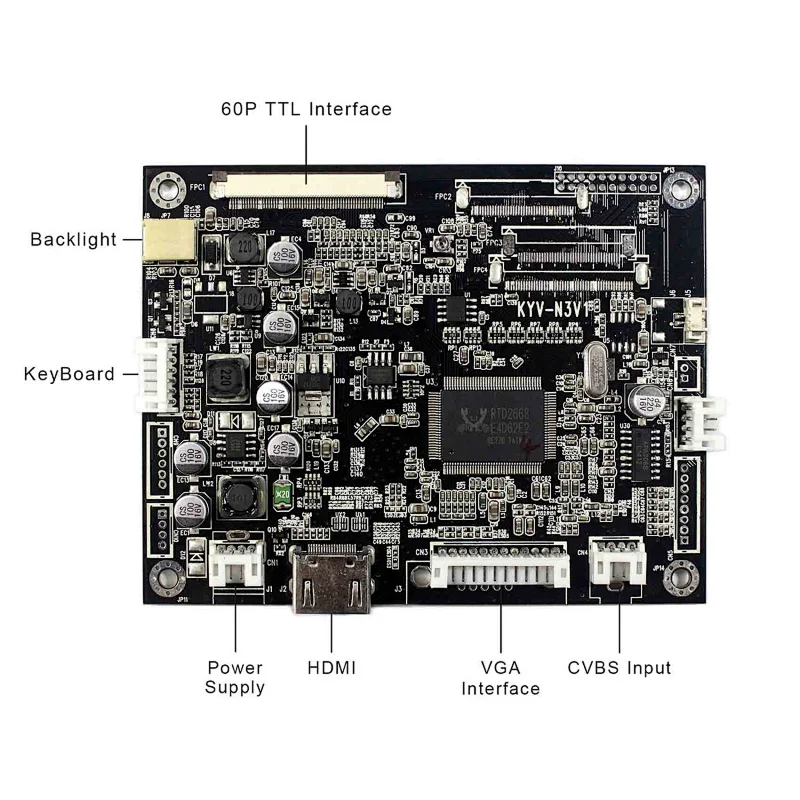

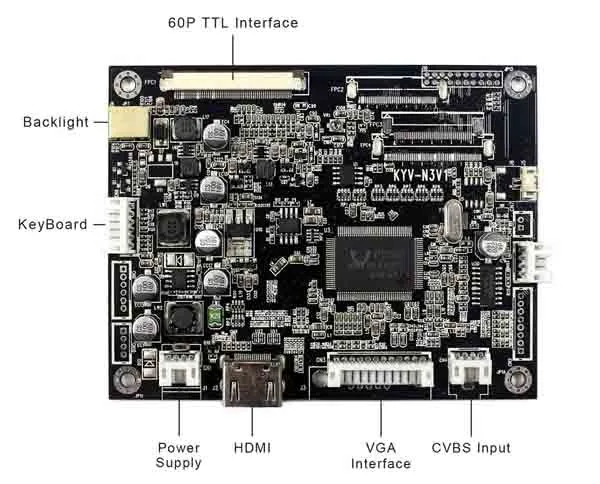

LCD Controller board KYV-N3 V1:

HDMI VGA AV AUDIO LCD Board Work for 60Pin TTL LCD Screen

Input Power Adapter:12Vdc More than 1A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Video Input: HDMI VGA AV

Audio Input: HDMI

Audio Output:Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language:English French German Spanish Italian And So On

Board Size:110mm x 85mm x 10mm

10.4"LCD Screen A104SN03 V1 :

Display Mode TN, Normally White, Transmissive

Type: TFT-LCD ,LCM


Resolution: 800×600

Aspect Ratio:4:3

Signal Interface: TTL (1 ch, 6/8-bit) +SPI, FPC , 60 pins 0.5mm

Backlight:WLED


Outline Size: 228.4× 175.4 × 6.2 (H×V×D)


Display Area: 211.2 × 158.4 (H×V)


Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)

Viewing Angle: 70/70/50/60 (Typ.)(CR≥10)

Operating Temp:-10 ~ 60 °C

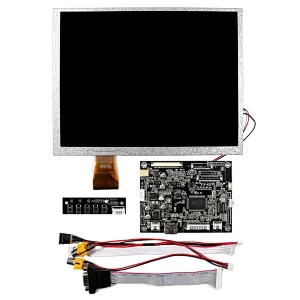

Packaging & Shipping

K000548(2)

LCD Controller board KYV-N3 V1

1×10.4inch A104SN03 V1 4:3 LCD Screen

1× Power Supply Cable

1× VGA Cable

1× AV Cable

1× Keyboard With Cable
