LCD Controller Board M.NT68676.2A,13.3" 1366x768 lvds 40pin LCD Screen

Model NO.
M.NT68676.2A+13.3" 1366x768 LCD(K000332)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Resolution:1366x768
  • FPC:40pin 0.5mm pitch
  • Interface:LVDS
  • Size:13.3 Inch
  • Product Name:LCD Dispaly Screen
  • Backlight:WLED
  • LCD Controller Board:M.NT68676.2A
  • Place of Origin:CN;GUA
  • Type:Controller Board
  • Display Size:for 13.3inch
  • Model Number:M.NT68676.2A+13.3"1366x768 LCD(K000332)
  • Brand Name:VS

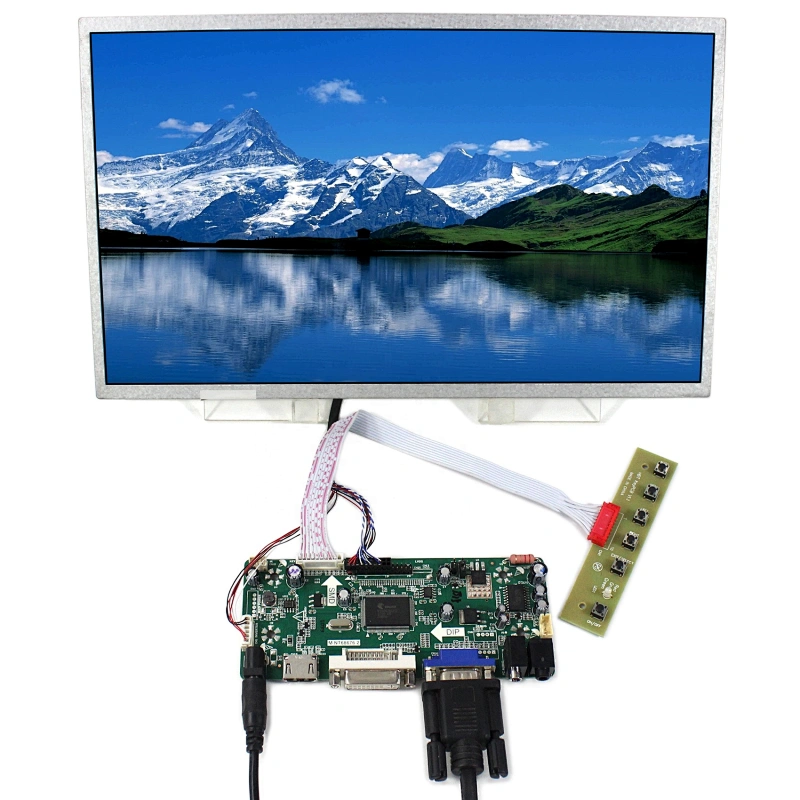

LCD Controller Board M.NT68676.2A with 13.3"1366x768 LVDS 40pin LCD Screen

LCD Panel one of: N133B6 LP133WH1 B133XW02 B133XW04 LTN133AT17

Product Description

LCD Controller Board M.NT68676.2A:

K001720(3)-4

It can support LED/LCD panels which resolution is up to 2048×1152

Size: 139mm(L)*58mm(W)*17mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Japanese, Korean (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

Operation temperature: 0~40°C.

Standby Power Consumption < 0.5W(Board Only)

13.3"1366X768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366RGB)×768

Outline Size 307.6 × 183.1×5.5(H×V×D)

Display Area 293.42× 164.97 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 45/45/40/45 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

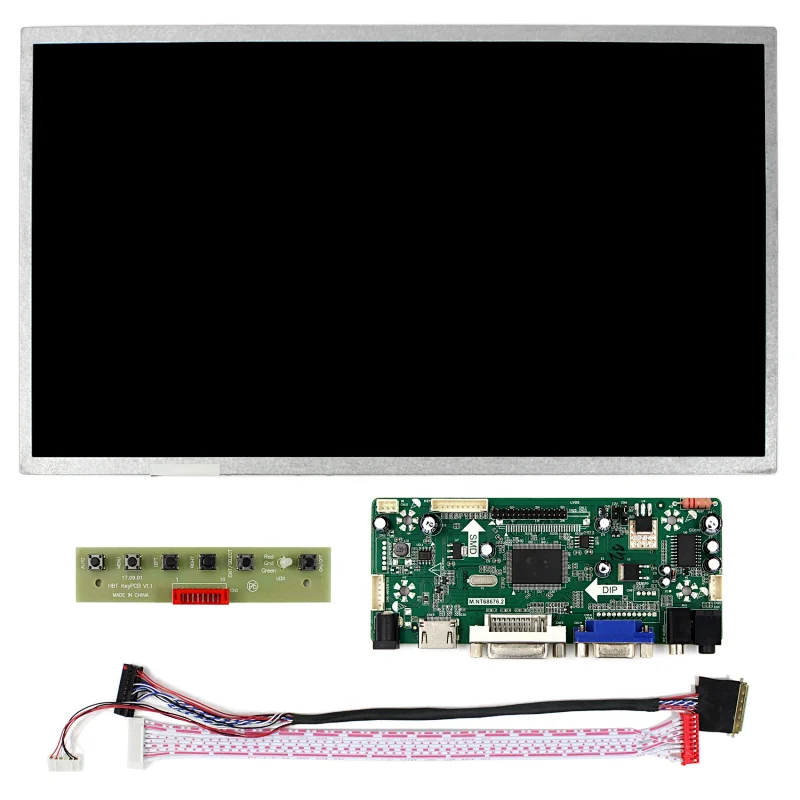

Packaging & Shipping

K000332(2)

1× LCD Controller Board M.NT68676.2A

1× 13.3inch 1366X768 LCD Screen(One of N133B6 LP133WH1 B133XW02 B133XW04 LTN133AT17)

1× LVDS Cable

1× Keyboard With Cable

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
