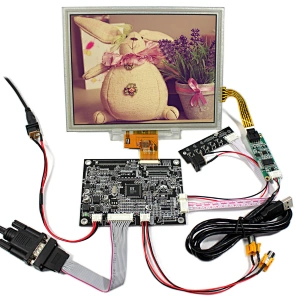

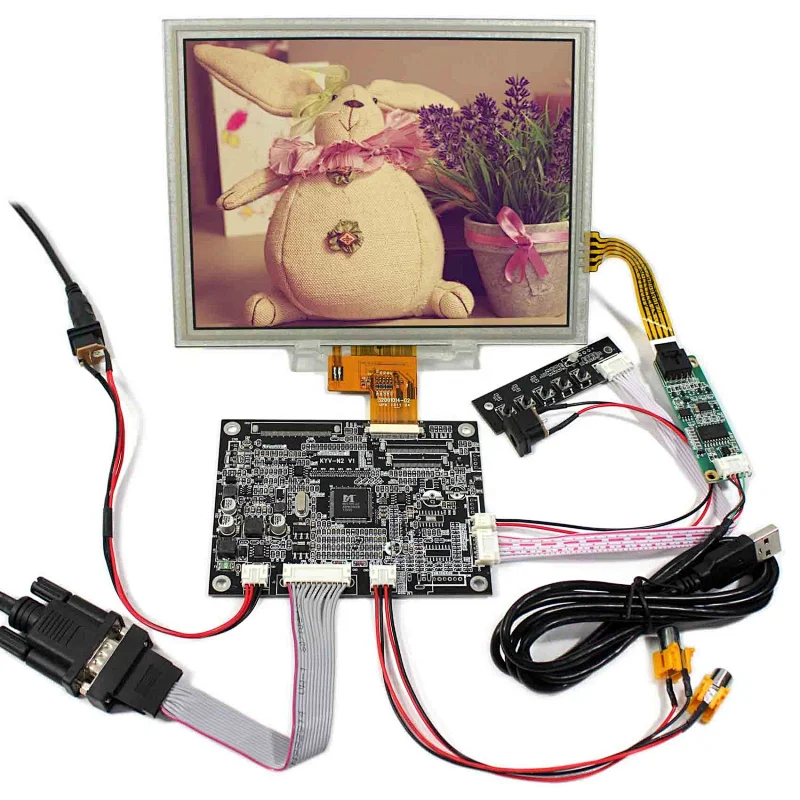

lcd display module 8" 1024x768 with touch screen, VGA AV Reversing controller board lcd display module 8" 1024x768 lcd module 8" touch screen module
K000208 KYV-N2 V1+EJ080NA-04C+TP
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
Tcon Board VS-TCON50-V1 with 8" 800x480 tft lcd panel 8 tft lcd 800x480 tft lcd module 800x480 tft lcd 800x480 tcon board tcon lcdK000828 AT080TN64+VS-TCON50-V1
Tcon Board VS-TCON50-V1 with 8" 800x600 tft lcd scree tcon boardK000827 AT080TN52+VS-TCON50-V1
8inch PD080SL3 800X600 LCD Screen with H-D-compatible+VGA+AV+USB LCD Controller BoardK002619-VS-V59AV-V1+PD080SL3-22 800x600
8inch PD080SL3 800X600 8" LVDS 20Pins LCD Screen with H-D-compatible VGA 2AV LCD Controller Board 8inch PD080SL3 800X600K002618 VS-TY2662-V1+PD080SL3-22 800x600

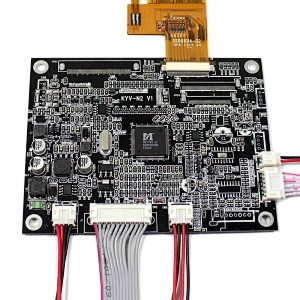

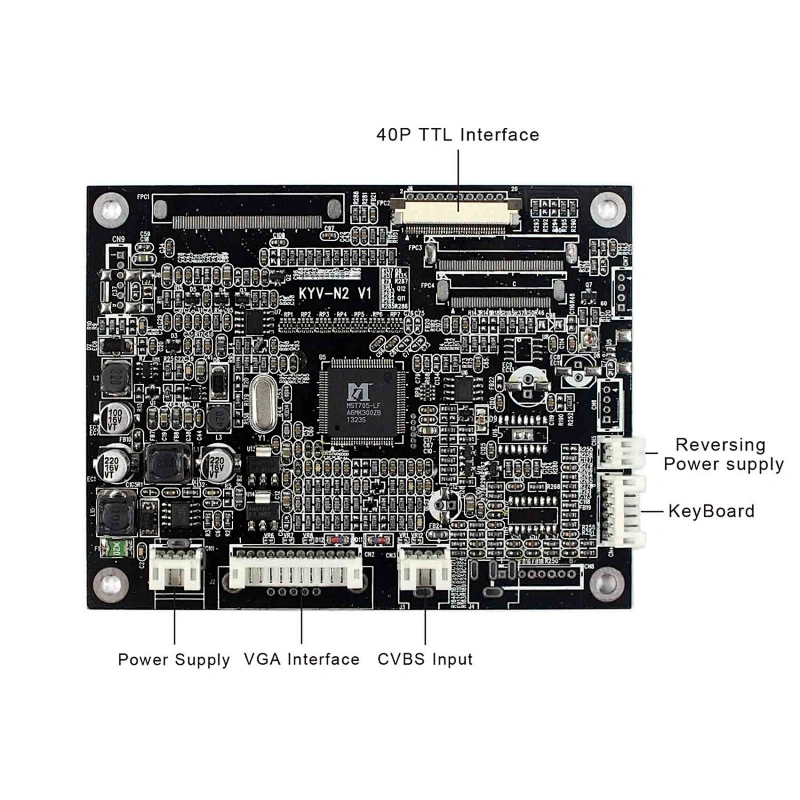

LCD Controller Board:
VGA AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:110mm x 85mm x 10mm
VGA AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:110mm x 85mm x 10mm

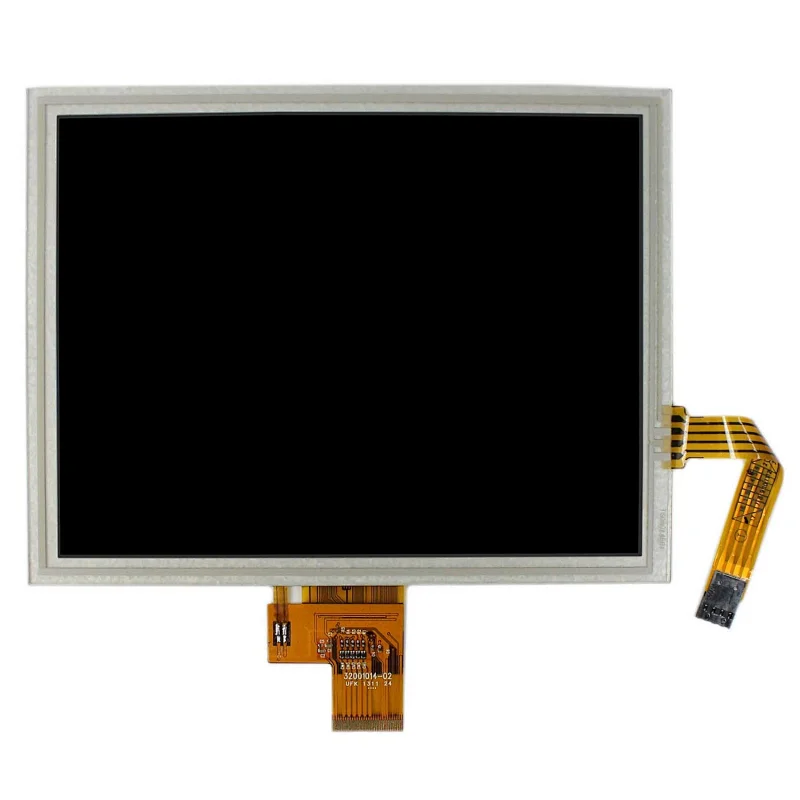

8"EJ080NA-04C 1024X768 LCD Dsipaly Module:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 183 × 141×3.7 (H×V×D)
Display Area 162× 121.5(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 183 × 141×3.7 (H×V×D)
Display Area 162× 121.5(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

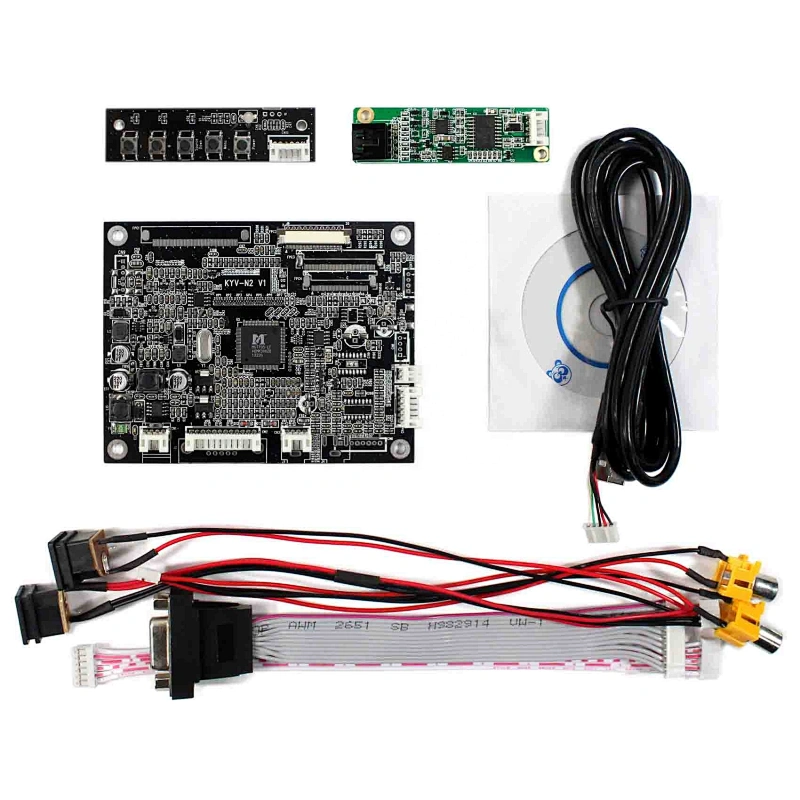

Packing list :
1× VGA+AV LCD Controller Board KYV-N2 V1 Support Reversing
1× 8inch EJ080NA-04C 1024X768 LCD Screen With Touch Panel VS080TP-A2
1× Power Supply Cable
1× Reversing Cable（Connect To 12V Tt Auto switch To AV2)
1× VGA Cable
1× AV Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× VGA+AV LCD Controller Board KYV-N2 V1 Support Reversing
1× 8inch EJ080NA-04C 1024X768 LCD Screen With Touch Panel VS080TP-A2
1× Power Supply Cable
1× Reversing Cable（Connect To 12V Tt Auto switch To AV2)
1× VGA Cable
1× AV Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
