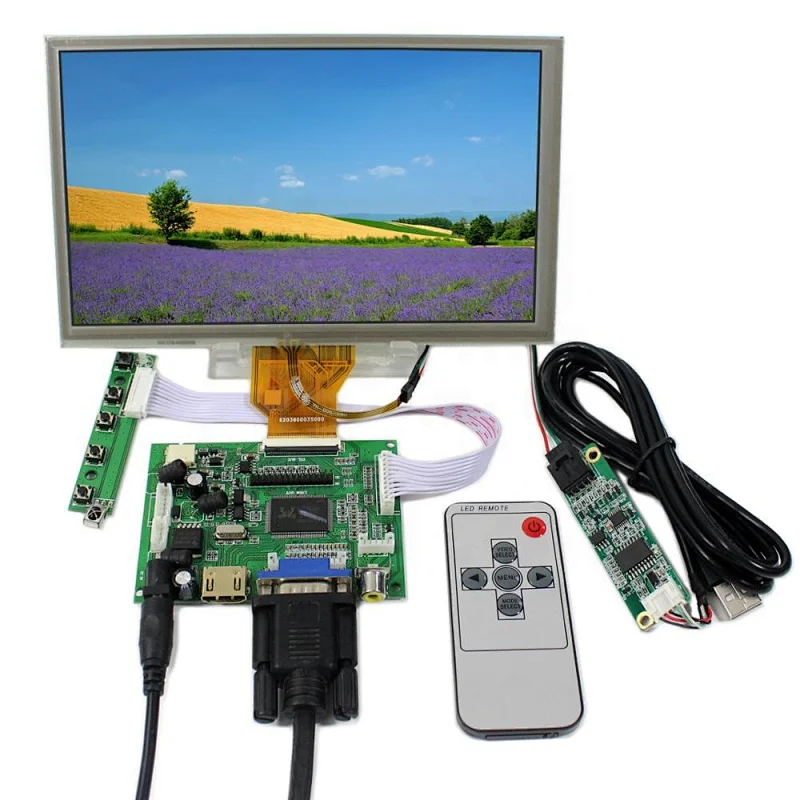

LCD driver board with 8inch LCD AT080TN64 with touch screen
K000221 VS-TY2662-V1+AT080TN64+TPA4
Quantity:
US $40.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
Tcon Board VS-TCON50-V1 with 8" 800x480 tft lcd panel 8 tft lcd 800x480 tft lcd module 800x480 tft lcd 800x480 tcon board tcon lcdK000828 AT080TN64+VS-TCON50-V1
Tcon Board VS-TCON50-V1 with 8" 800x600 tft lcd scree tcon boardK000827 AT080TN52+VS-TCON50-V1
8inch PD080SL3 800X600 LCD Screen with H-D-compatible+VGA+AV+USB LCD Controller BoardK002619-VS-V59AV-V1+PD080SL3-22 800x600
8inch PD080SL3 800X600 8" LVDS 20Pins LCD Screen with H-D-compatible VGA 2AV LCD Controller Board 8inch PD080SL3 800X600K002618 VS-TY2662-V1+PD080SL3-22 800x600

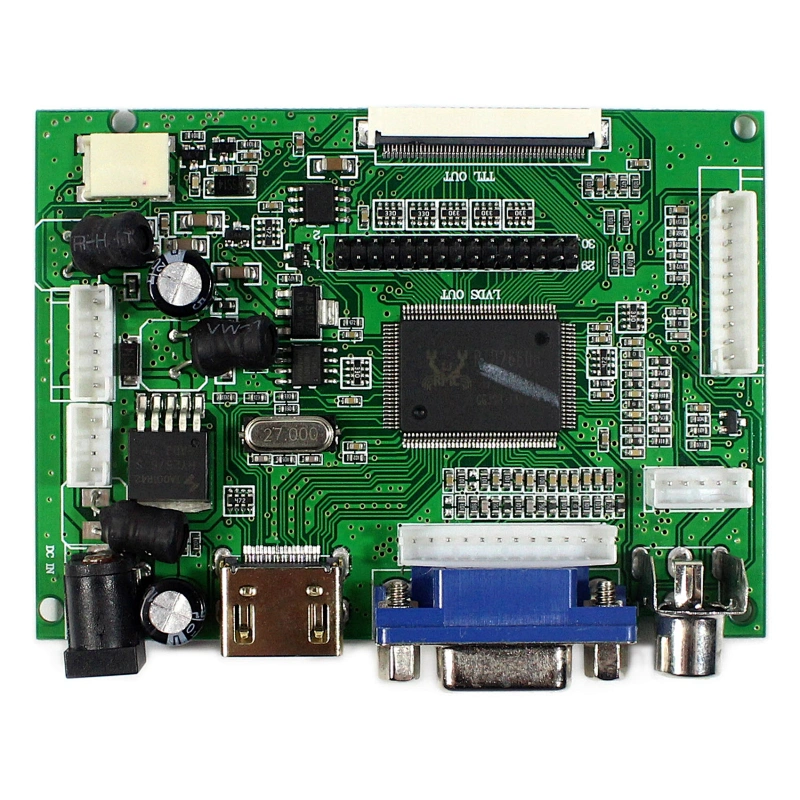

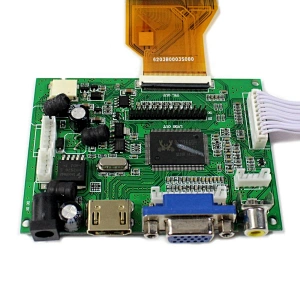

LCD Controller Board:
H-D-compatible VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
H-D-compatible VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
8"AT080TN64 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 192.6 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 192.6 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

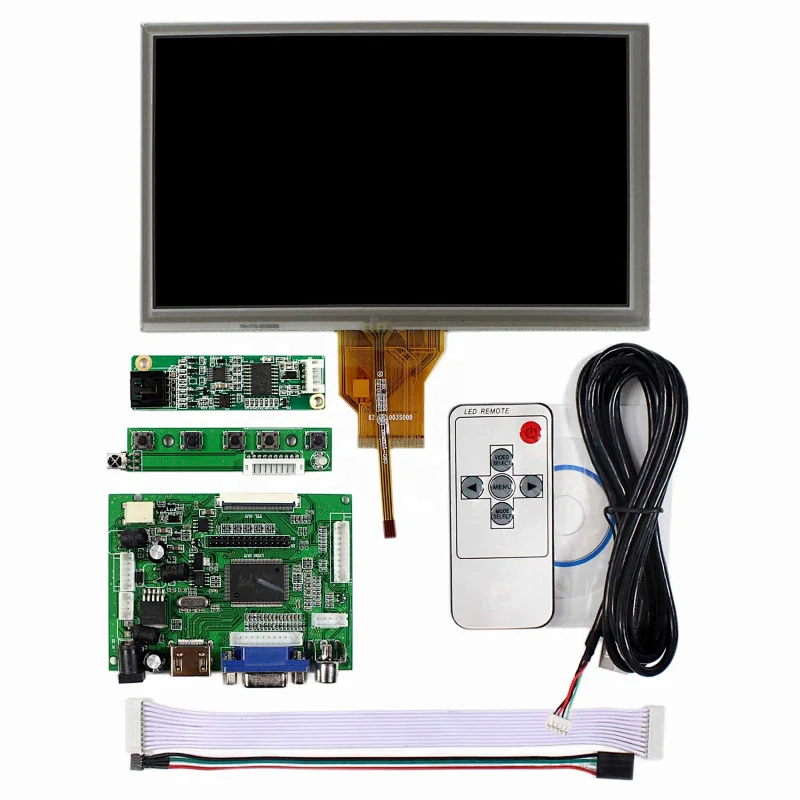

Packing list :
1× H-D-compatible VGA+2AV LCD Controller Board VS-TY2662-V1
1× 8inch AT080TN64 800X480 LCD Screen With Touch Panel VS080TP-A4
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
1× H-D-compatible VGA+2AV LCD Controller Board VS-TY2662-V1
1× 8inch AT080TN64 800X480 LCD Screen With Touch Panel VS080TP-A4
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
