Model NO.
T.V56.03+LQ150X1LW73(K001721)
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
10000.0 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Resolution:1024x768
  • Size:15 Inch
  • Interface:LVDS
  • Backlight:CCFL
  • Connector:20 pin
  • Display mode:IPS
  • Brightness:350 Cd/m2
  • Item:LQ150X1LW73
  • Product Name:LCD Controller Board
  • Place of Origin:CN;GUA
  • Brand Name:VS
  • Display Size:15inch
  • Model Number:T.V56.03+LQ150X1LW73(K001721)

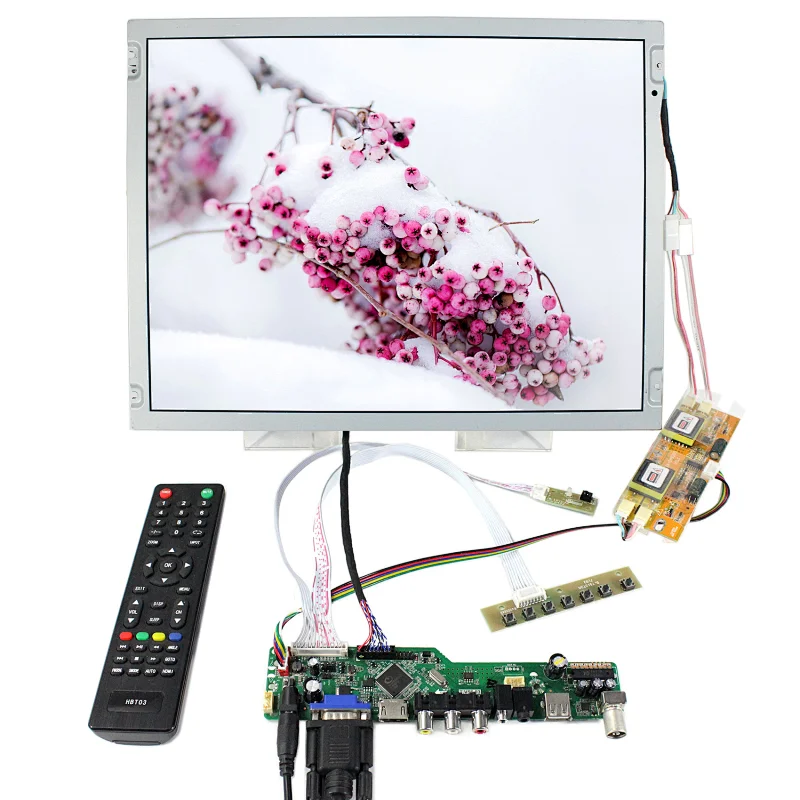

TV LCD Controller board T.V56.03 with 15inch 1024x768 LCD Display Panel LQ150X1LW73 4CCFL Backlight

Product Description

TV Controller Board T.V56.03:

K001721(4)-4

Board Size:188mm x 43mm x 17mm

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

AV Compatible With PAL And NTSC

Video Input: HDMI VGA AV USB RF

Audio Input: HDMI PC-Audio

Audio Output: Speaker Connector

OSD: Brigtness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

15"1024x768 LCD ScreenLQ150X1LW73:

Display Mode ASV, Normally Black, Transmissive

Resolution 1024×768

Outline Size 331.6× 254.7×13(H×V×D)

Display Area 304.1 × 228.1 (H×V)

Brightness 350 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector

Backlight 4CCFL

Input Voltage 3.3V (Typ.)

Packaging & Shipping

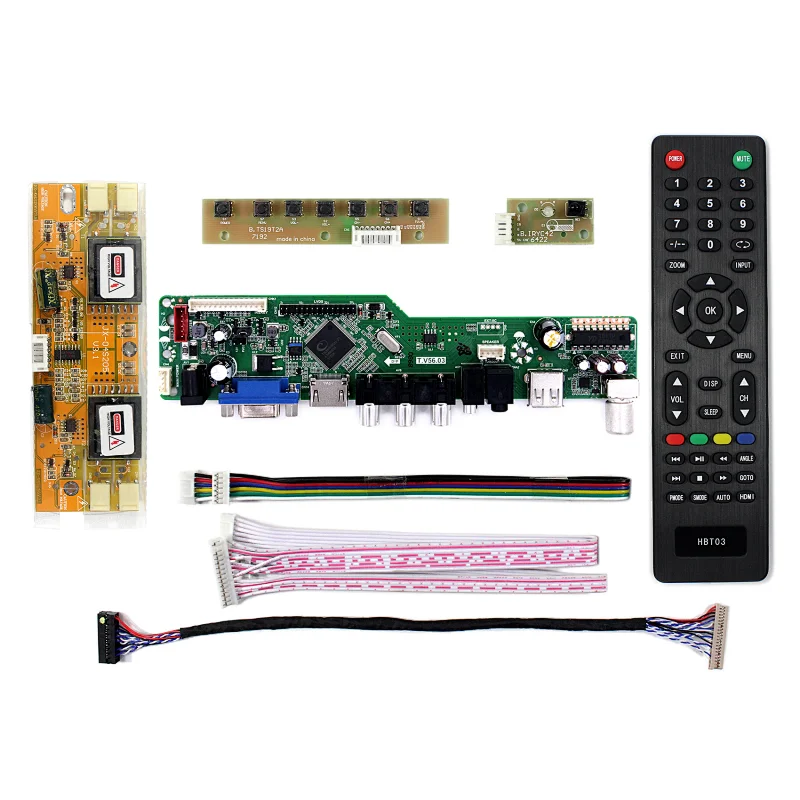

1× LCD Controller Board T.V56.03

1× 15inch LQ150X1LW73 1024x768 LCD Screen

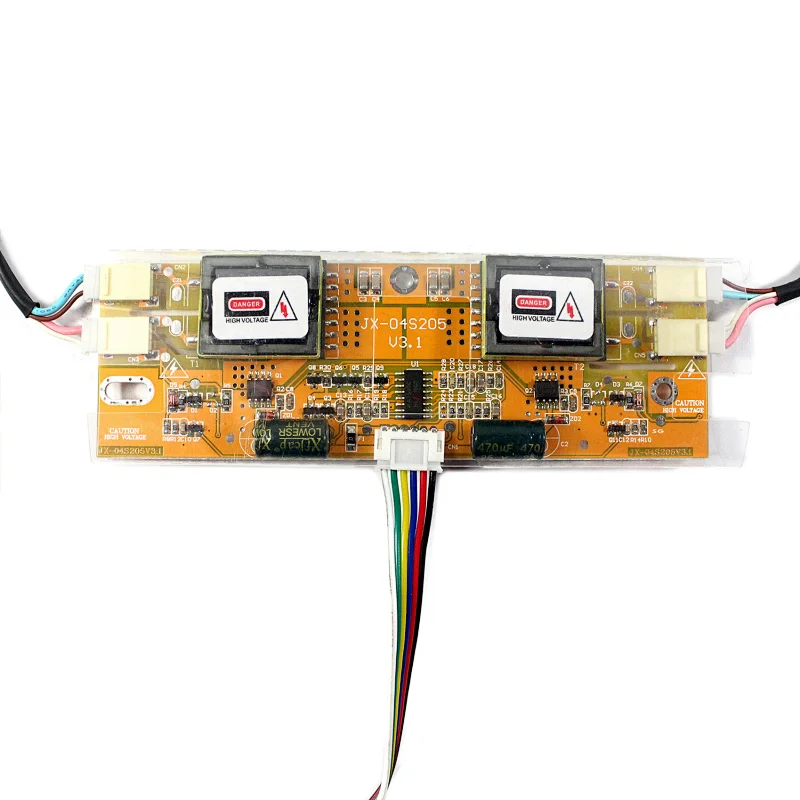

1× 4 CCFL Inverter Board

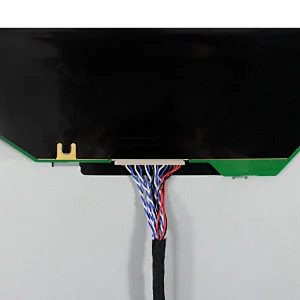

1× LVDS Cable

1× Remote Control (Battery Not included)

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
