VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen
VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen

VGA 2AV LCD Controller Board 20pin LVDS Connector HSD121KXN1-A10 1024X768 Resolution 12.1inch LCD Screen

Model NO.
K001796 VS-2662-V1+HSD121KXN1-A10
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

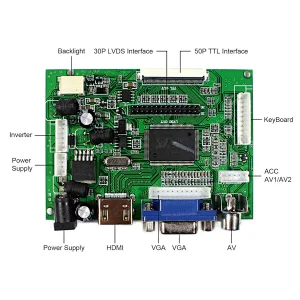

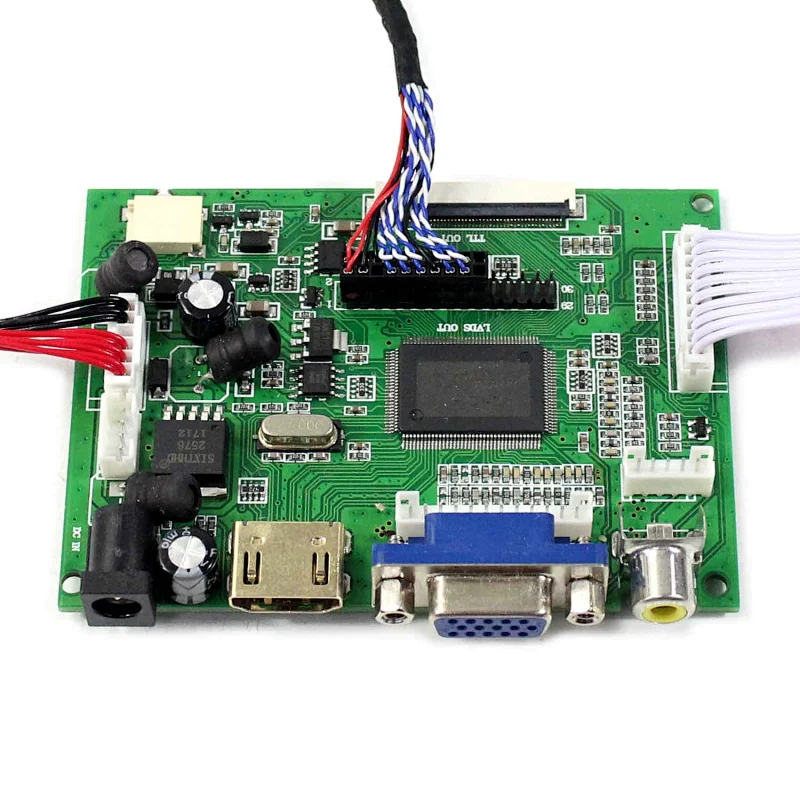

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm
  • 12.1"HSD121KXN1-A10 1024X768 LCD Screen:
    Display Mode IPS Pro, Normally Black, Transmissive
    Resolution 1024（RGB)×768
    Outline Size 260.5 ×204×8.9(H×V×D)
    Display Area 245.76 × 184.32 (H×V)
    Brightness 600 cd/m² (Typ.)
    Contrast Ratio 900:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  LVDS(1 ch, 6/8-bit) , Connector , 20pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

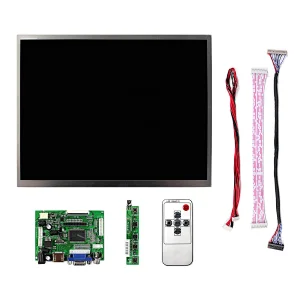

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 12.1inch HSD121KXN1-A10 1024X768 LCD Screen
    1× Backlight Cable
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
