H DMI+VGA+2AV LCD Controller Board VS-TY2662-V5+7inch 1024X600 LCD Screen With Resistive Touch Panel lcd display panels transparent lcd display lcd smart board

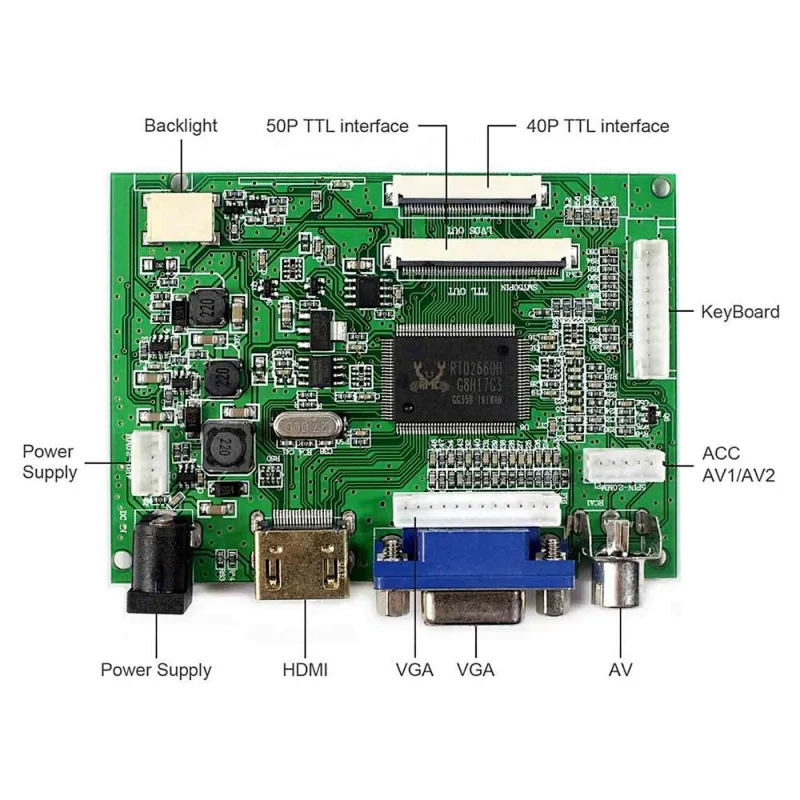

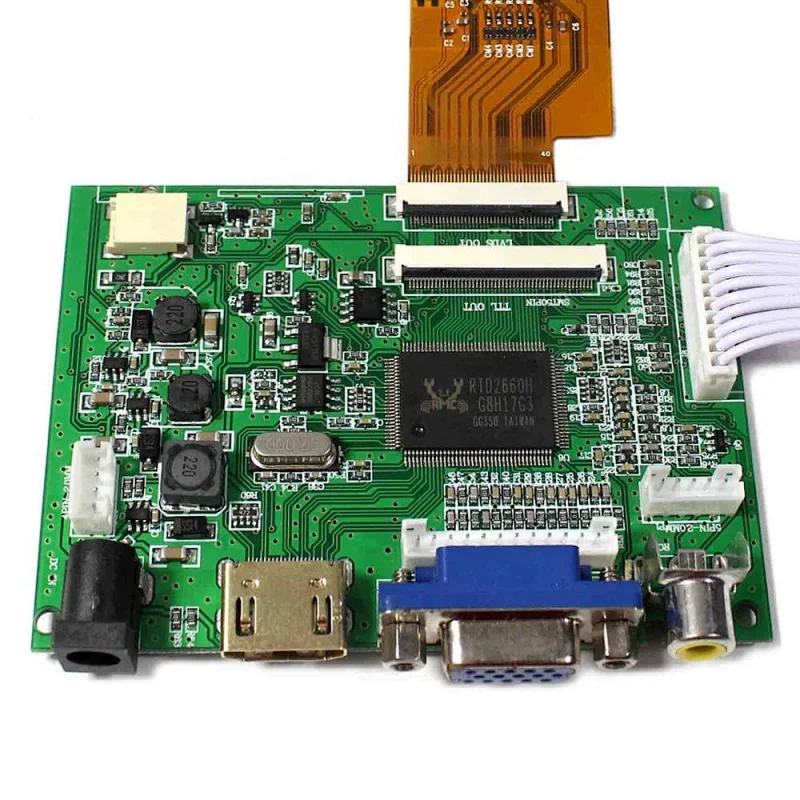

LCD Controller Board:
H-D-compatible VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm



7"AT070TNA2 1024X600 LCD Display Panels:
Display Mode TN, Normally White, Transmissive
Resolution 1024（RGB)×600
Outline Size 165.75 × 105.39×3.7 (H×V×D)
Display Area 153.6 × 90(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

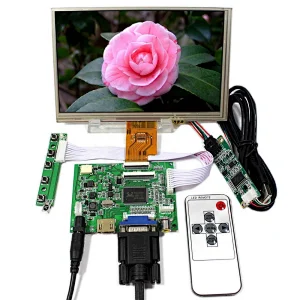

Packing list :
1× H-D-compatible+VGA+2AV LCD Controller Board VS-TY2662-V5
1× 7inch AT070TNA2 1024X600 LCD Screen With Resistive Touch Panel
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
