HDMI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch EJ080NA-04C 1024X768 LCD Screen
K001991 VS-TY2660H-V815+EJ080NA-04C
Quantity:
US $75.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
Tcon Board VS-TCON50-V1 with 8" 800x480 tft lcd panel 8 tft lcd 800x480 tft lcd module 800x480 tft lcd 800x480 tcon board tcon lcdK000828 AT080TN64+VS-TCON50-V1
Tcon Board VS-TCON50-V1 with 8" 800x600 tft lcd scree tcon boardK000827 AT080TN52+VS-TCON50-V1
8inch PD080SL3 800X600 LCD Screen with H-D-compatible+VGA+AV+USB LCD Controller BoardK002619-VS-V59AV-V1+PD080SL3-22 800x600
8inch PD080SL3 800X600 8" LVDS 20Pins LCD Screen with H-D-compatible VGA 2AV LCD Controller Board 8inch PD080SL3 800X600K002618 VS-TY2662-V1+PD080SL3-22 800x600

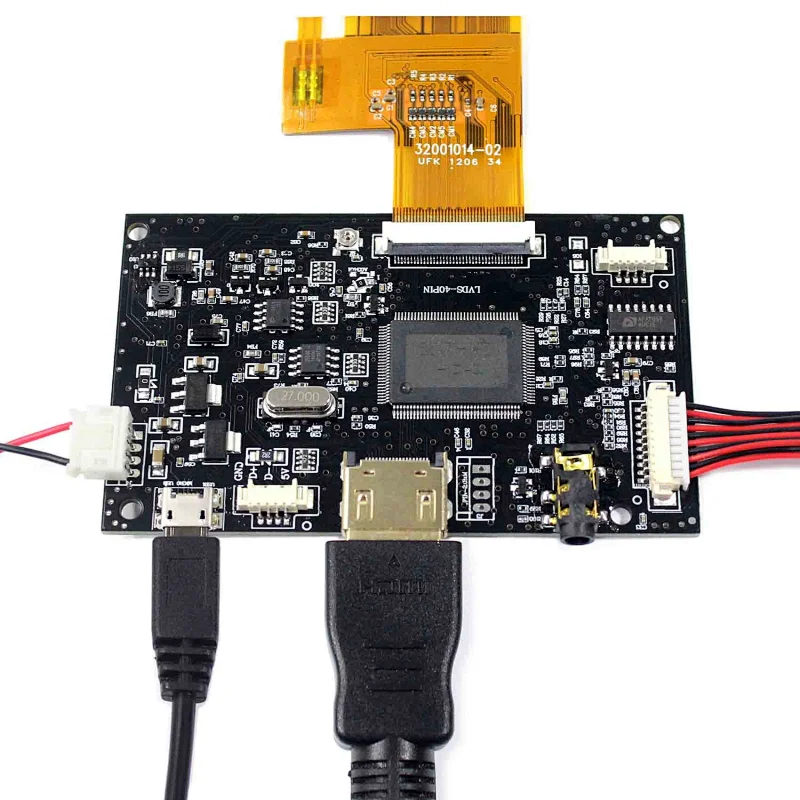

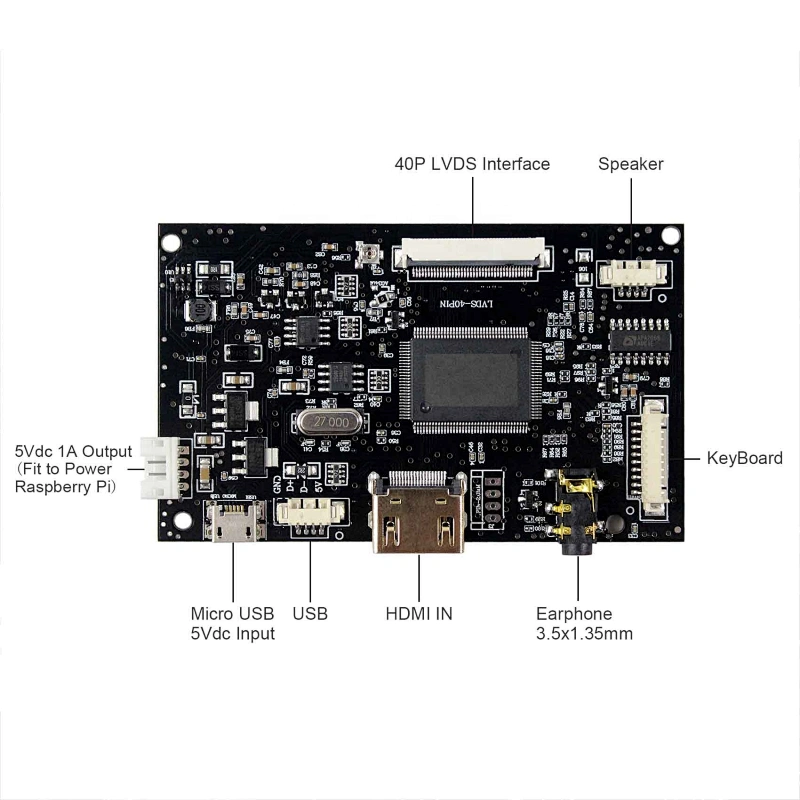

TFT LCD Controller Board:
H-D-compatible LCD Board Work for 40P TTL Interface LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible
Audio: Earphone
Power Connector: PH2.0 Micro USB
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
H-D-compatible LCD Board Work for 40P TTL Interface LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D-compatible
Audio: Earphone
Power Connector: PH2.0 Micro USB
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 88mm x 53mm x 7mm
8"EJ080NA-04C 1024X768 Display LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 183 × 141×3.7 (H×V×D)
Display Area 162× 121.5(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 183 × 141×3.7 (H×V×D)
Display Area 162× 121.5(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

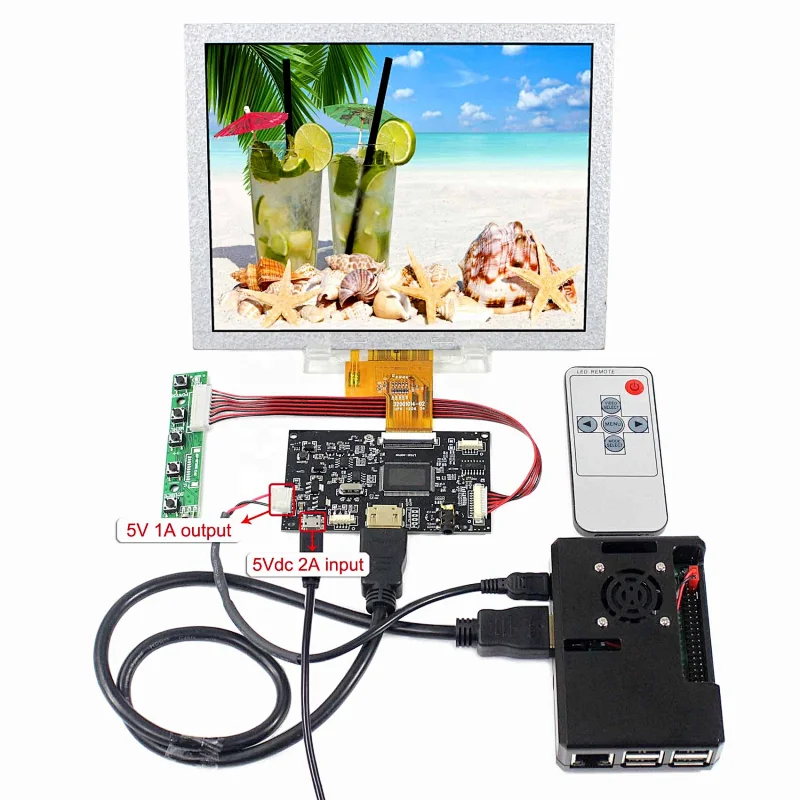

Packing list :
1× H-D-compatible LCD Controller Board VS-TY2660H-V815
1×8inch EJ080NA-04C 1024X768 LCD Screen
1× USB Power Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
1× H-D-compatible LCD Controller Board VS-TY2660H-V815
1×8inch EJ080NA-04C 1024X768 LCD Screen
1× USB Power Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
