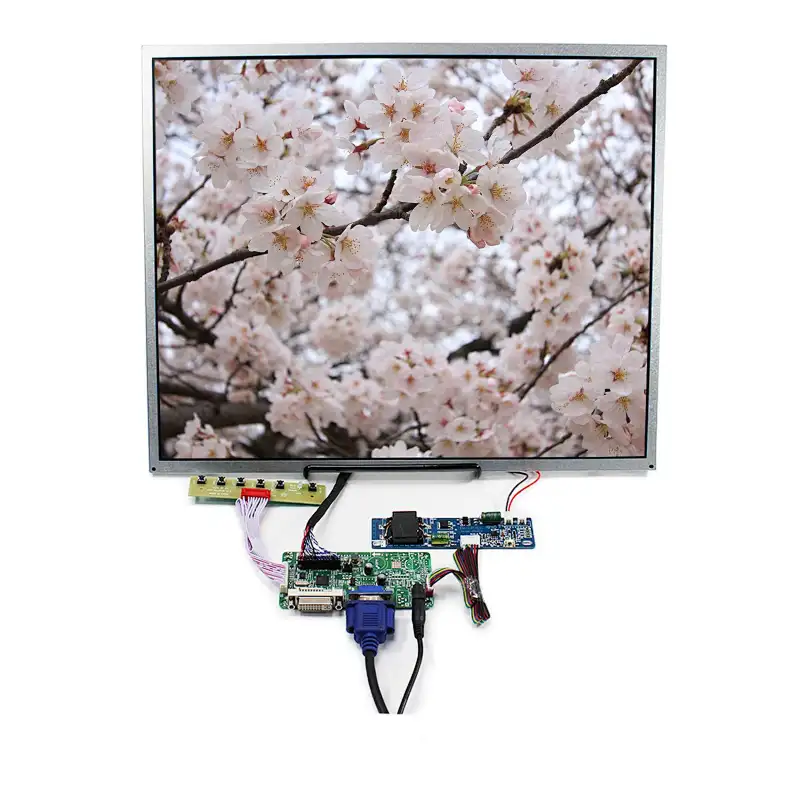

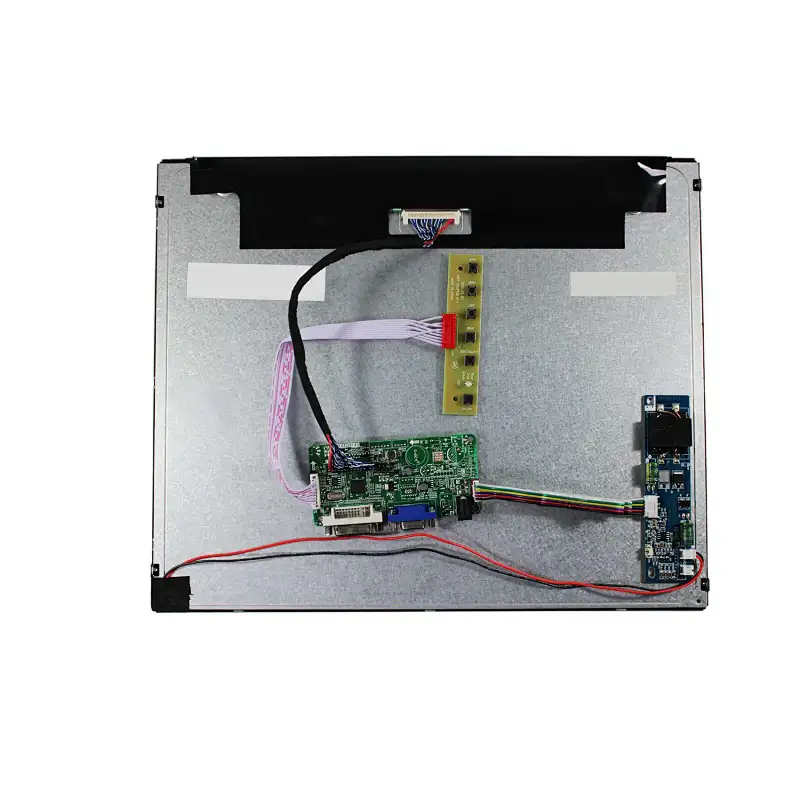

17.0" Industrial Screen M170ETN01.1 1280X1024 1000nit LCD Screen with VGA DVI LCD Controller Board

K002683-RT2281+M170ETN01.1 1280X1024
Quantity:
US $59.00 To via DHL Estimated Delivery on 5-7
Buy Now
Contact Now
add to cart
Product Name:1280x1024 Ips Screen 17inch Lcd With Vga Dvi Controller Board

17.0"M170ETN01.1 1280X1024 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 96PPI
Outline Size 358.5(W)×296.5(H) ×10.8(D) mm
Display Area 337.92(W)×270.336(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

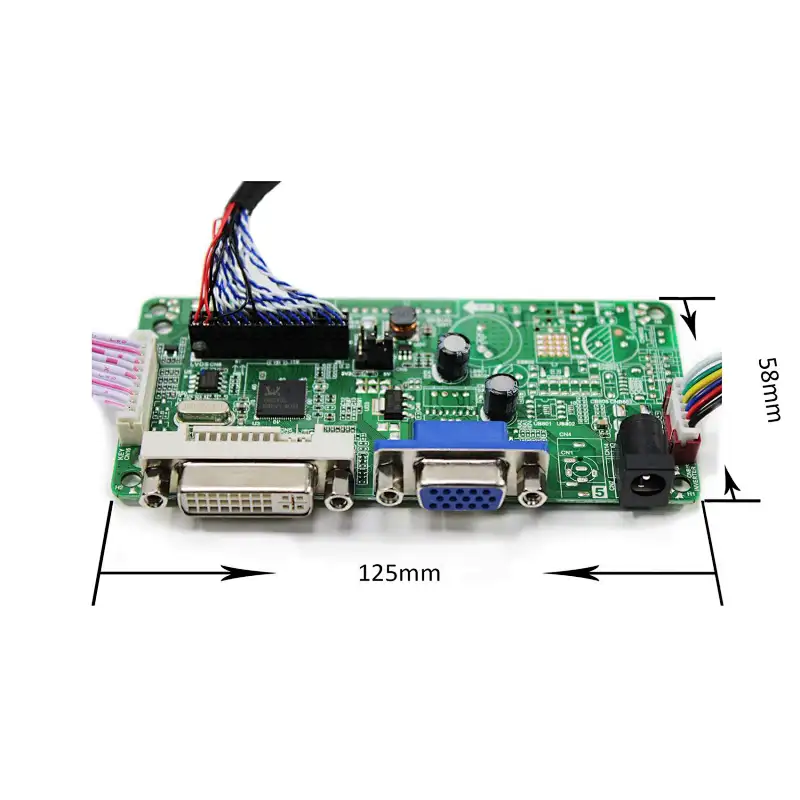

Board Size: 125mm x 58mm x 17mm

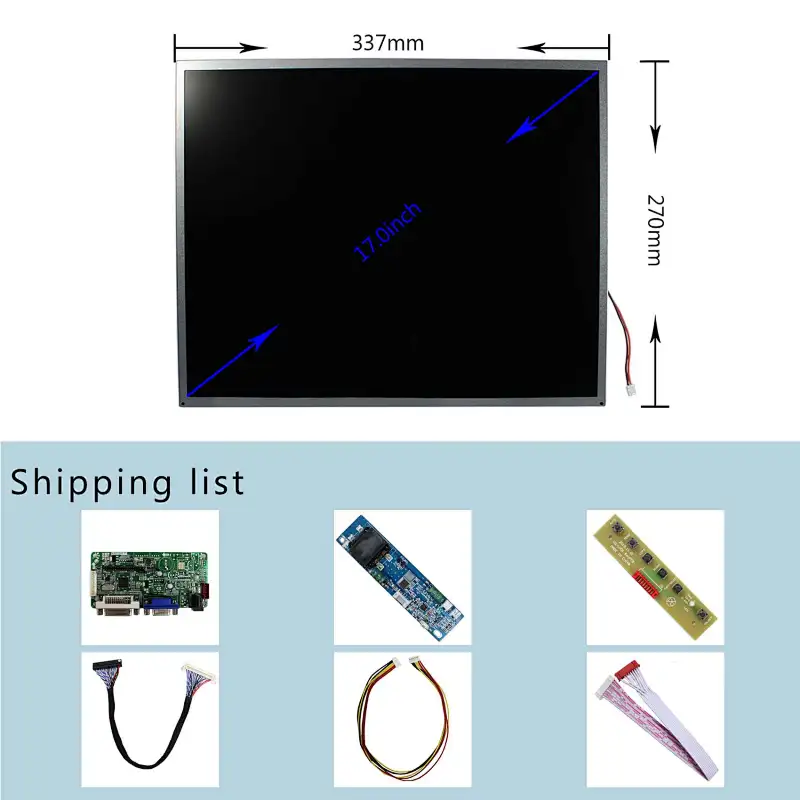

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×17.0"M170ETN01.1 1280X1024 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
