7" 800x600 50Pin and 60Pin TTL LCD Screen A070SN01 with HDMI Control Board lcd 800x600 800x600 electronics lcd 800x600 components lcd 800x600 ttl 800x600 lcd hdmi 50pin ttl lcd A070SN01 TFT LCD

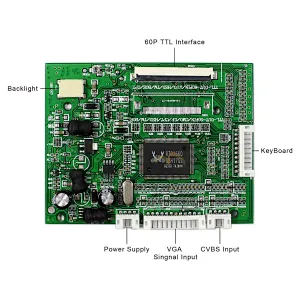

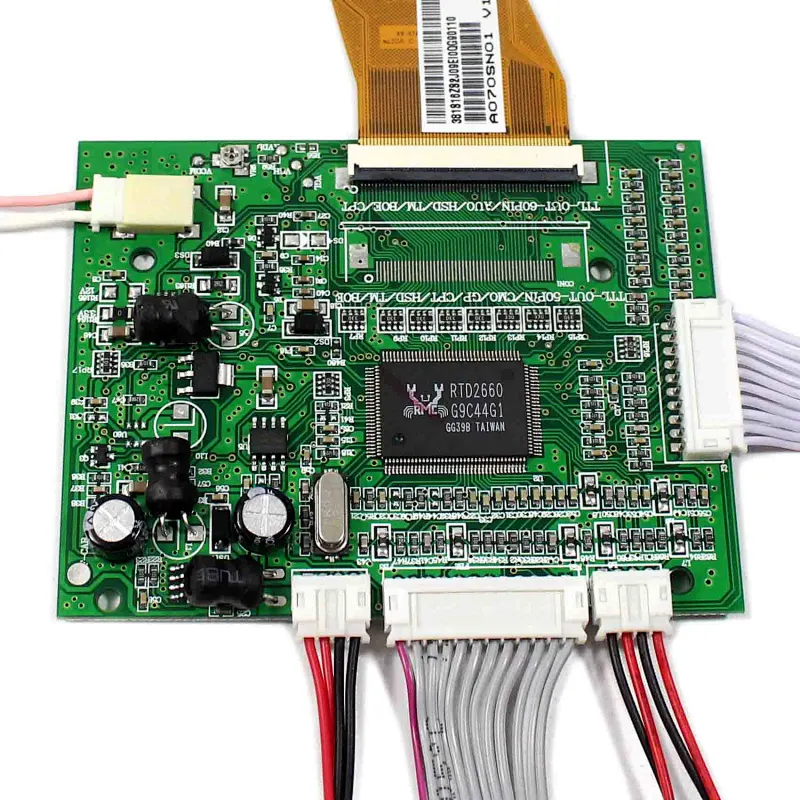

LCD Controller Board:

VGA 2AV LCD Board Work for 50Pin and 60Pin TTL LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:90mm x 70mm x 12mm

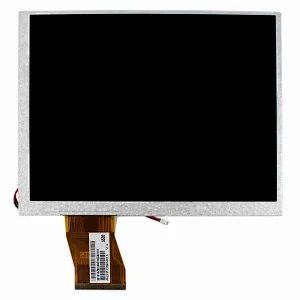

7"LCD Screen A070SN01 TFT LCD Display:

Display Mode N, Normally White, Transmissive

Resolution 800RGB)×600

Outline Size 154 × 119.2 × 5.4 (H×V×D)

Display Area 141.6 × 106.2 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins

Backlight WLED

Input Voltage  3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

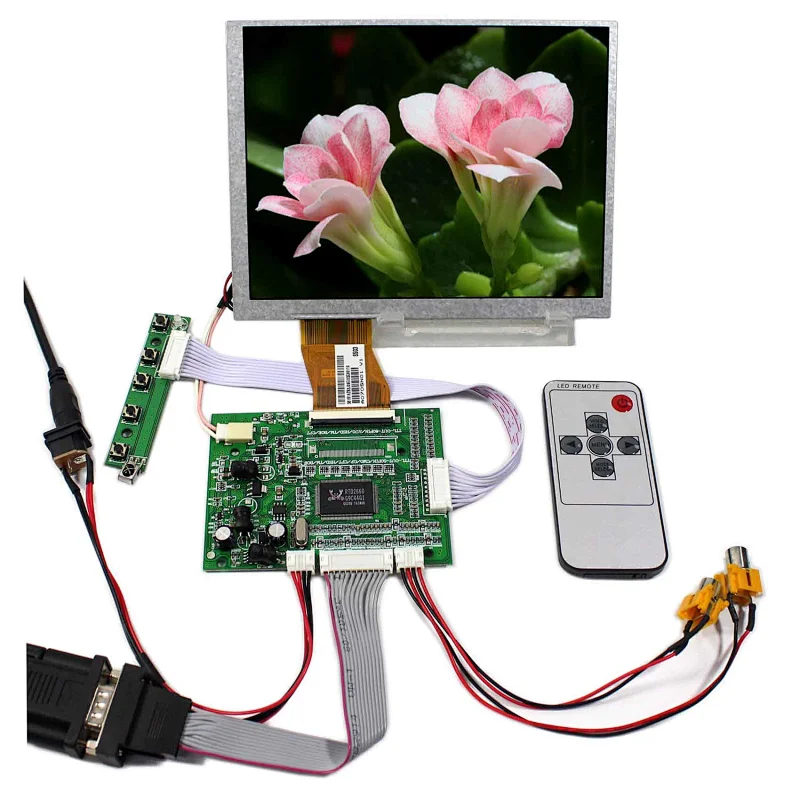

Packing list :

1× VGA+AV LCD Controller Board VS-TY5060-V1

1× 7inch A070SN01 800X600 4:3 LCD Screen
1× Power Supply Cable

1× VGA Cable

1× AV Cable

1× Keyboard With Cable

1× Remote Controller(Battery not included)
