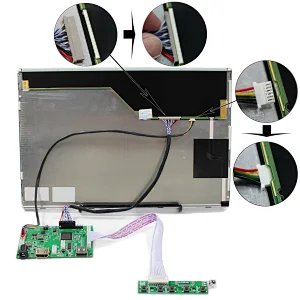

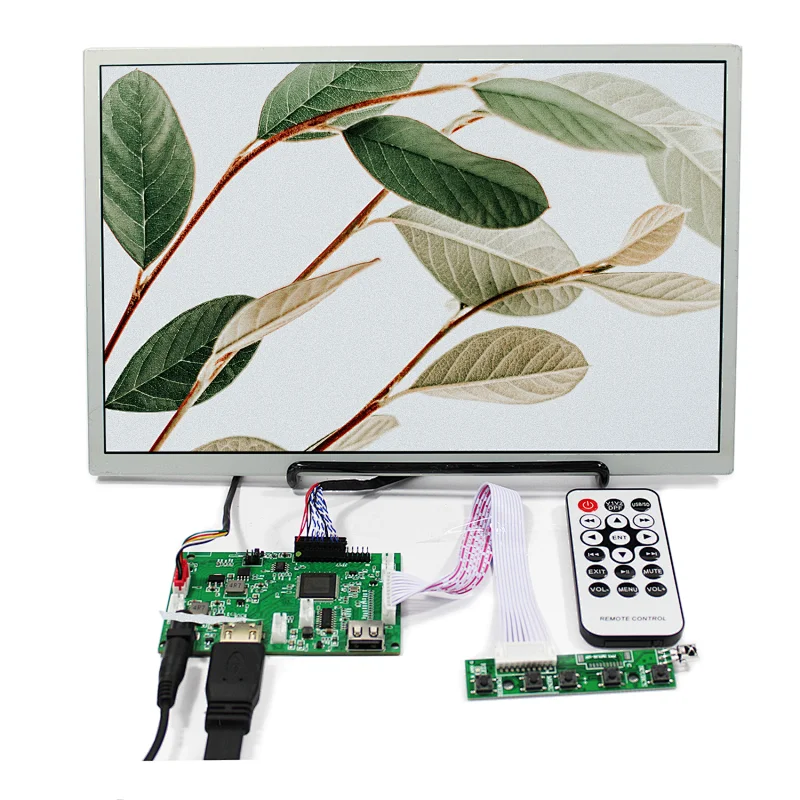

12.1 inch LQ121K1LG52 1280x800 TFT LCD Screen With H-D-compatible USB LCD Controller Board
K002723-VS-TY2660HU-823+LQ121K1LG52 1280*800 LCD
Quantity:
US $43.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
12.1" CLAA121XA02DW 1024X768 Capacitive Touch LCD Screen HDMI Type-C USB LCD Controller Board VS-TY2660-V862K003427 VS-TY2660H-V862+ CLAA121XA02 with TP 1024X768
VS121T-003A TN Display 12.1Inch 1024X768 Diy Lcd Screen With Lcd Driver Board KitsK003078 K003081 K003084 K003087 K003090
12.1inch CLAA121XA02 1024x768 LCD Screen With Capacitive Touch Panel with H-D-compatible +VGA+AV LCD Controller Board VS-TY2662-V1K003426 VS-TY2662V1-99+ CLAA121XA02 with TP 1024X768
12.1inch CLAA121XA02 1024x768 LCD Screen With Capacitive Touch Panel with H-D-compatible Audio LCD Controller Board VS-TY2660H-V661K003425 VS-TY2660H-V661+CLAA121XA02 with TP 1024X768

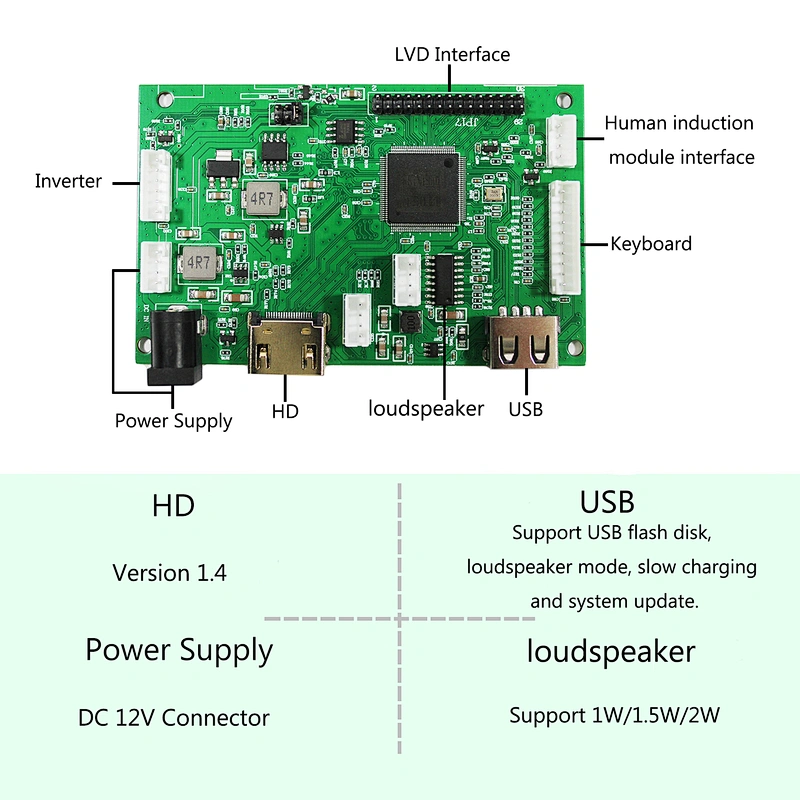

LCD Controller Board:
H-D-compatible USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: H-D-compatible USB
H-D-compatible: Support H-D-compatible 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm
H-D-compatible USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: H-D-compatible USB
H-D-compatible: Support H-D-compatible 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm
12.1 inch LQ121K1LG52 1280X800 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 278× 184×9.6 (H×V×D)
Display Area 216.12 × 163.2 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/65/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

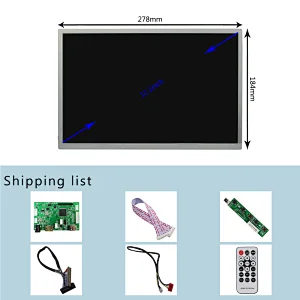

Packing list :
1× H-D-compatible LCD Board for 30Pin VS-TY2660HU-823
1× 12.1inch LQ121K1LG52 1280X800 LCD Screen With Tocuh Panel VS104TP-A2
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control
