12.1" LQ121S1L75 800X600 Tft Lcd  Screen Monitor with HDMI USB lcd controller board

Product Name:800x600 12.1"Tft Lcd  Screen Monitor With Lcd Control Board

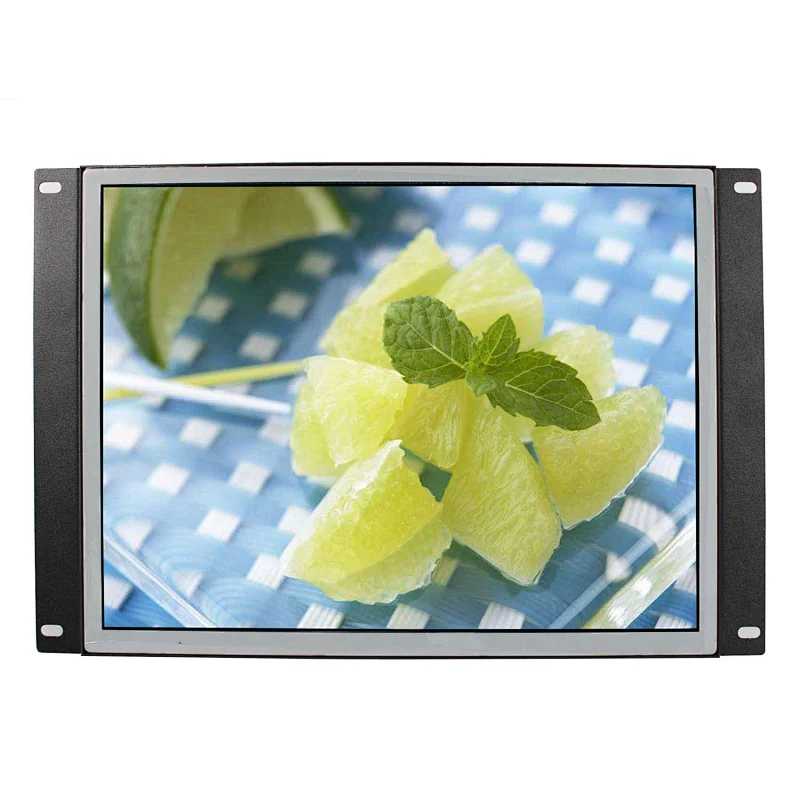

12.1"LQ121S1L75 800X600 LCD Screen:

• Display Mode TN, Normally White, Transmissive
• Resolution 800（RGB)×600
• Outline Size 265× 205×10 (H×V×D)
• Display Area 246 × 184.5 (H×V)
• Brightness 330 cd/m² (Typ.)
• Contrast Ratio 800:1 (Typ.) (TM)
• Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
• Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
• Backlight WLED
• Input Voltage 3.3V (Typ.)

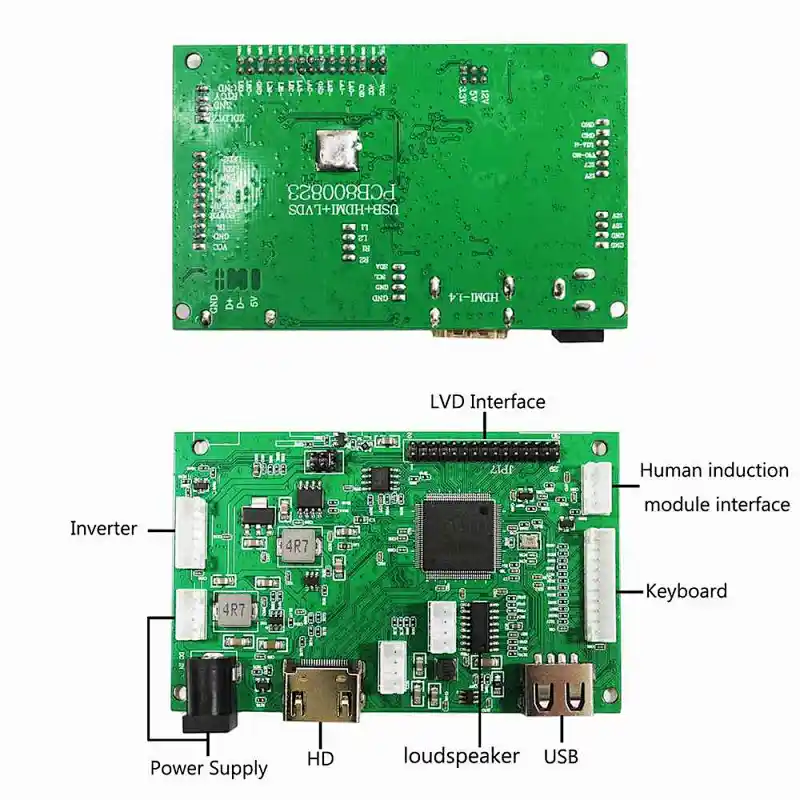

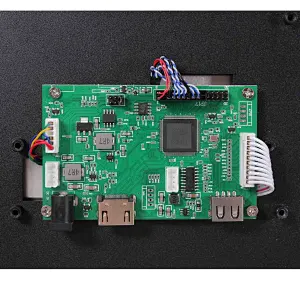

• HDMI USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS Interface LCD Screen
• Input Power Adapter: 12Vdc More than 2A.
• Come In Standby Model When Not Input Signal
• Standby Model <1W
• Voltage To LCD Panel：3.3V 5V 12V (Jumper optional)
• Video Input: HDMI USB
• HDMI: Support HDMI 1.4
• USB: Support Video Playback, Picture Playback, Text Playback
• Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed)
• Audio: Speaker Support 8ohm 2W/ 4ohm 2W
• OSD: Brightness Contrast Auto Language And So On
• Language: English French German Spanish Italian And So On
• Board Size: 90mm x 56mm x 14mm

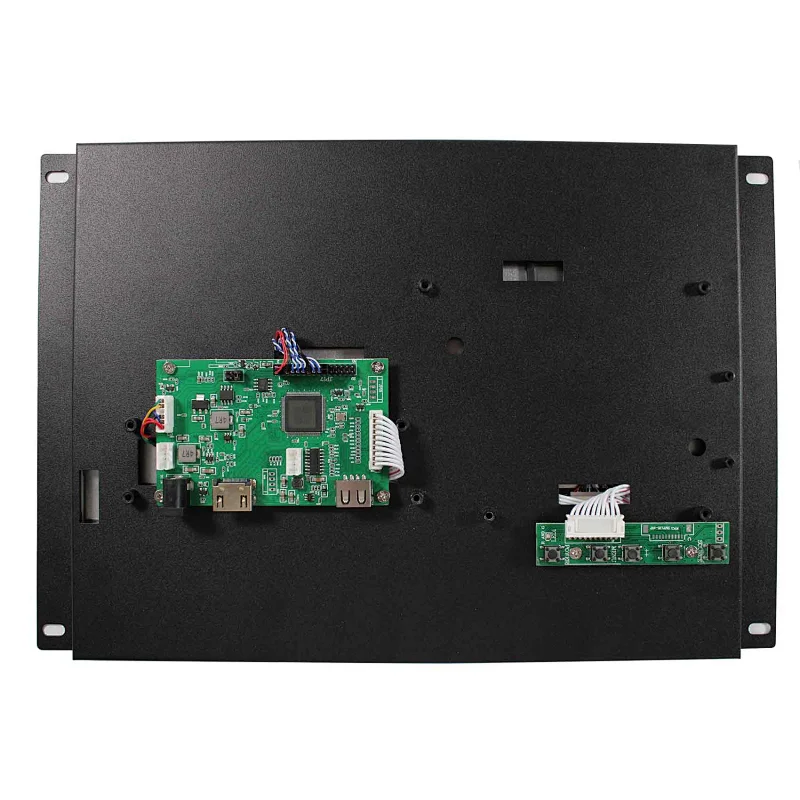

• 1× 12.1"800x600 LCD Screen With HDMI USB LCD Controller Board
