VGA 2AV LCD Board Work for 4.3inch 40Pin TTL TFT LCD Screen 40pin lcd screen lcd screen for tft ttl lcd lcd ttl tft lcd vga manufacturers 4.3" TFT LCD

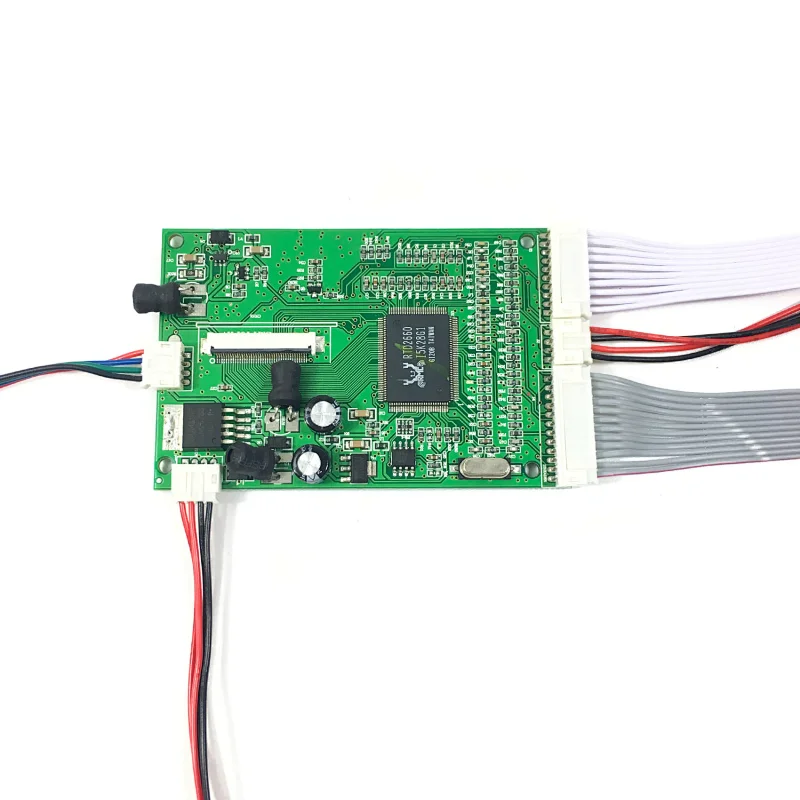

LCD Controller Board:

VGA 2AV LCD Board Work for 40Pin TTL LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 83mm x 58mm x 10mm

4.3"VS043T-005AT 480X272 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 480RGB)×272

Outline Size 105.5 × 67.2×3.1 (H×V×D)

Display Area 95.04 × 53.86 (H×V)

Brightness 500 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

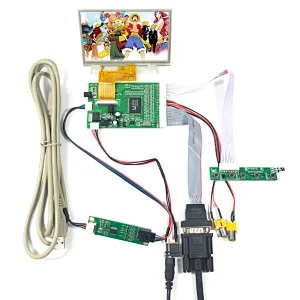

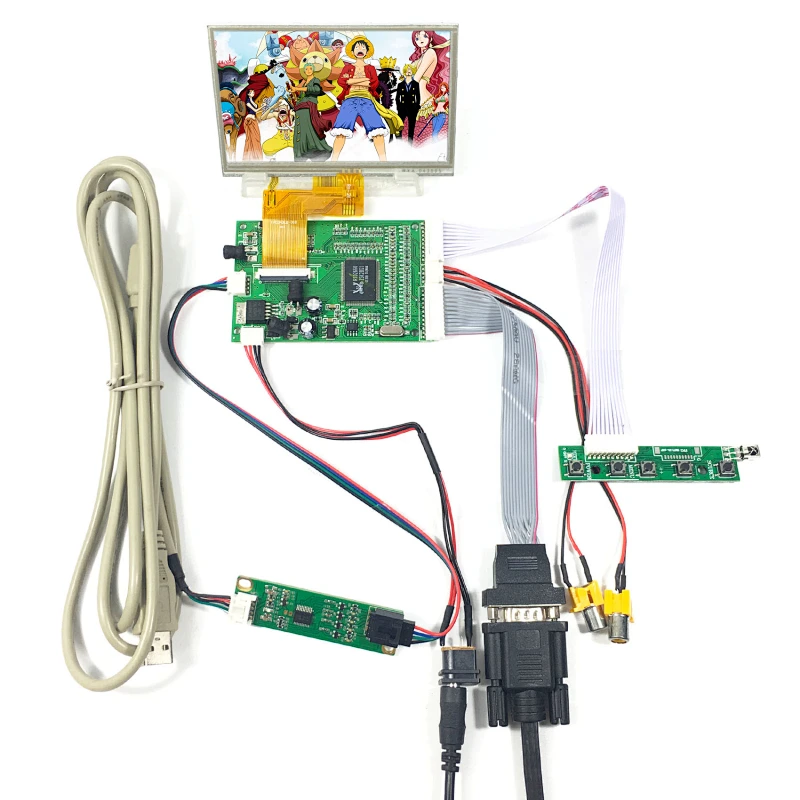

Packing list :

1×VGA+2AV LCD Controller Board VS-TY40-V1

1× 4.3inch VS043T-005AT 480X272 LCD Screen With 4-Wire Resistive Touch Sensor

1× VGA Cable

1× AV Signal Cable

1× Power Cable

1× USB Controller Card

1× USB Cable

1× Extend Touch Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
