5inch HSD050IDW 800X480 LCD Screen Touch Panel with VGA 2AV LCD Controller Board lcd 5inch lcd 800x480 5inch lcd screen with driver board 5inch lcd touch screen lcd panel controller board 800x480 touch screen panel
K000792- VS-TY40-V1+HSD050IDW1+VS050TP-A4
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
5inch AT050TN22 640X480 TFT-LCD Screen with VGA AV LCD Controller Board lcd vga av controller board lcd 5inch 640x480K002943-KYV-N2 V1 + AT050TN22
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller BoardK002930-VS-N5V3.1+ZJ050NA-08C
5inch PD050OX5 480x480 LCD Screen 5" Hight Brightness 900nits with Inverter BoardK002610 PD050OX5 TCON V6
VS050T-001A 800X480 5inch TFT-LCD Screen VGA+AV LCD Controller Board lcd 5inch 800x480 5 inch 800x480 lcd screen 5inch screen with vga av controller board lcd controller pcb board lcd 800x480 led lcd controller boardK001549- KYV-N2 V6+VS050T-001A

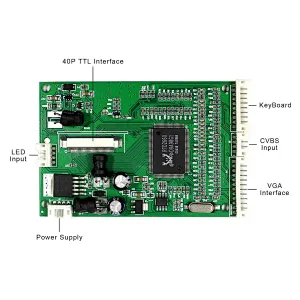

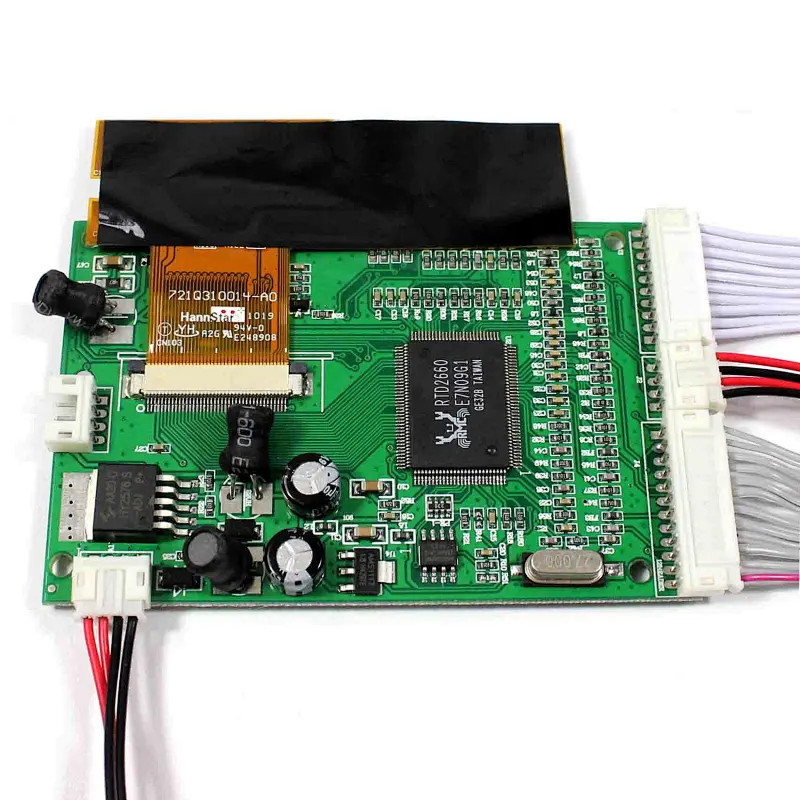

LCD Controller Board:
VGA 2AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 83mm x 58mm x 10mm
5"HSD050IDW1 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 118.5 ×77.55×3.7 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

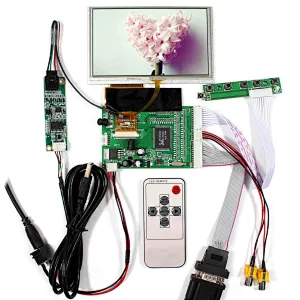

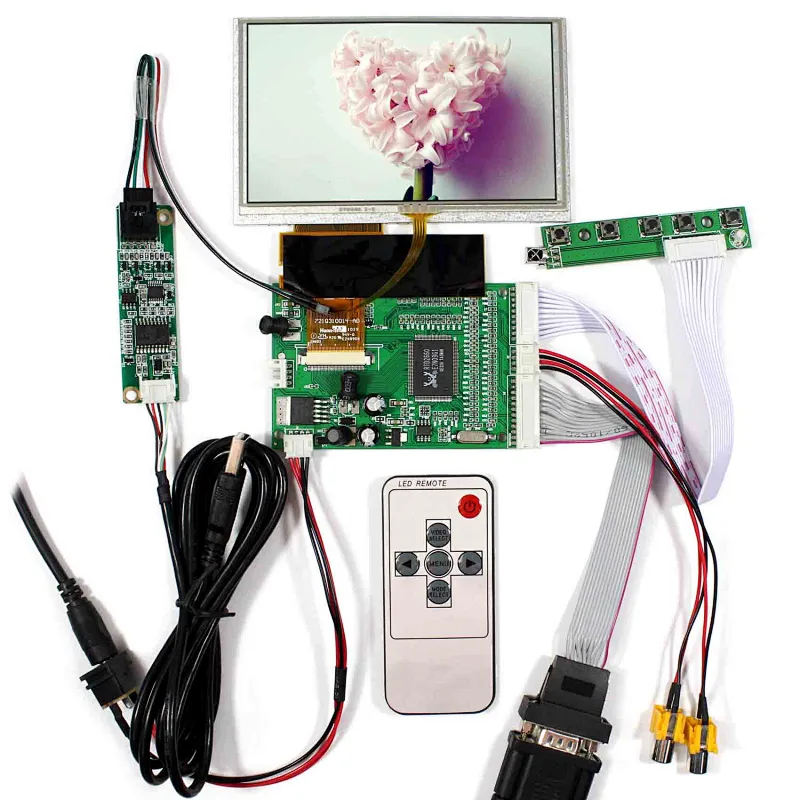

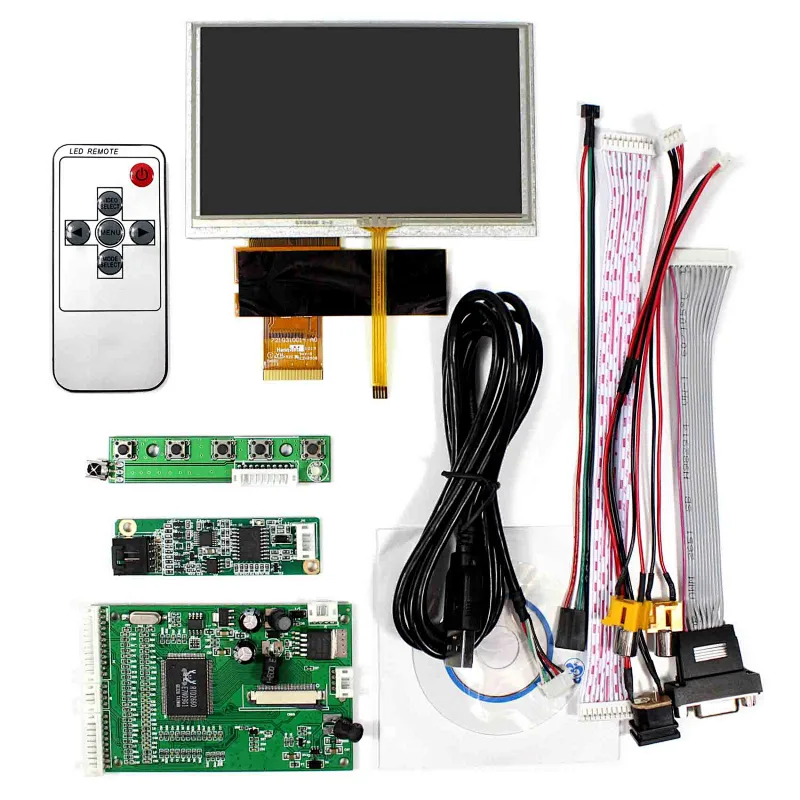

Packing list :
1× VGA+2AV LCD Controller Board VS-TY40-V1
1× 5inch HSD050IDW 800X480 LCD Screen With Touch Panel VS050TP-A4
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 83mm x 58mm x 10mm
5"HSD050IDW1 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 118.5 ×77.55×3.7 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× VGA+2AV LCD Controller Board VS-TY40-V1
1× 5inch HSD050IDW 800X480 LCD Screen With Touch Panel VS050TP-A4
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
