5inch VS050T-002A 800X480 TFT-LCD Screen With HDMI+VGA+2AV LCD Controller Board screen lcd 800x480 lcd 5inch lcd 800x480 resolution 800x480 pixels lcd screen 5inch lcd screen with hdmi vga av controller board
K000109- VS-TY2662-V1+ AT050TN43 VS050T-002A+Remote control
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
5inch AT050TN22 640X480 TFT-LCD Screen with VGA AV LCD Controller Board lcd vga av controller board lcd 5inch 640x480K002943-KYV-N2 V1 + AT050TN22
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller BoardK002930-VS-N5V3.1+ZJ050NA-08C
5inch PD050OX5 480x480 LCD Screen 5" Hight Brightness 900nits with Inverter BoardK002610 PD050OX5 TCON V6
VS050T-001A 800X480 5inch TFT-LCD Screen VGA+AV LCD Controller Board lcd 5inch 800x480 5 inch 800x480 lcd screen 5inch screen with vga av controller board lcd controller pcb board lcd 800x480 led lcd controller boardK001549- KYV-N2 V6+VS050T-001A

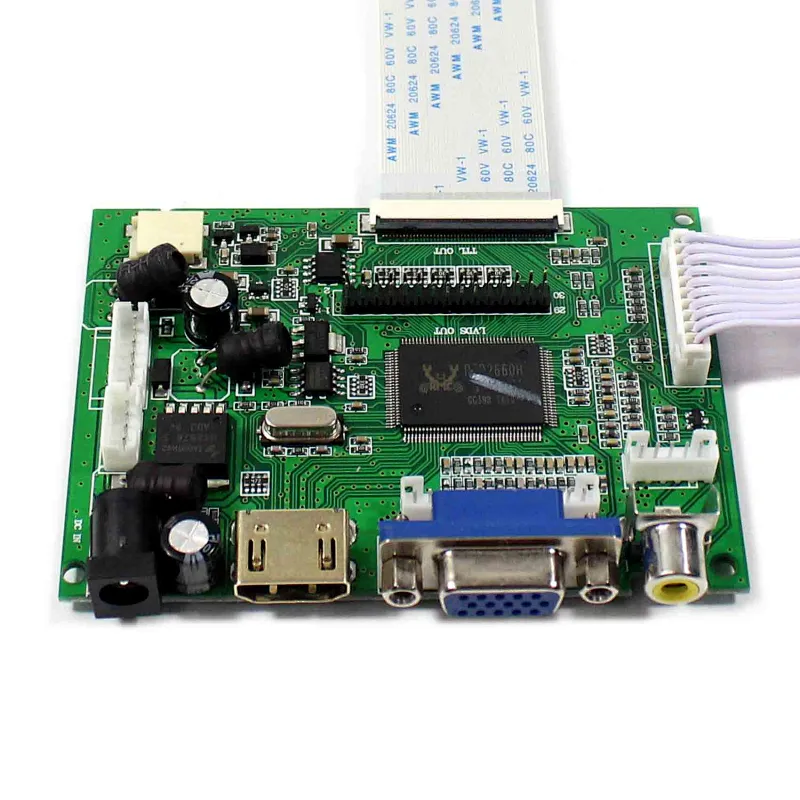

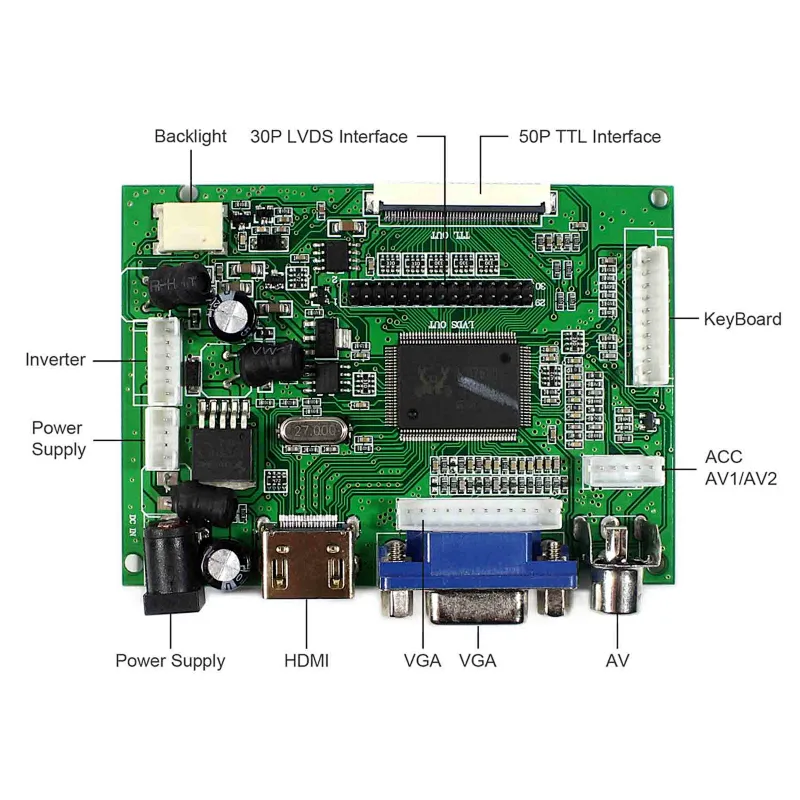

LCD Controller Board:
H-DMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-DMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
5"VS050T-002A V1 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×480
Outline Size 120.7 × 76.3×3.3 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

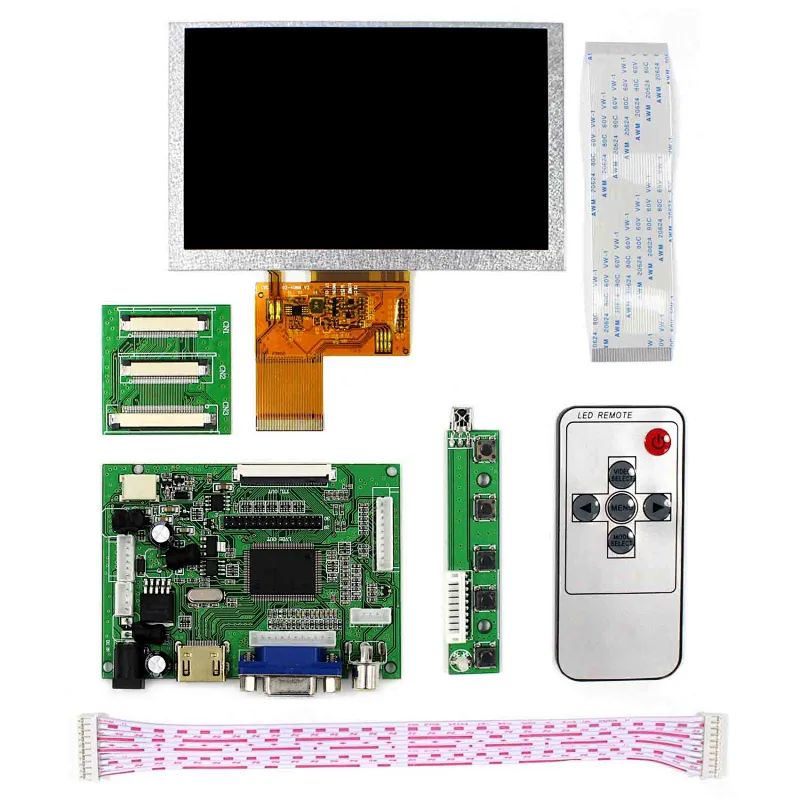

Packing list :
1×HD-MI+VGA+2AV LCD Controller Board VS-TY2662-V1
1× 5inch VS050T-002A 800X480 LCD Screen

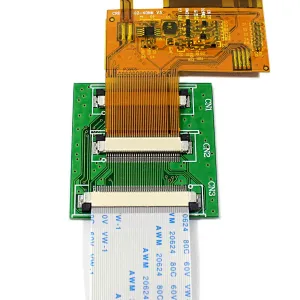

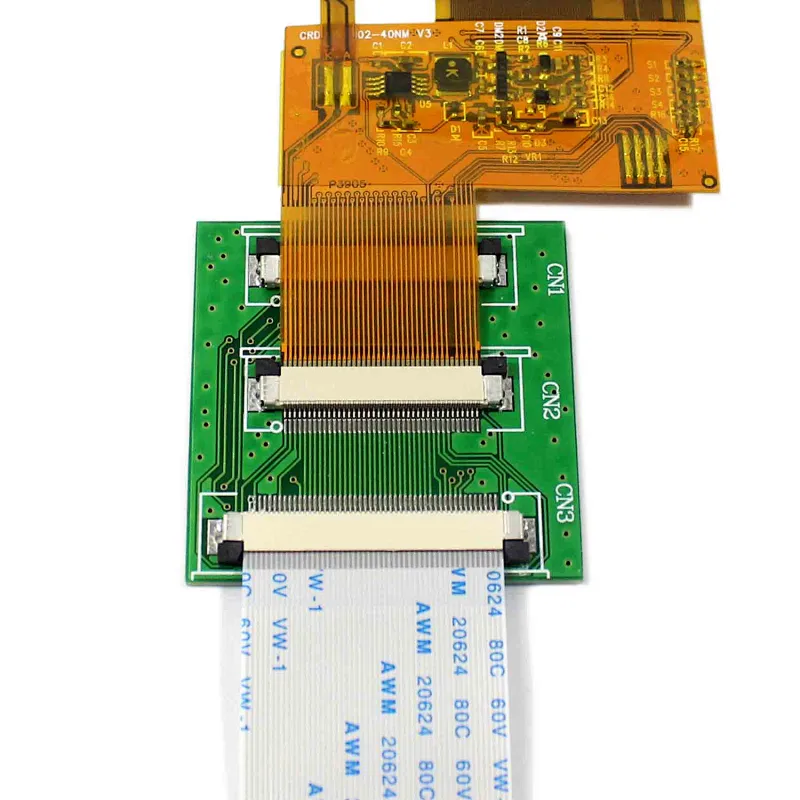

1× 50Pin To 40Pin Converter Board
1× Keyboard With Cable
1× Remote Control(Battery Not included)
H-DMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-DMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
5"VS050T-002A V1 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×480
Outline Size 120.7 × 76.3×3.3 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1×HD-MI+VGA+2AV LCD Controller Board VS-TY2662-V1
1× 5inch VS050T-002A 800X480 LCD Screen
1× 50Pin To 40Pin Converter Board
1× Keyboard With Cable
1× Remote Control(Battery Not included)
