HDM I VGA LCD Controller with 15.6" B156HAN01.2 1920X1080 IPS LCD Screen 15.6inch B156HAN01.2 1920X1080 15.6inch B156HAN01.2 B156HAN01.2 B156HAN01.2 1920X1080

Model NO.
K001466-VS-RTD2556HV-V1+B156HAN01.​2
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

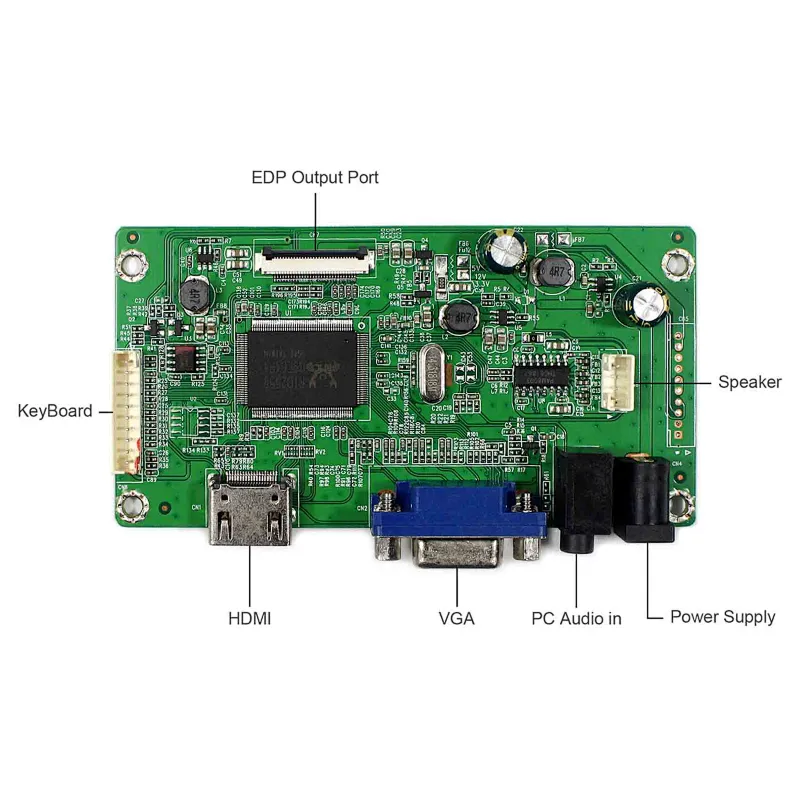

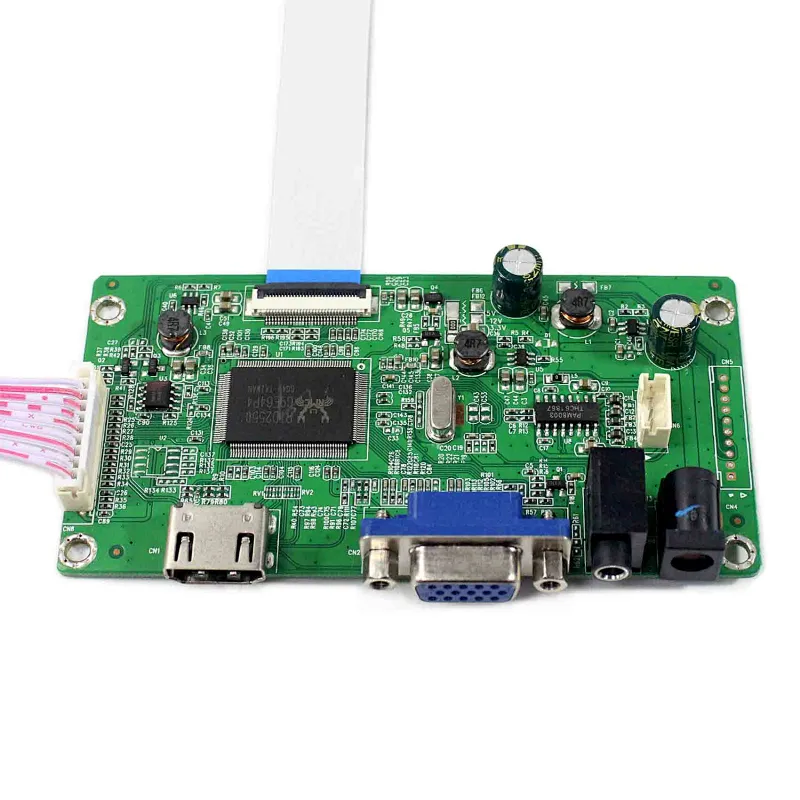

LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm

15.6"LCD Screen B156HAN01.2:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 359.5 × 223.8 × 3 (H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

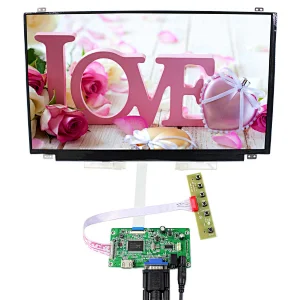

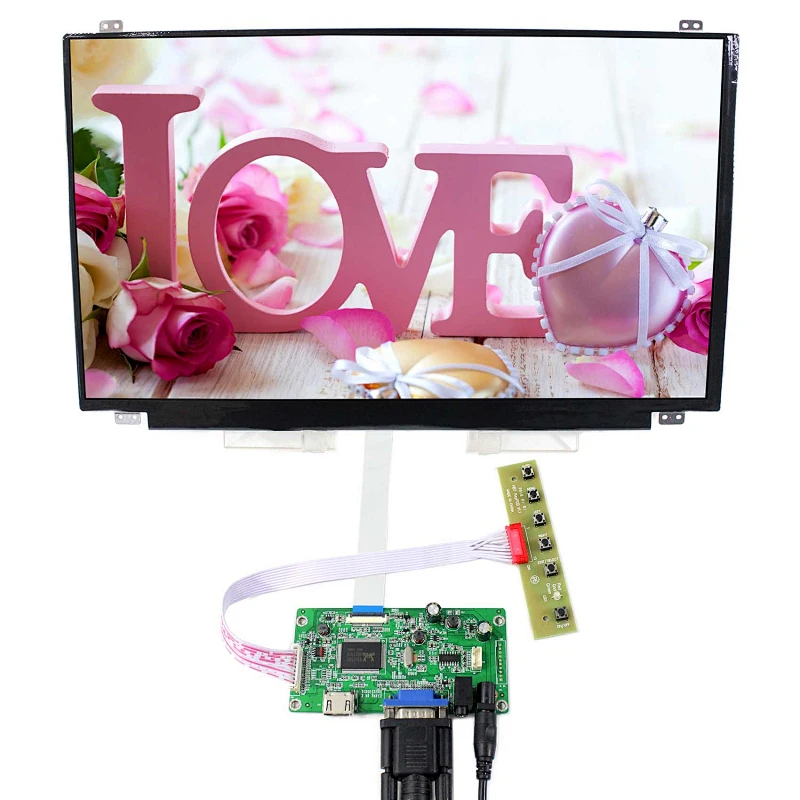

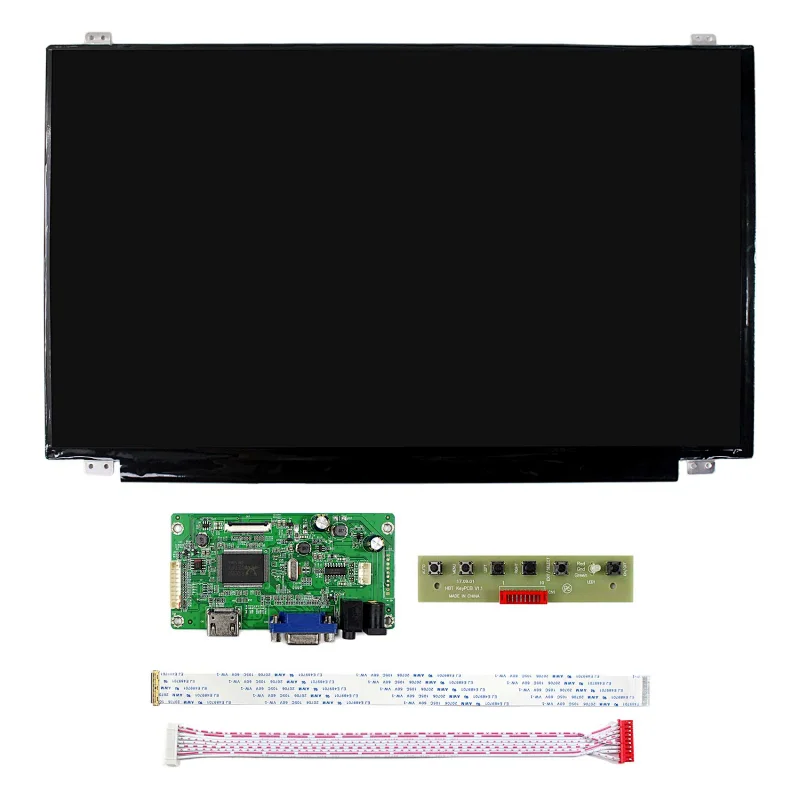

Packing list :
1× HDMI VGA LCD Controller Board VS-RTD2556HV-V1
1× 15.6inch B156HAN01.2 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
