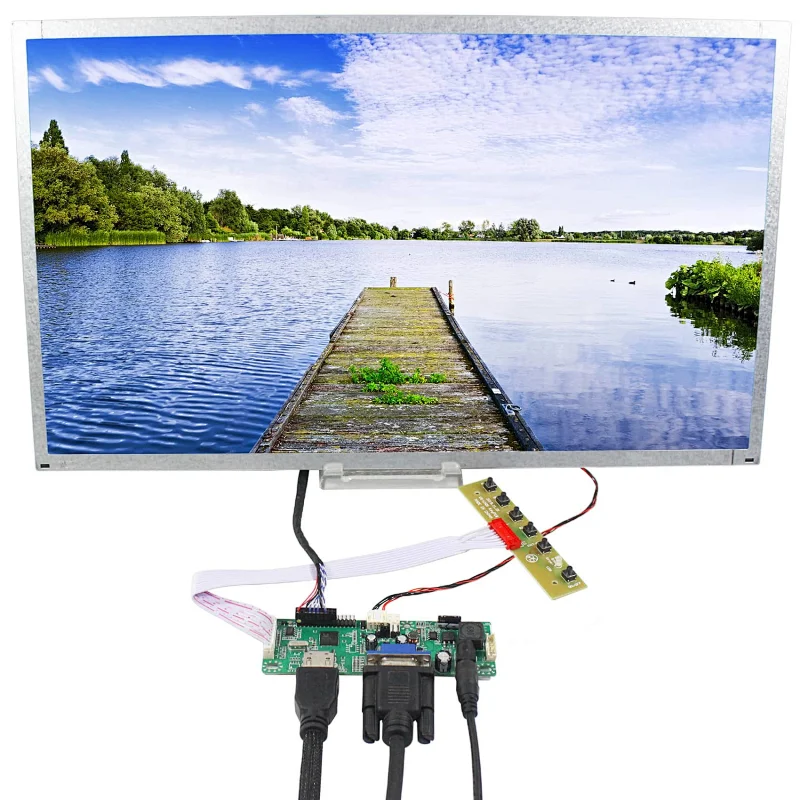

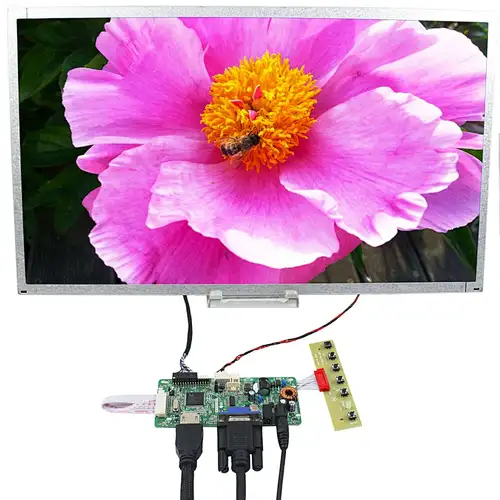

HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display
HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display

HDMI VGA Controller Board with 18.5inch M185BGE-L22 1366X768 LVDS LCD Display

Model NO.
K002360-VS-HGL81CL-V1.2+M185BGE-L22
Quantity:

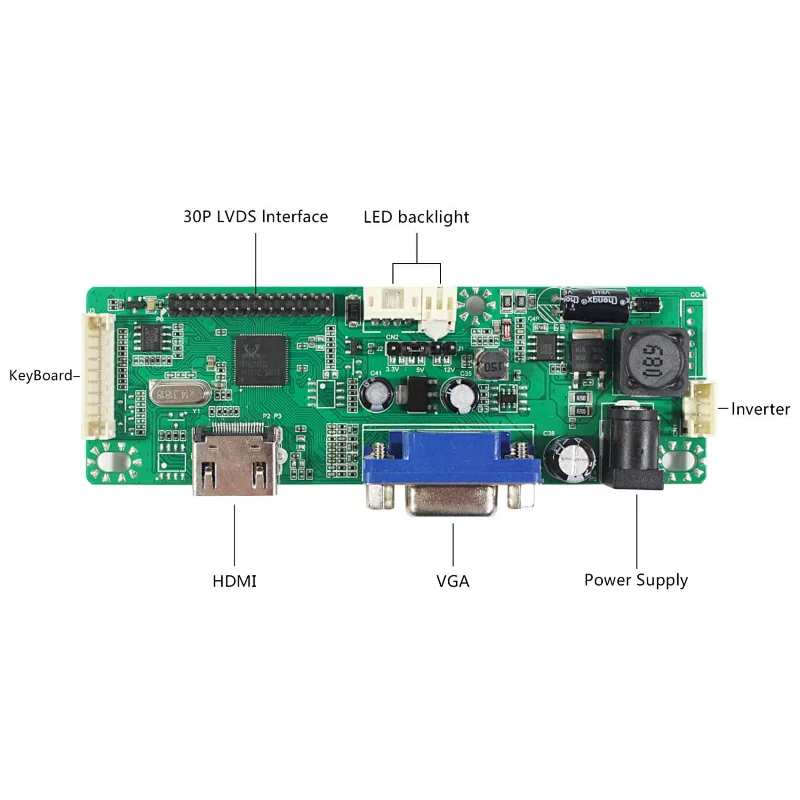

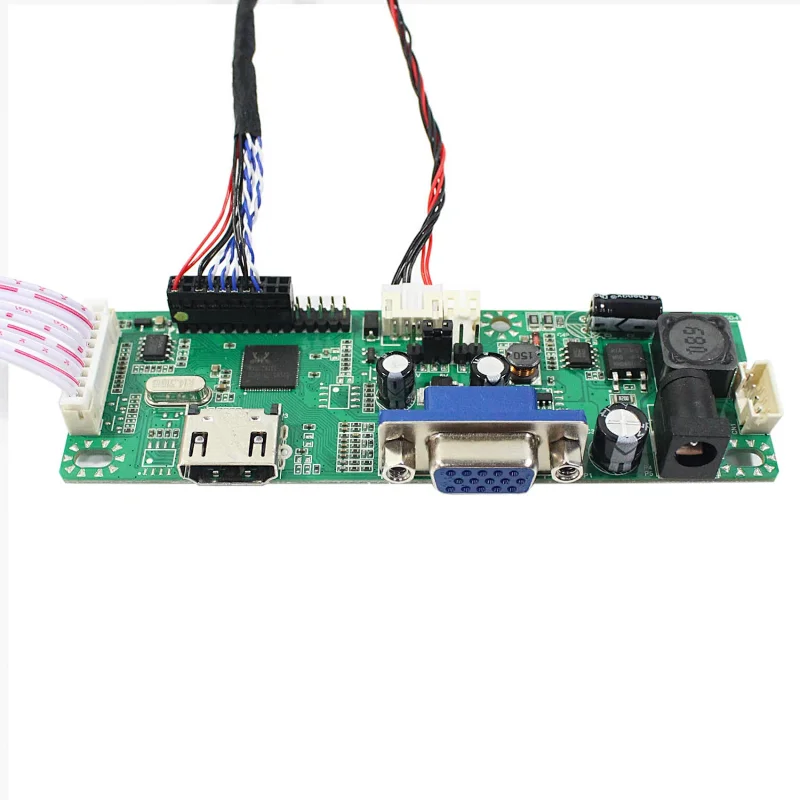

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 36mm x 15mm
18.5" M185BGE-L22 1366X768 LCD Screen:
Display Mode  ADS, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 430.37×254.6×11(H×V×D)
Display Area 409.8×230.4(H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80(Typ.)(CR≥10) [Left / Right / Up / Down]

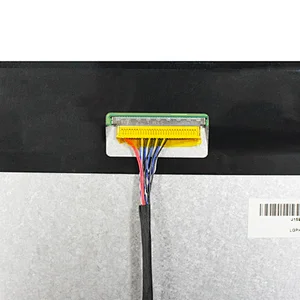

Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)
Packing list :
1× HDMI VGA LCD Controller Board VS-HGL18CL-V1.2
 18.5inchM185BGE-L22 1920X1080 LCD Screen
 LVDS Cable
 Backlight Cable
 Keyboard With Cable
