12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board
12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board

12.1inch AA121TD02 1280x800 1000nit LCD Screen With HDMI VGA DVI LCD Controller Board

Model NO.
K002665 M.NT68676+AA121TD02 1280X800
Quantity:

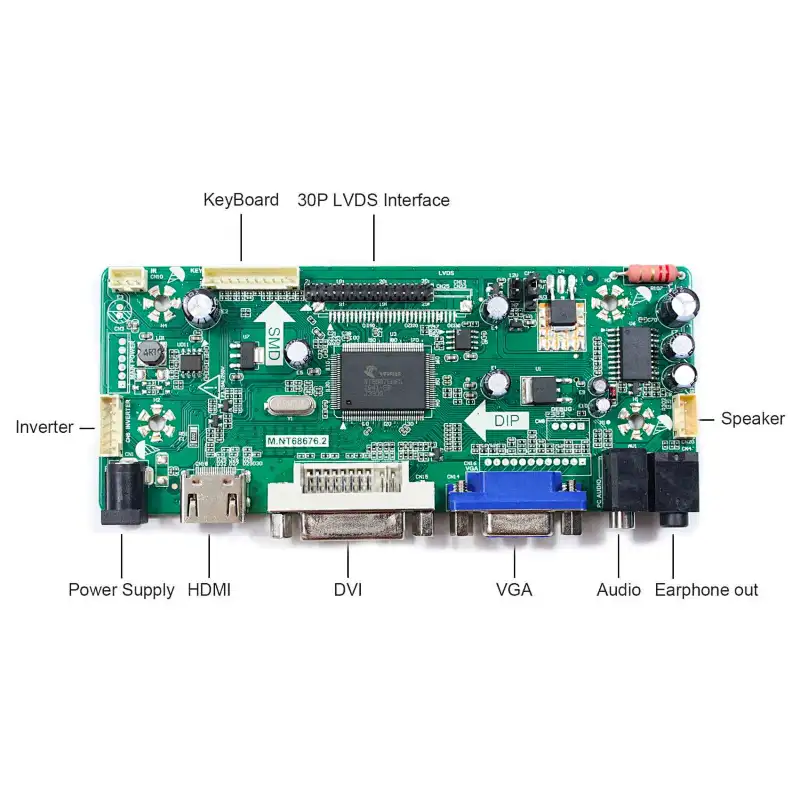

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

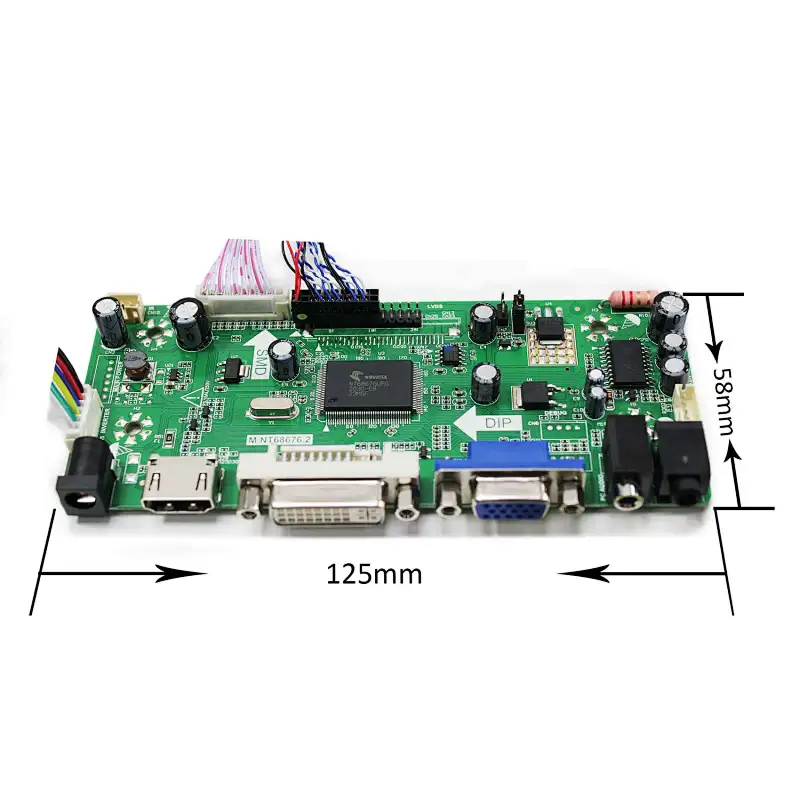

Board Size: 125mm x 58mm x 17mm

12.1" AA121TD02 1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 283×185.1×10(H×V×D)
Display Area 216.12 ×163.2 (H×V)
Brightness 1000 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR10) [Left / Right / Up / Down]

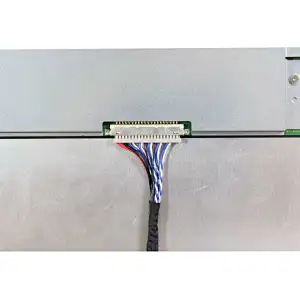

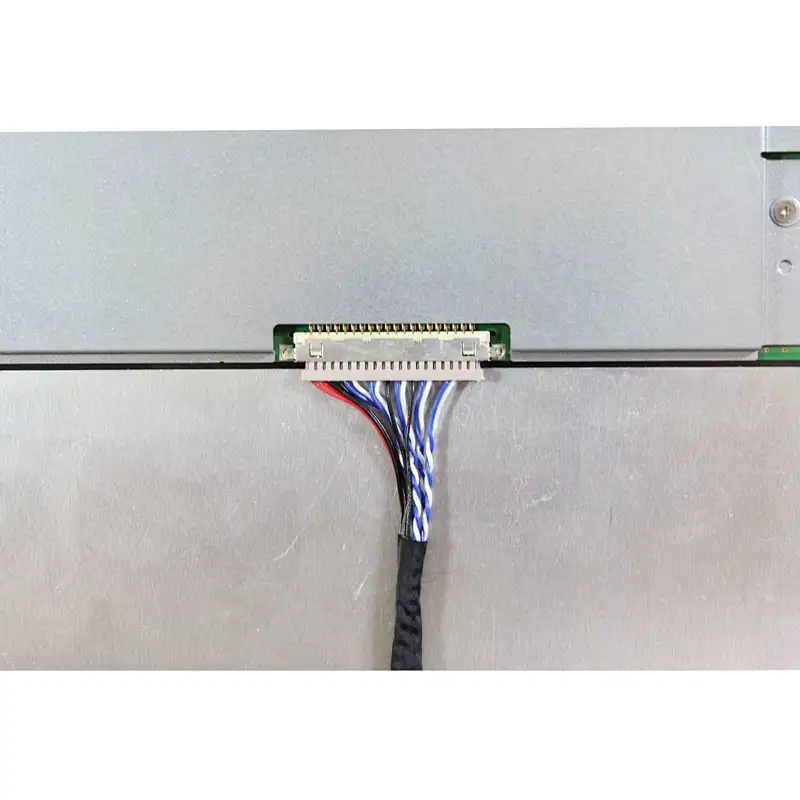

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

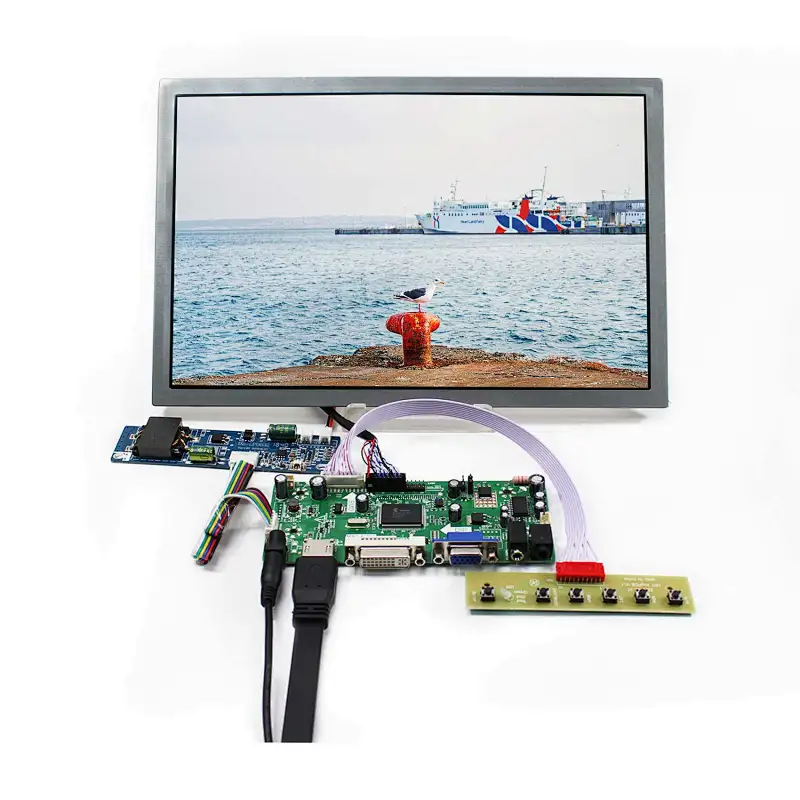

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
12.1inch AA121TD02 1280x800 LCD Screen
 LVDS Cable
 Backlight Cable
 Keyboard With Cable
