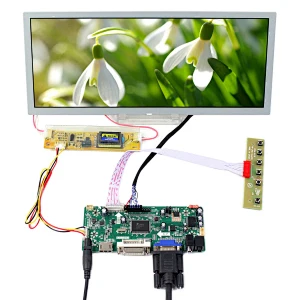

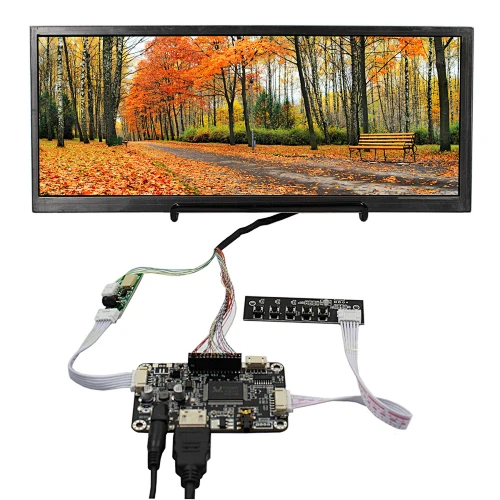

12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board

12.3inch LQ123K1LG03 1280X480 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K002143-M.NT68676+LQ123K1LG03
Quantity:

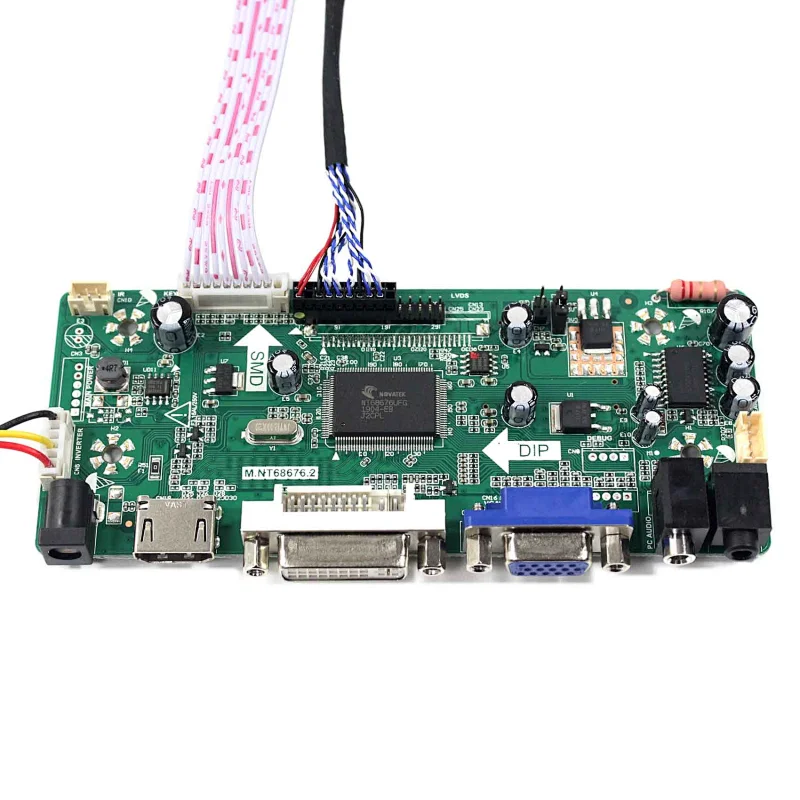

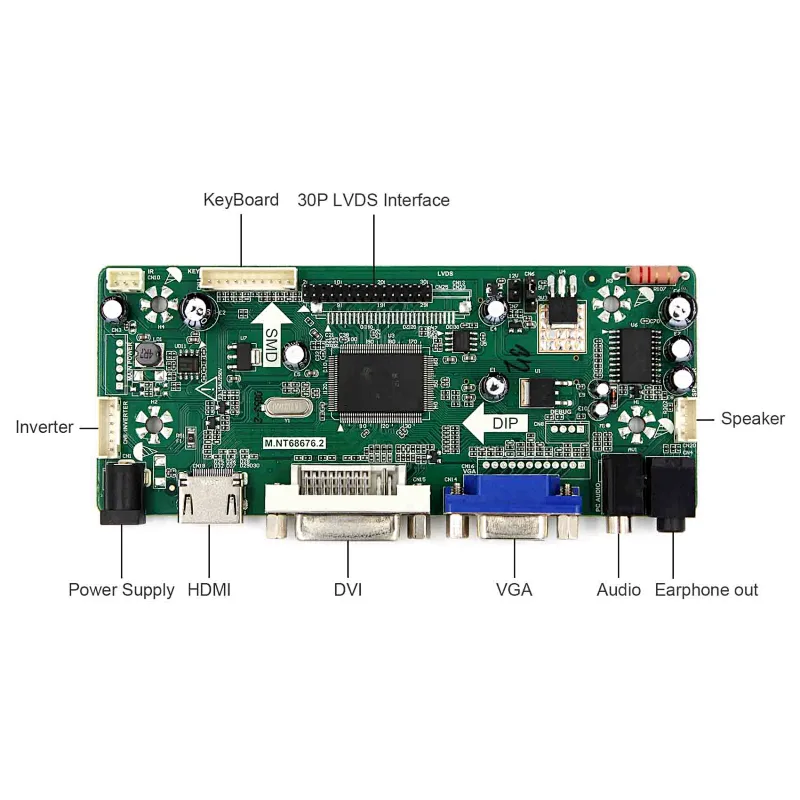

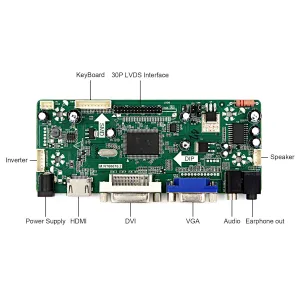

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

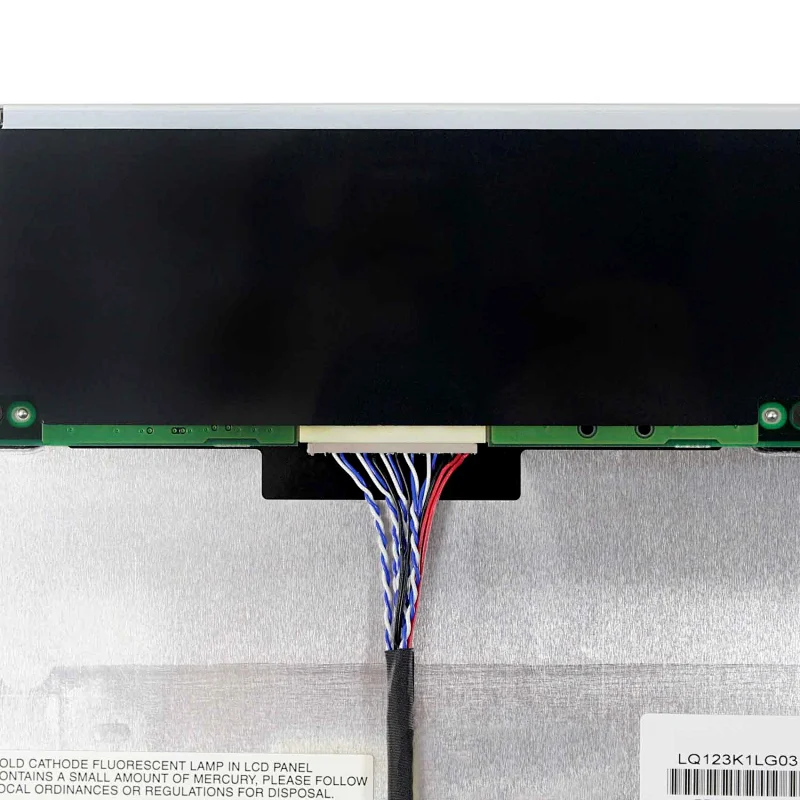

12.3"LQ123K1LG03 1280X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×480
Outline Size 312.4 ×130.4×8 (H×V×D)
Display Area 291.84 × 109.44 (H×V)
Brightness 330 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  20 pins LVDS (1 ch, 8-bit) , Connector
Backlight  CCFL
Input Voltage  3.3V (Typ.)

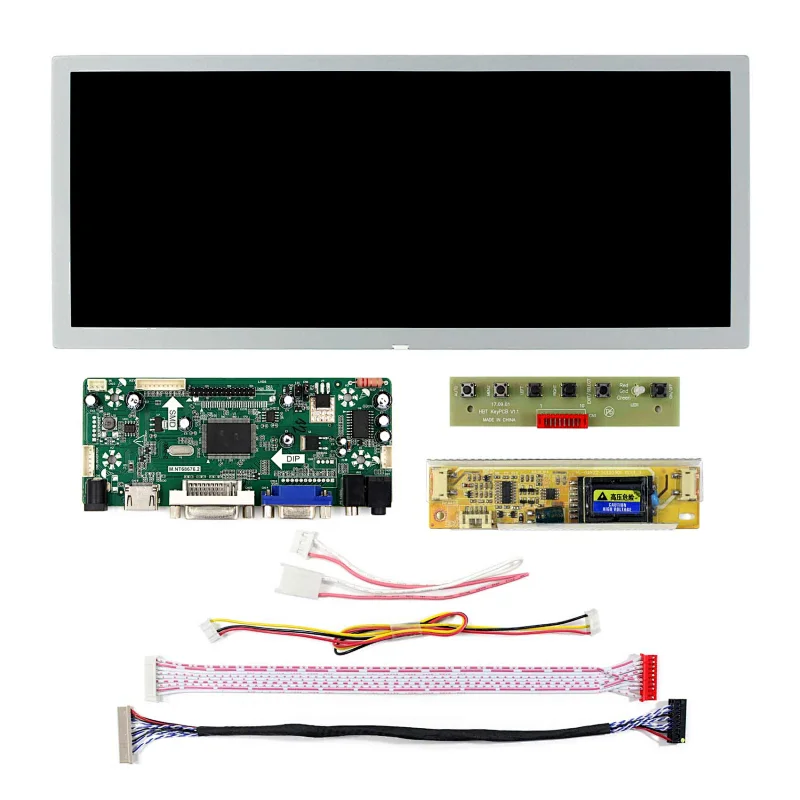

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 12.3inchLQ123K1LG03 1280X480 LCD Screen

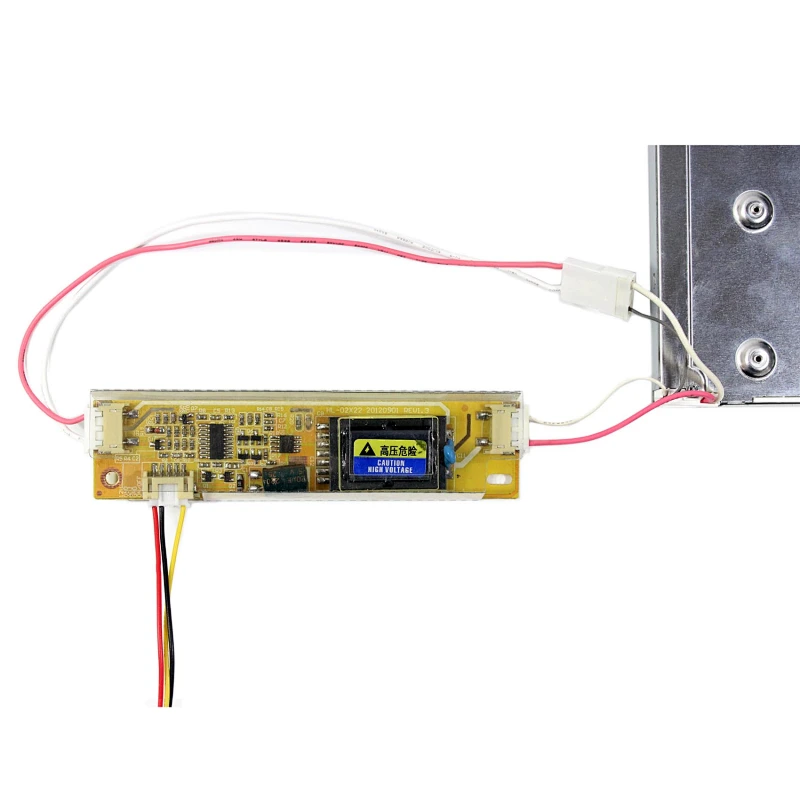

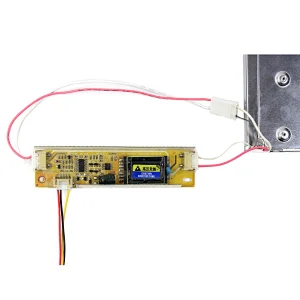

1× Converter Board
1× LVDS Cable
1× Keyboard With Cable


Send Message

* clear input
*

Related Products

Type C HDMI TF Card LCD Controller Board Work for 12.3" HSD123KPW1-A30 1920X720 lcd tft display
Type C HDMI TF Card LCD Controller Board Work for 12.3" HSD123KPW1-A30 1920X720 lcd tft display
Model NO. K002226 VS-CX532H-V1+12.3inch HSD123KPW1-A30
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3" IPS Brightness 850nits Display with HD-MI LCD Controller Board
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3" IPS Brightness 850nits Display with HD-MI LCD Controller Board
Model NO. K002825 VS-N5 V3+HSD123KPW1-A30 1920X720
12.3inch LQ123K1LG03 1280X480 LCD Screen 12.3" Backlight CCFL Monitor with HD-MI USB Android LCD Controller Board
12.3inch LQ123K1LG03 1280X480 LCD Screen 12.3" Backlight CCFL Monitor with HD-MI USB Android LCD Controller Board
Model NO. K002516 VS-TY2660H-V818+LQ123K1LG03
12.3" LQ123K1LG03 1280X480 LCD Screen with LVDS Board H DMI VGA 2AV for Industrial Application
12.3" LQ123K1LG03 1280X480 LCD Screen with LVDS Board H DMI VGA 2AV for Industrial Application
Model NO. K001048 VS-TY2662-V1+LQ123K1LG03
12.3 inches lcd car tft display HSD123KPW1-A30 1920X720 LCD Screen
12.3 inches lcd car tft display HSD123KPW1-A30 1920X720 LCD Screen
Model NO. K002704 VS-56S2+HSD123KPW1-A30 1920X720

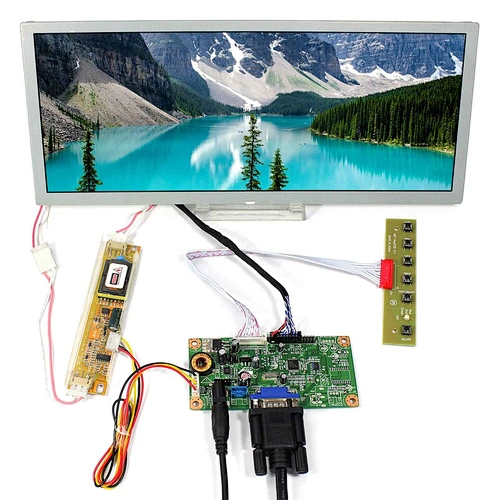

VGA LCD Controller board 12.3inch 1280x480 LQ123K1LG03 lcd panel
