5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board
5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board

5inch ZJ050NA-08C 4:3 640X480 TFT-LCD With HDMI+VGA+DVI LCD Controller Board

Model NO.
K000105- DVI VGA LCD Controller Board +5" ZJ050NA-08C Replace AT050TN22 640x480 LCD Screen
Quantity:

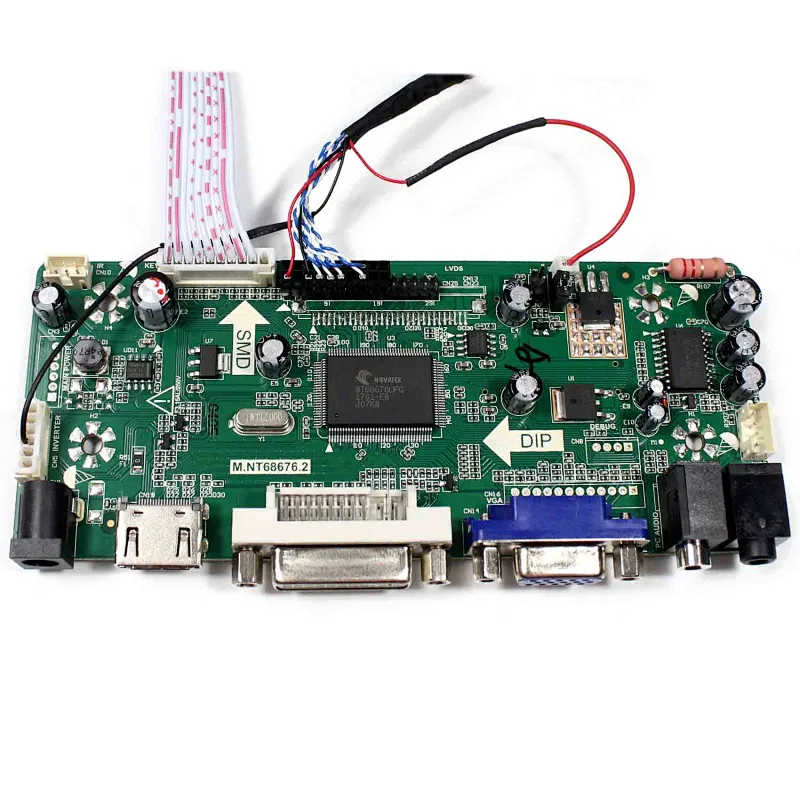

LCD Controller Board:
HDMI DVI VGA  AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

5"ZJ050NA-08C 640X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 117.65 × 88.43×5.9 (H×V×D)
Display Area 101.76 × 76.32 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 50 pins   Parallel RGB (1 ch, 8-bit) , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

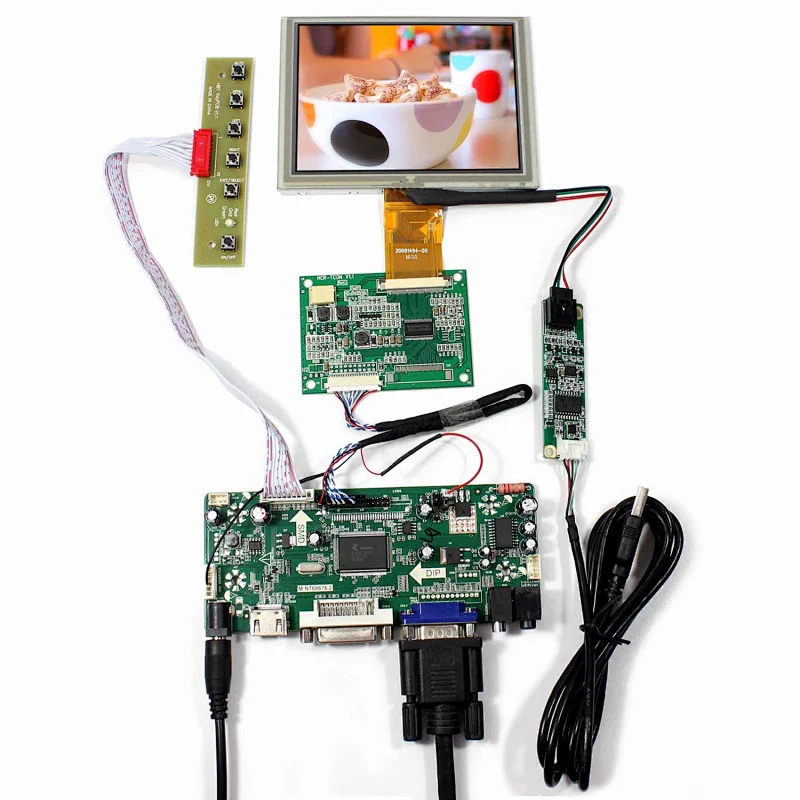

Packing list :
 HDMI+VGA+DVI LCD Controller Board RT68676
5inch ZJ050NA-08C 640X480 LCD
 Tcon Board HCR-TCON V1.1
 LVDS Cable
 Keyboard With Cable
