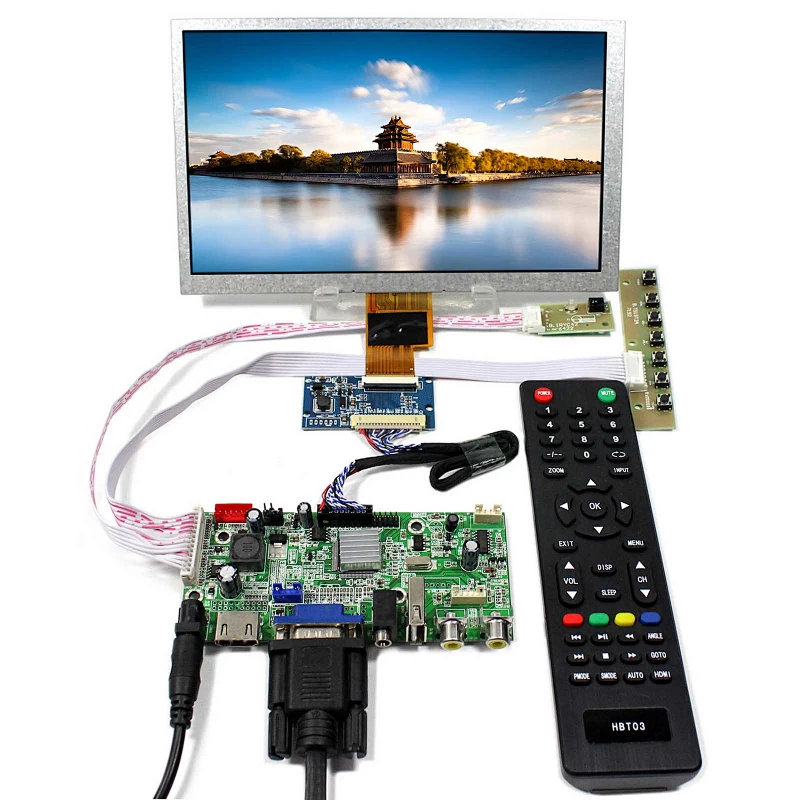

8inch 500nit ZJ080NA-08A 1024X600 TFT-LCD Screen with HDMI+VGA+AV+USB LCD Controller Board
K001609- 59AV driver board+VS-TCON40-V1+ZJ080NA-08A
Quantity:
US $35.00
To
via
DHL
Estimated Delivery on
5-7
Recommend Products
Tcon Board VS-TCON50-V1 with 8" 800x480 tft lcd panel 8 tft lcd 800x480 tft lcd module 800x480 tft lcd 800x480 tcon board tcon lcdK000828 AT080TN64+VS-TCON50-V1
Tcon Board VS-TCON50-V1 with 8" 800x600 tft lcd scree tcon boardK000827 AT080TN52+VS-TCON50-V1
8inch PD080SL3 800X600 LCD Screen with H-D-compatible+VGA+AV+USB LCD Controller BoardK002619-VS-V59AV-V1+PD080SL3-22 800x600
8inch PD080SL3 800X600 8" LVDS 20Pins LCD Screen with H-D-compatible VGA 2AV LCD Controller Board 8inch PD080SL3 800X600K002618 VS-TY2662-V1+PD080SL3-22 800x600

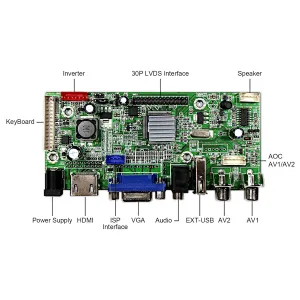

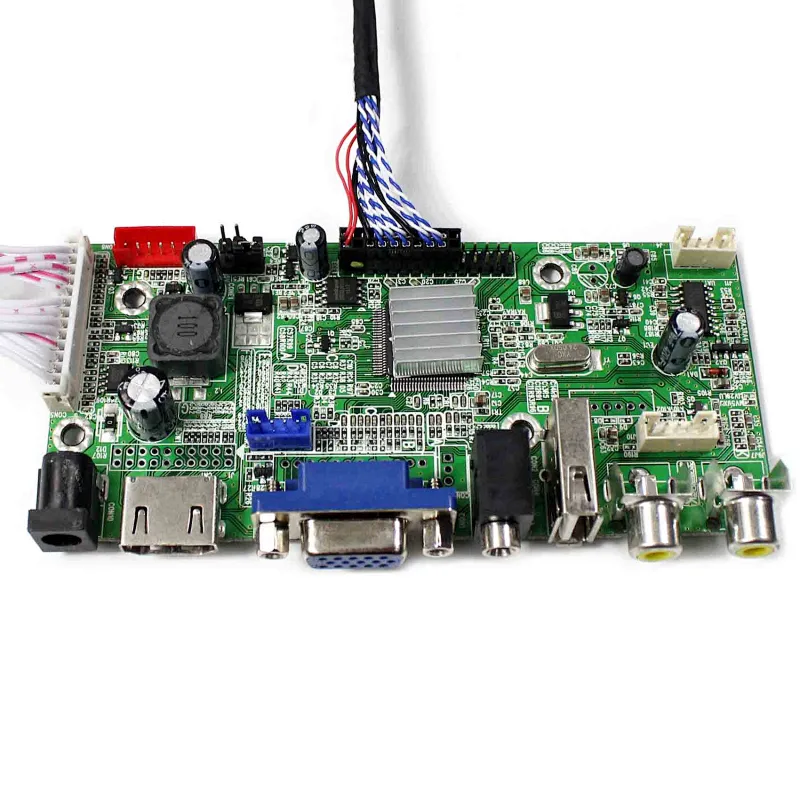

LCD Controller Board:
H-D-compatible VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
H-D-compatible Port Support Transform Audio Compatible With H-D-compatible 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: H-D-compatible VGA AV1 AV2 USB
Audio Input: H-D-compatible PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm
8" ZJ080NA-08A 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

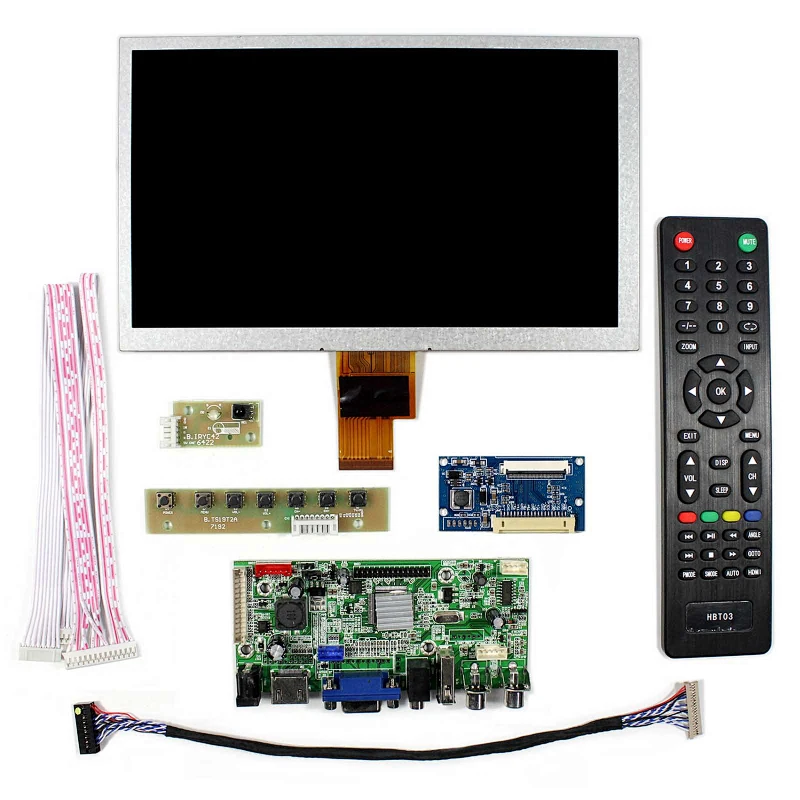

Packing list :
1× H-D-compatible+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1× 8inch ZJ080NA-08A 1024X600 LCD Screen
1× Tcon Board VS-TCON40-V1
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
H-D-compatible VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
H-D-compatible Port Support Transform Audio Compatible With H-D-compatible 1.3/1.4，HDCP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: H-D-compatible VGA AV1 AV2 USB
Audio Input: H-D-compatible PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:118mm x 54mm x 17mm
8" ZJ080NA-08A 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× H-D-compatible+VGA+AV+USB LCD Controller Board VS-V59AV-V1
1× 8inch ZJ080NA-08A 1024X600 LCD Screen
1× Tcon Board VS-TCON40-V1
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
