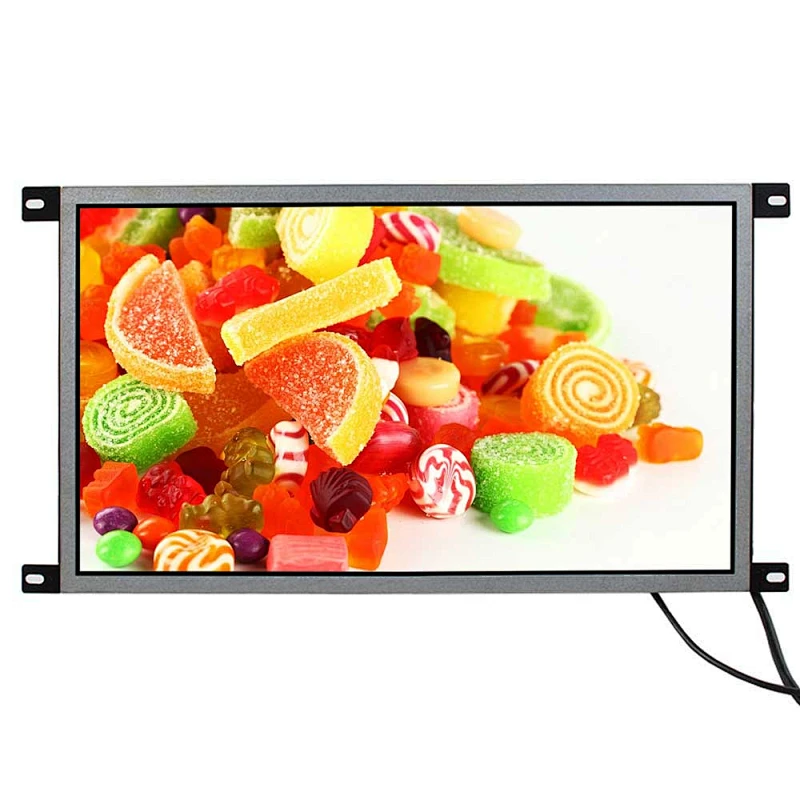

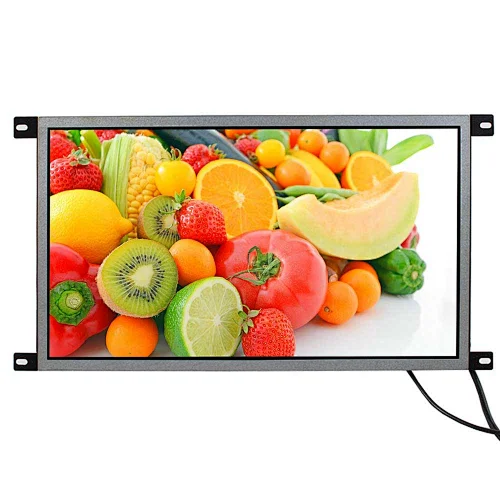

15.6inch G156HTN02.1 1920X1080 LCD Screen Monitor With HDMI USB LCD Controller Board ​​​​​​​

K003038-VS-TY2660HU-823+G156HTN02.1
Quantity:
US $59.00 To via DHL Estimated Delivery on 5-7
Buy Now
Contact Now
add to cart
Product Name:15.6inch G156HTN02.1 1920X1080 LCD Screen Monitor With HDMI USB LCD Controller Board

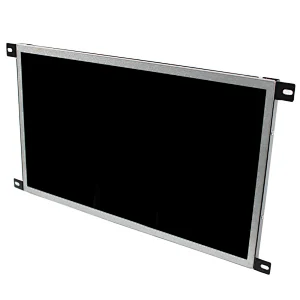

15.6"1920X1080 LCD Screen:
  • Display Mode  TN, Normally White, Transmissive
  • Resolution 1920(RGB)×1080, FHD, 141PPI

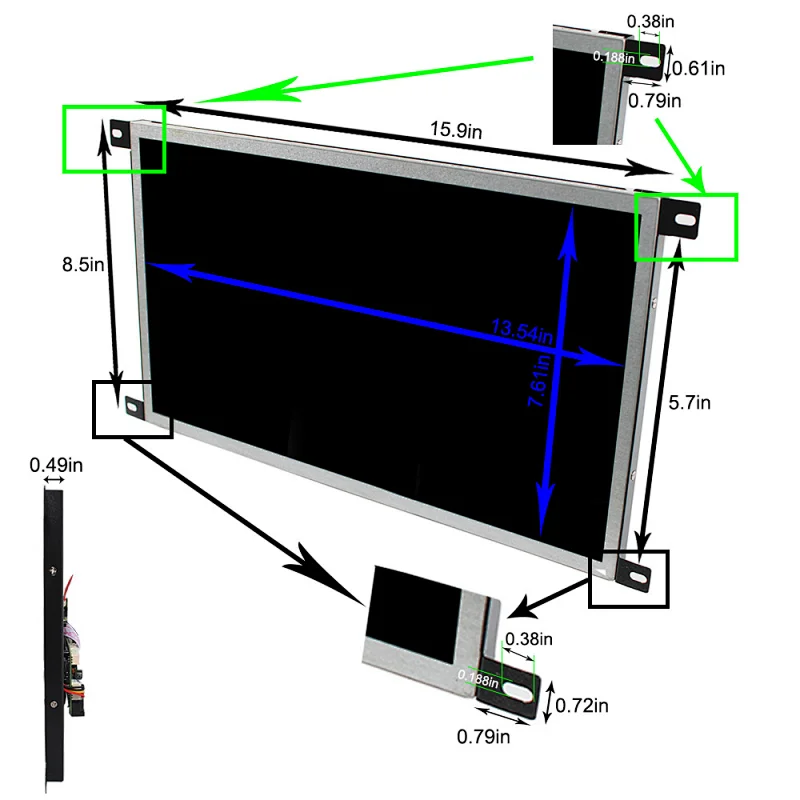

  • Outline Size 363.8(W)×215.9(H) ×12.5(D) mm
  • Display Area 344.16(W)×193.59(H) mm
  • Brightness 1000 cd/m² (Typ.)
  • Contrast Ratio 700:1 (Typ.) (TM)
  • Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
  • Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
  • Input Voltage 3.3V (Typ.)
  • Weight:1720g/3.8LB

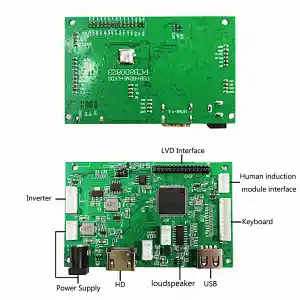

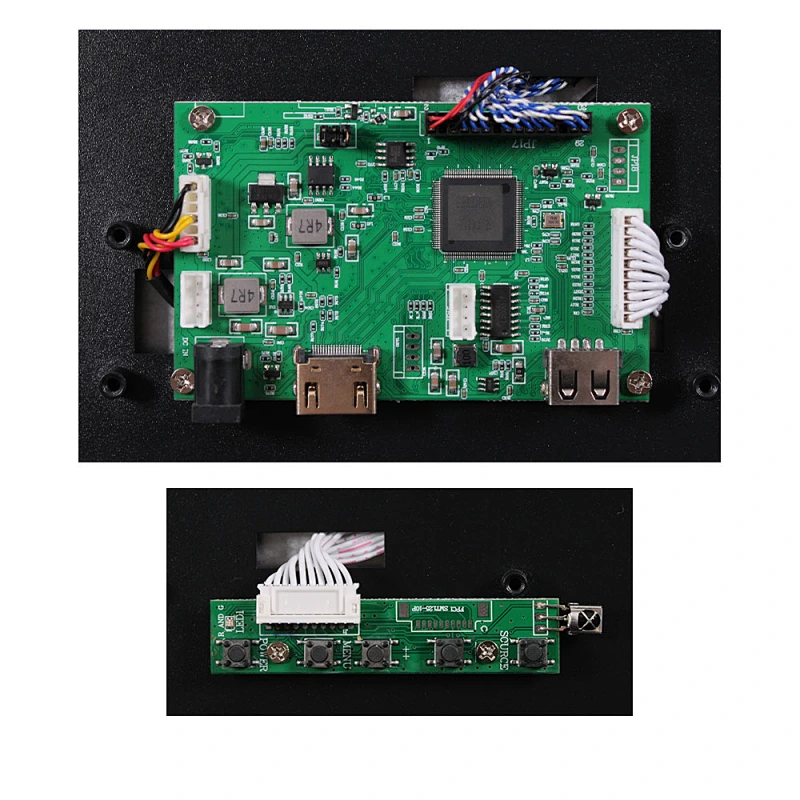

LCD Controller Board:
  • HDMI USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS Interface LCD Screen
  • Input Power Adapter: 12Vdc More than 2A.
  • Come In Standby Model When Not Input Signal
  • Standby Model <1W
  • Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
  • Photoresistors Input Support Automatic brightness adjustment
  • External human body induction signal template, automatic startup and shutdown of human body induction
  • Video Input: HDMI USB
  • HDMI: Support HDMI 1.4
  • USB: Support Video Playback, Picture Playback, Text Playback
  • Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed)
  • Audio: Speaker Support 8ohm 2W/ 4ohm 2W
  • OSD: Brightness Contrast Auto Language And So On
  • Language: English French German Spanish Italian And So On
  • Board Size: 90mm x 51mm x 14mm​​​​​​​

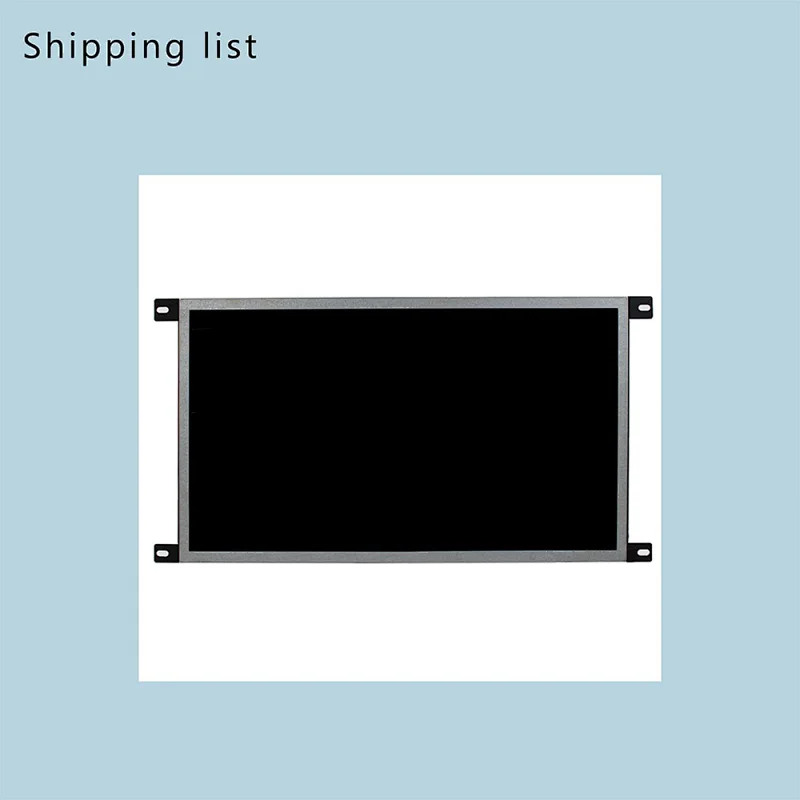

​​​​​​​Packing list:
  • 1× 15.6inch 1920X1080 LCD Monitor Screen With HDMI USB LCD Controller Board
