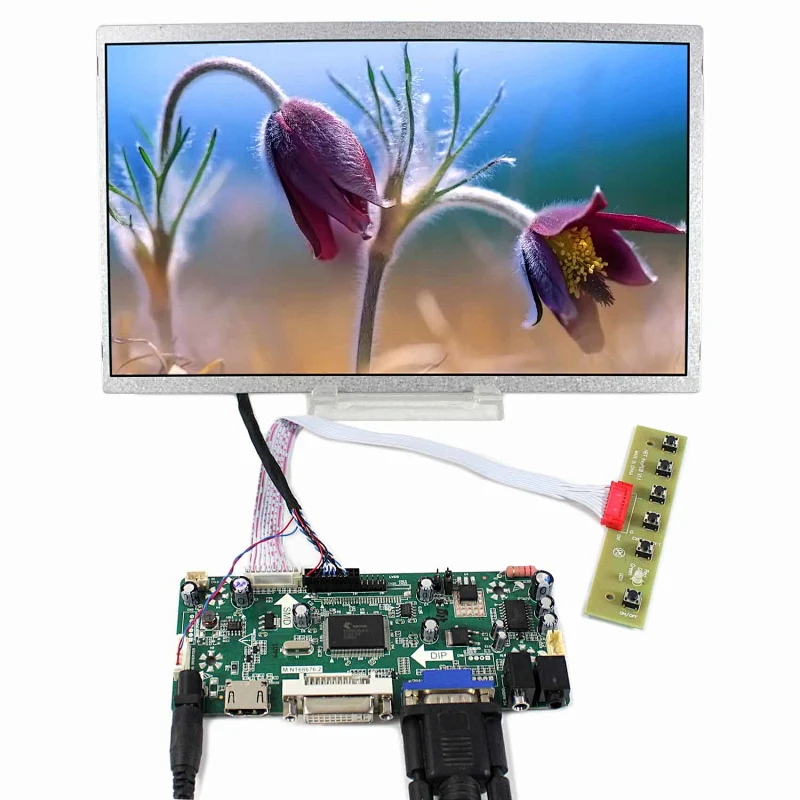

11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board
11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board

11inch HSD110PHW1 1366X768 LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K000314-M.NT68676.2A+ IPEX 40P 1ch 6bit +HSD110PHW1
Quantity:

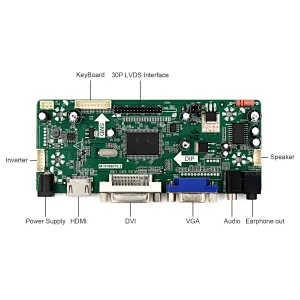

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
11"HSD110PHW1 1366X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1366RGB)×768
Outline Size 256 × 154.7×5.2(H×V×D)
Display Area 243.63× 136.97 (H×V)
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

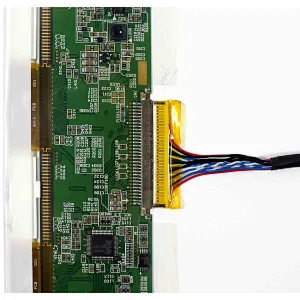

Signal Interface LVDS (1 ch, 6-bit) , 30 pins , Connector

Backlight  WLED
Input Voltage  3.3V (Typ.)

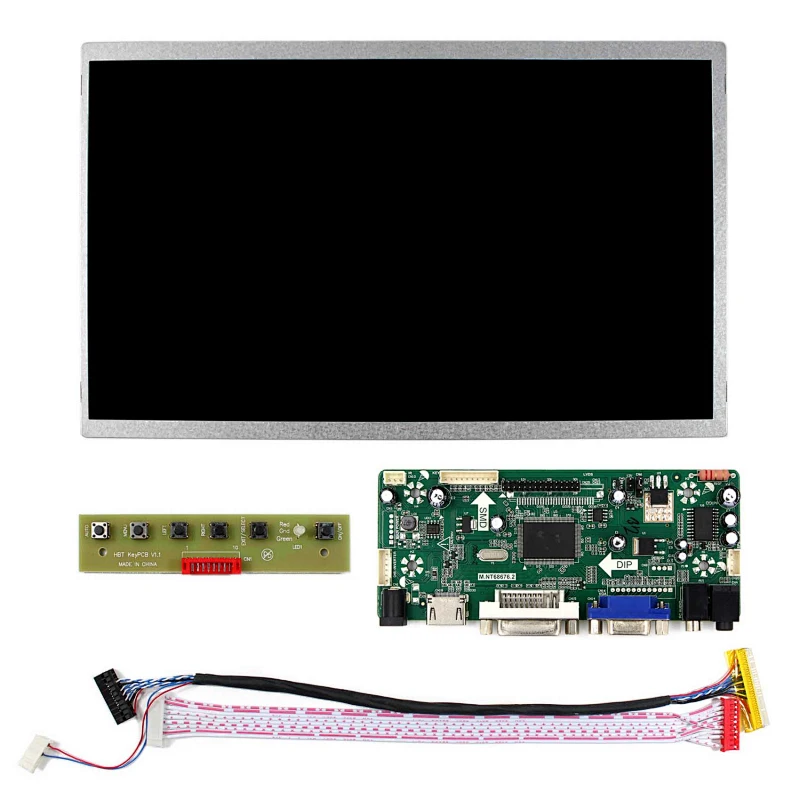

Packing list :

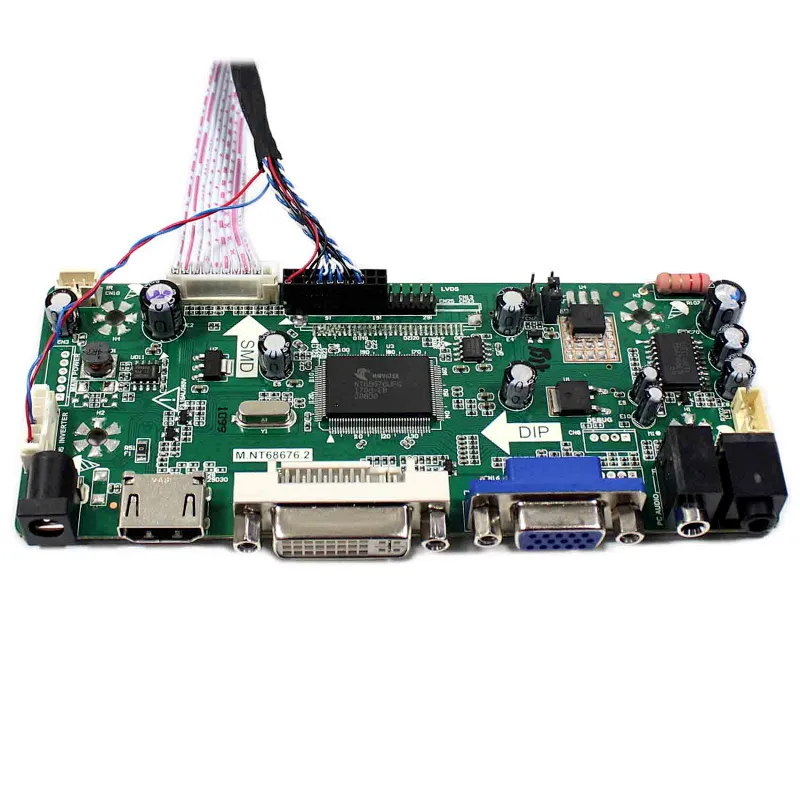

 HDMI VGA DVI LCD Controller Board M.NT68676

11inch HSD110PHW1 1366X768 LCD Screen
 LVDS Cable
 Keyboard With Cable
