Model NO.
K001509-VS101LM1PB2 10.1inch 1366*768 IPS
Quantity:
Bullet Points:

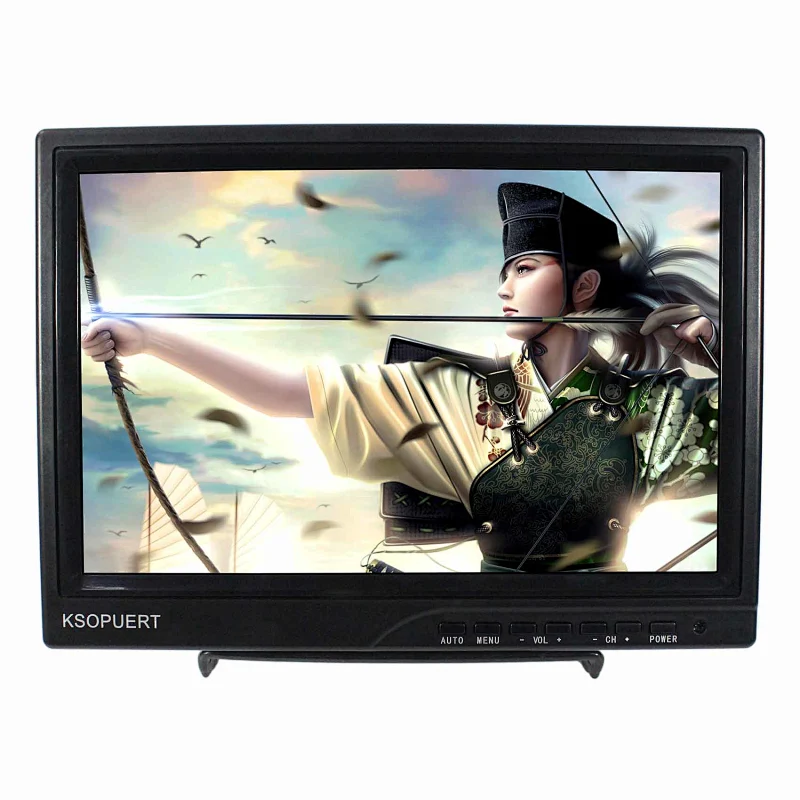

Plastic Shell LCD Monitor
HDMI VGA CVBS USB video input, Screen resolution: 1366(H) x768(V) pixels, screen contrast: 800:1, screen brightness: 400 cd/m².
It can also be used as a monitor for PC monitor and indoor security use. Suitable for game playing, computer using and so on
IPS LCD Screen, the video monitor screen with view full angle: H-85 degree, V-85 degree.
Multi Menu Language: English, French, German, Chinese, Italian, Spanish, Portuguese ,Japanese, Korean
Specifications:
Screen Size :10.1"
Aspect Ratio :16 : 9
Display Model:IPS
Screen Resolution :1366(H) x768(V) pixels
Screen Brightness :400 cd/m^2
Screen Contrast :800 : 1
Response Time :<10ms
Viewing Angle:89/89/89/89(Typ.)(CR>10)(L/R/U/D)

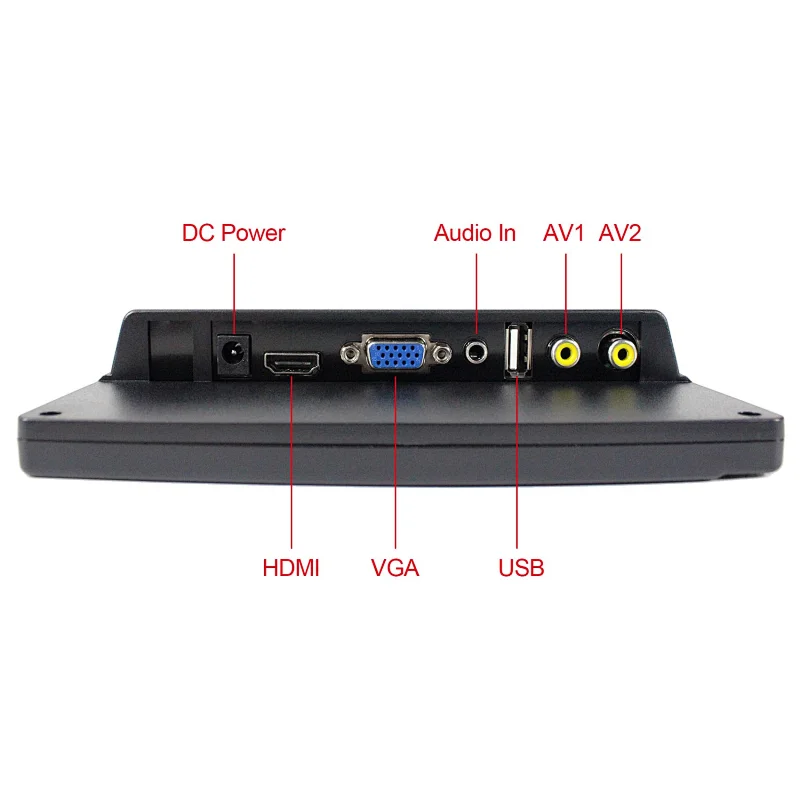

Video Input :VGA, CVBS USB,BNC,HDMI(480i 480p 576i 576p 720p 1080i 1080p)
Audio :PC audio in
Speaker out
Audio :PC audio in
Speaker out
Menu Language :English / French / German / Chinese Simplified / Italian / Spanish / Portuguese /Russian and so on
Operating Temperature :0 ~ 45 degree
Power Supply :- Input: AC 100~240V, 50~60Hz (worldwide voltage)
- Output: DC 12V, 1A

-Standby Model≤0.3WOnly Board
Material :ABS

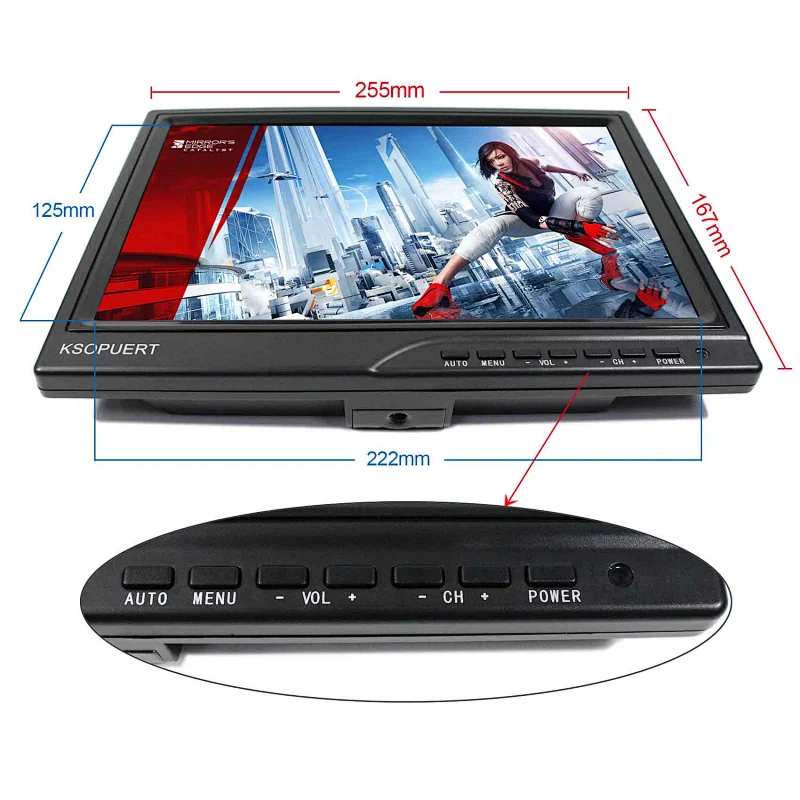

Dimensions :- approx. 255 (H) x 167 (W) x 43 (D) mm
- approx. 10"(H) x 6.6"(W) x 1.7"(D) inch
N.W:- approx.700g
- approx.1.5lb
USB MULTIMEDIA PLAYBACK FORMAT
MediaFile
Ext
CodecRemark
VideoAudio
Movie.aviMJPEGMP3,WMA,ACC,
MP2,PCM.AC3
Max Resolution And Frame Rate 640x480@30fps
Max Date Rate:10Mbps
.mp4Xvid,MPEG-2,MPRG-4,DivX,H.264Max Resolution And Frame Rate 1920x1080@30fps
Max Date Rate:20Mbps
.ts/trpMPEG-2,H.264
.mkv/.movMPEG-4,H.264
.mpgMPEG-1, MPEG-2
.datMPEG-1MP2Max Resolution:352x288
Max Date Rate:20Mbps
.vobMPEG-2Max Resolution:720x576
Max Date Rate:20Mbps
.rm/.rmvbRV8,RV9.RV10COOKMax Resolution And Frame Rate 1280x720@30fps
Max Date Rate:10Mbps
Music.mp3--MP3Sample Rate:32K-48KHz
Bit Rate:32K-320Kbps
Channel:Mono/Stereo
.wma--WMASample Rate:8K-48KHz
Bit Rate:128K-320Kbps
Channel:Mono/Stereo
.m4a/.aac--AACSample Rate:8K-48KHz
Bit Rate:128K-442Kbps
Channel:Mono/Stereo
Photo.jpg/.jpegProgressive JPEG Max Resolution:1024x768
Baseline JPEG Max Resolution:15360x8640
.bmp-- Max Resolution:9600x6400
.pngNon-Interlaced Max Resolution:9600x6400
Interlaced Max Resolution:1200x800
Tex.tetANSI/UNICODE GB/UTF8 File Size:Max 1MB
File System: Hi Speed FS,FAT32,FAT16,NTFS(NTFS compressed file is not supported)
Note:
1.Licenses involved in specifications above are supposed to be obtained by customers themselves
Eg:AC3 and DivX.
2.MP4 can’t support GMC

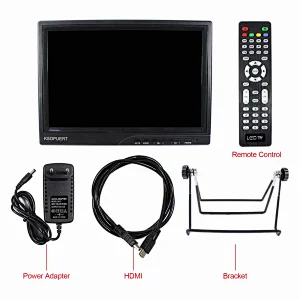

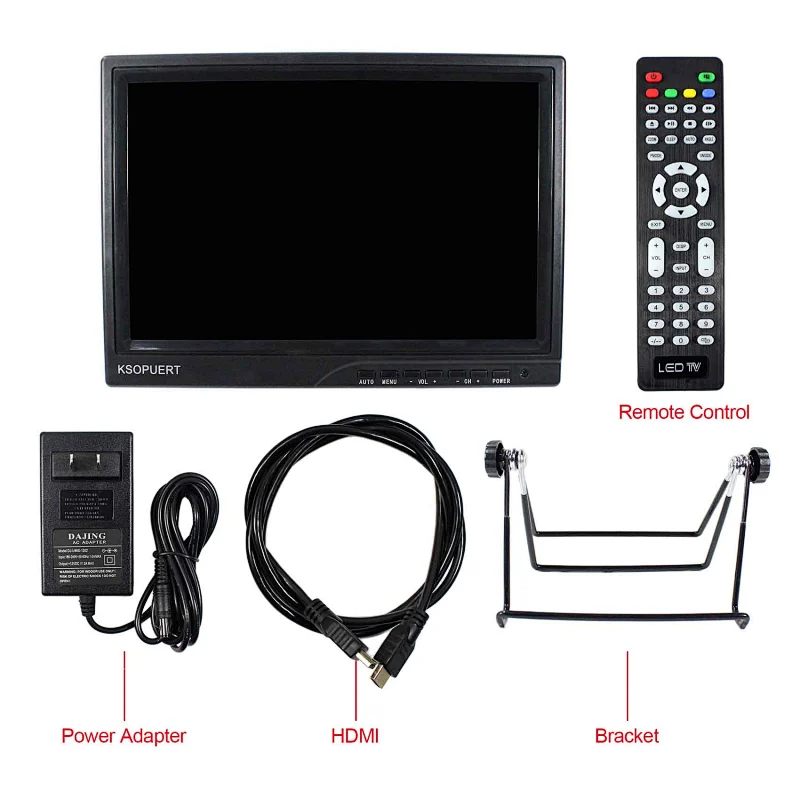

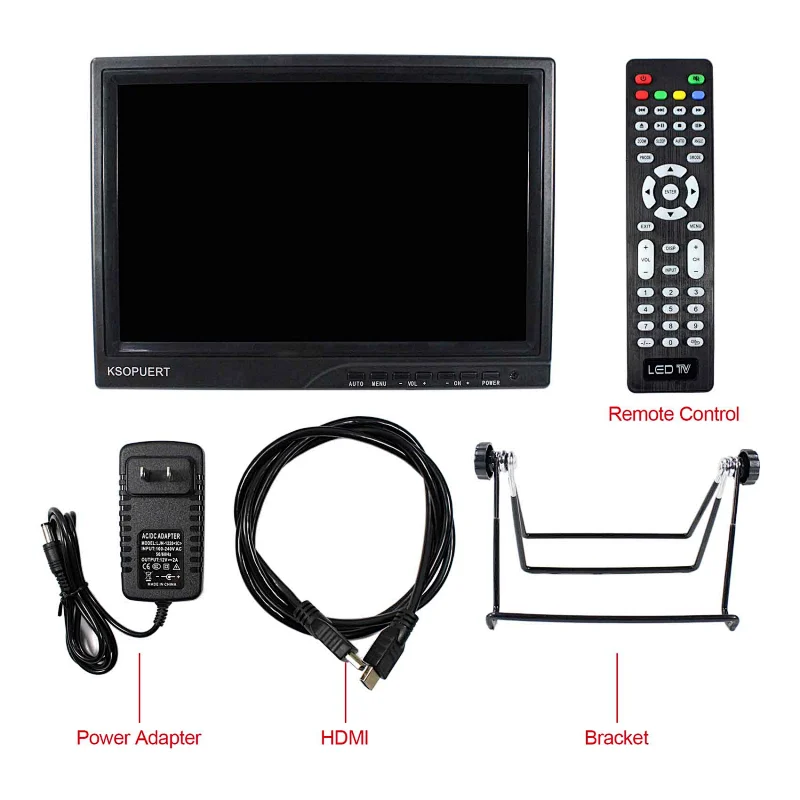

Packing list :

1× 10.1inch 1366x768 IPS LCD Monitor VS101LM1PB2

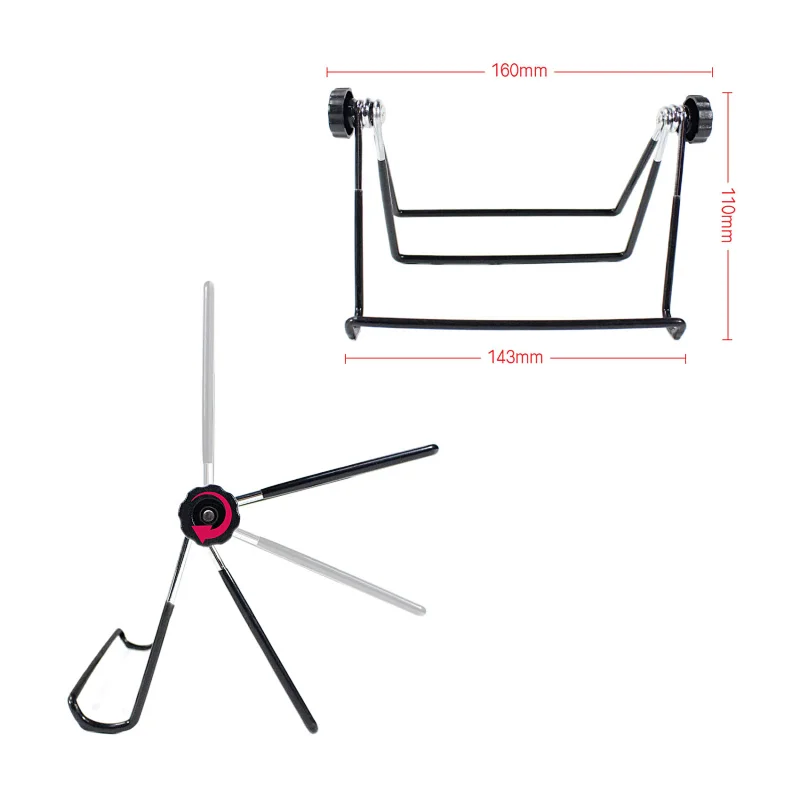

1× Bracket
1× HDMI Cable
1× User Manual
1× Remote Control (Battery Not included)
1× 12V 1A adapter power supply (One of above picture. We will send according to your country)
