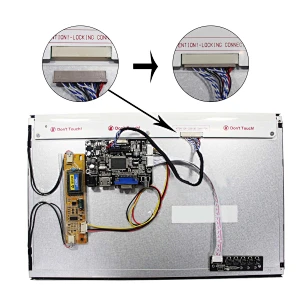

15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board
15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board

15inch M150EW01 V0 1280X720 LCD Screen With HD-MI VGA AV LCD Controller Board

Model NO.
K002752-VS-KYV-N3 V1+M150EW01 V0
Quantity:

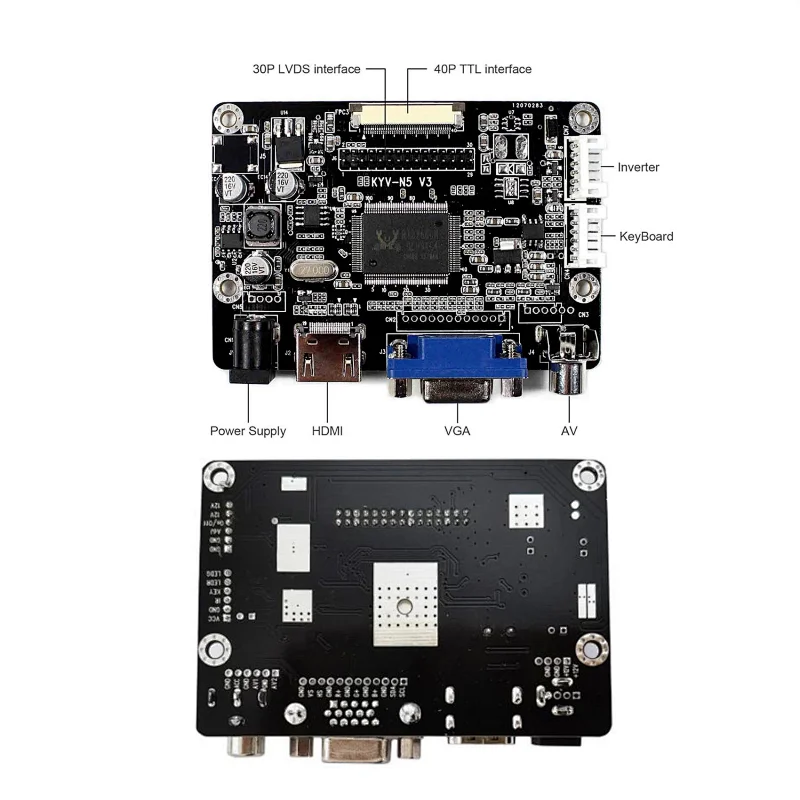

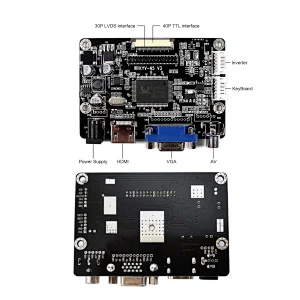

LCD Controller Board:
HD-MI VGA AV LCD Board Work for LVDS Interface LCD Screen
40Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

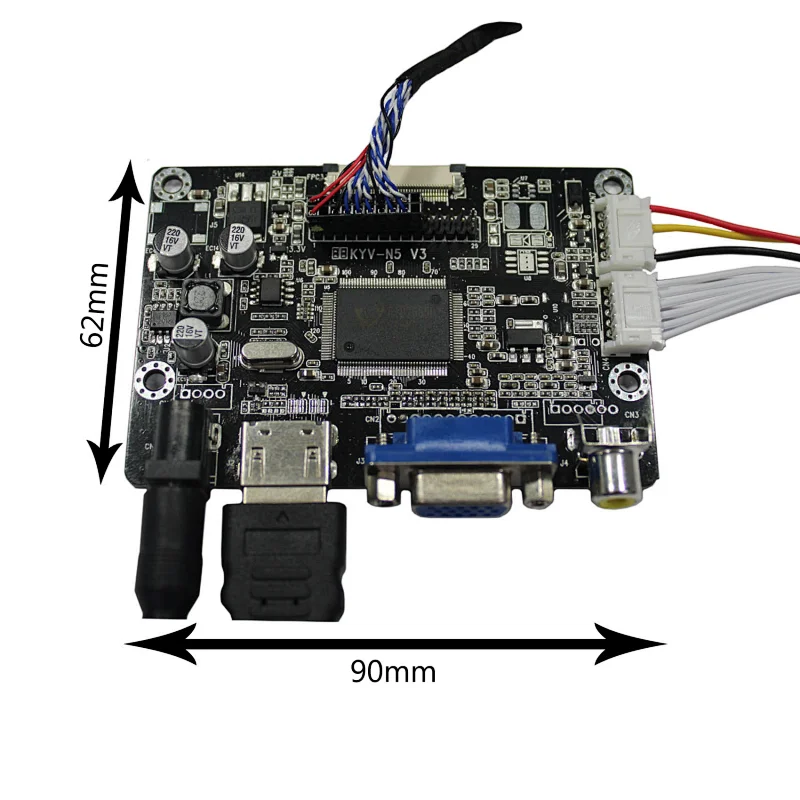

Board Size: 90mm x 62mm x 15mm
15"M150EW01 V0 1280X720 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×720
Outline Size 354.1(W)×227.4 (H×V×D)
Display Area 332.16(W)×186.84 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  20 pins LVDS (1 ch, 8-bit) , Connector 20Pins
Backlight  CCFL
Input Voltage  3.3V (Typ.)

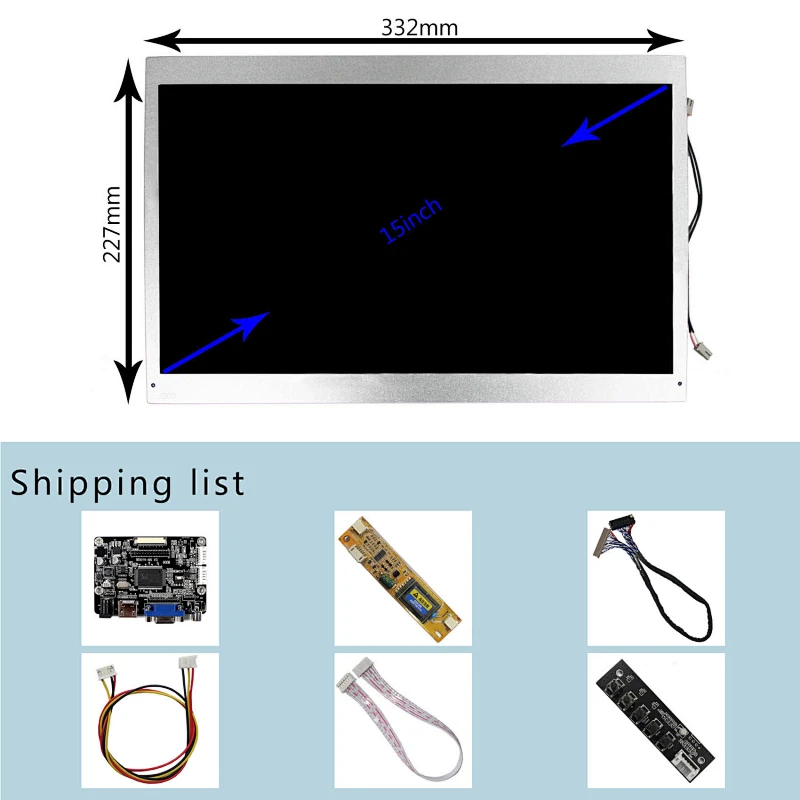

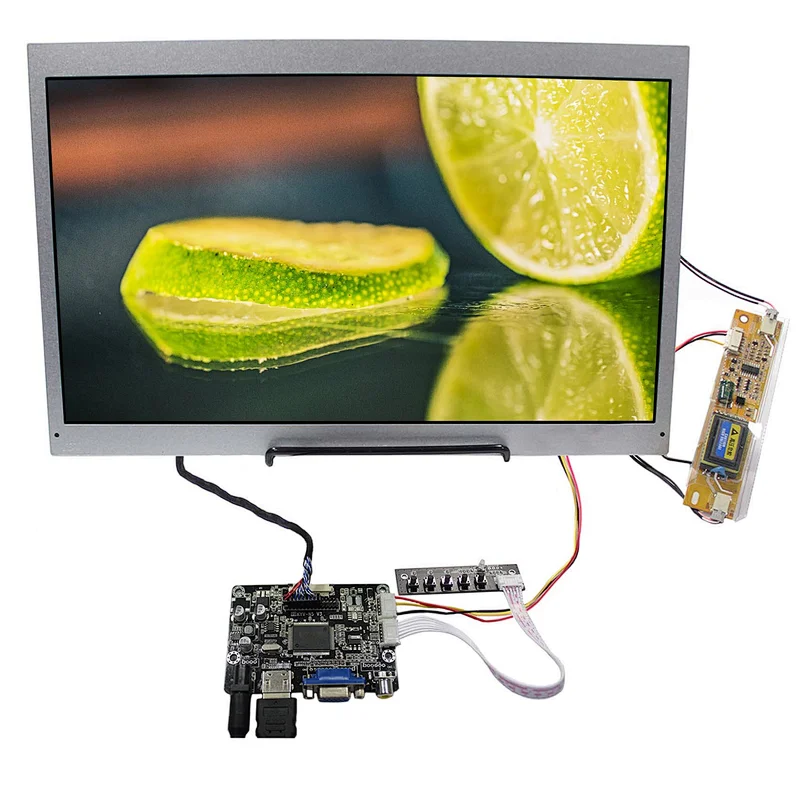

Packing list:
1× HD-MI VGA AV LCD Controller Board KYV-N5 V3
1× 15" M150EW01 V0 1280X720 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
