Model NO.
K000417HSD062IDW1-A+TP
Quantity:

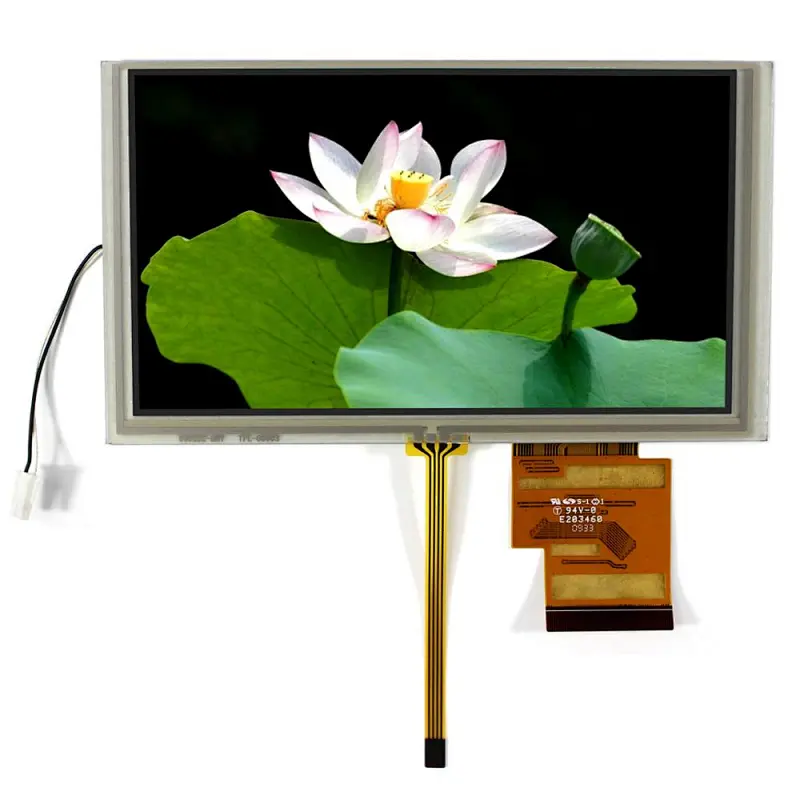

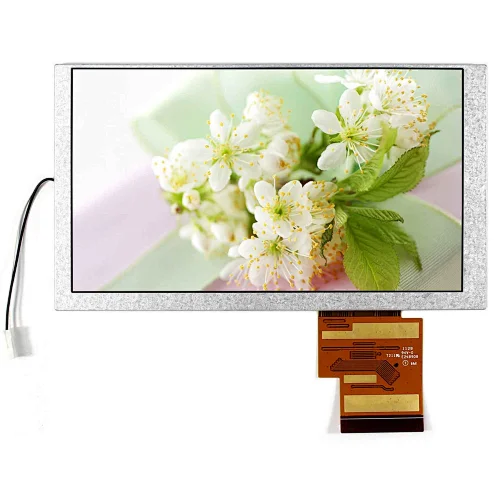

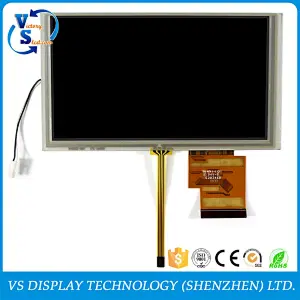

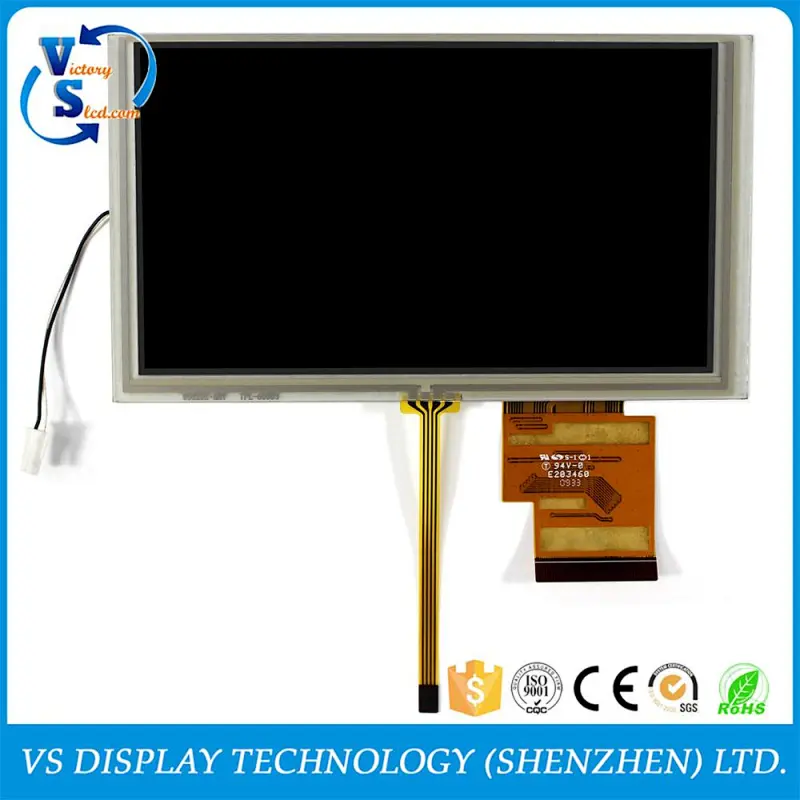

  • 6.2"HSD062IDW1 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 155.2× 80.4×6.5 (H×V×D)
    Display Area 137.5 × 77.2 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 75/75/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× 6.2inch HSD062IDW1 800X480 LCD Screen With 4-Wire Resistive Touch Panel
