TF Card Audio LCD Controller Board 5.5 in M10SX05 1080X1920 LCD Screen tft lcd display panel

TF Card Audio LCD Controller Board 5.5 in M10SX05 1080X1920 LCD Screen tft lcd display panel

Model NO.:: VS-CX53DT900-V1+M10SX05V1.0 1080p K002214
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1
Country of Origin:: CHINA
Stock Time:: 3-7days Days

Quantity:

Product Description
Application Description

Type:TFT
Board Size:95mm x 85mm x 3mm
Standby Model:<0.3W
Audio Output:Speaker Earphone
Display New Mode2:Normally Black, Transmissive
Resolution:1080RGB)x1920
Brightness:450 cd/m2(Typ.)
Contrast Ratio:1000:1 (Typ.) (TM)
Signal Interface:MIPI (2 ch, 4 data lanes) , 40 pins , Connector
Place of Origin:CN;GUA
Display Size:5.5inch
Model Number:K002214 VS-CX53DT900-V1+M10SX05V1.0 1080p+speaker
Brand Name:VS

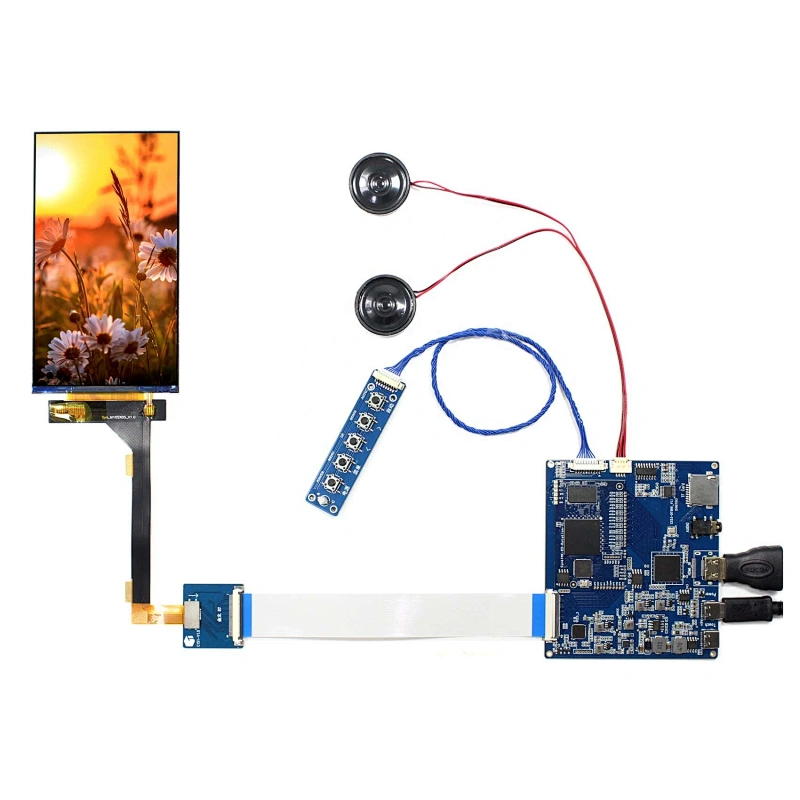

Products Show

Product Description

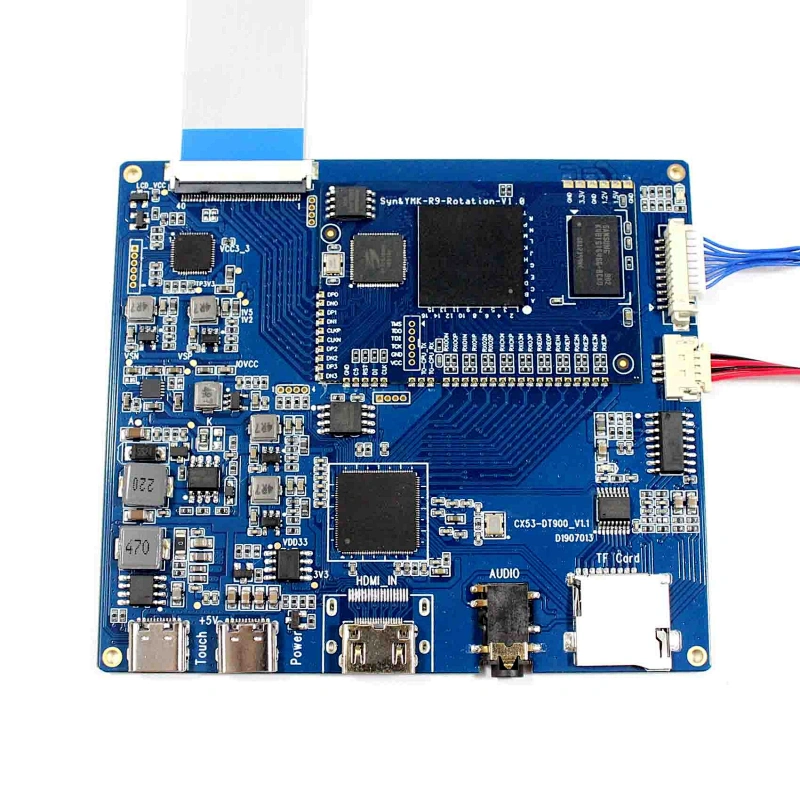

HDMI TF Card LCD Controller Board VS-CX53DT900-V1
5.5inch M10SX05 1080X1920 LCD Screen

Product name:	HDMI TF Card LCD Controller Board VS-CX53DT900-V1

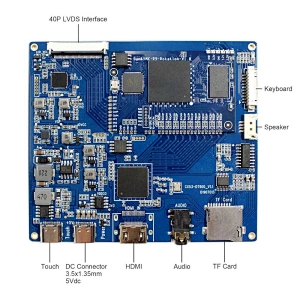

Details:	HDMI Board Work for 40Pin Mipi LCD Screen Input Power Adapter: 5Vdc More than 1A.Type-C Come In Standby Model When Not Input Signal Standby Model <0.3W OSD: Support Menu Contrast Brightness Audio Input: HDMI TF Card Audio Output: Speaker Earphone Language: English Board Size: 95mm x 85mm x 3mm

Product Name:	5.5"M10SX05 1080X1920 LCD Screen
Details:	Display New Mode2, Normally Black, Transmissive Resolution 1080RGB)×1920 Outline Size 70.44 ×129.59×1.61(H×V×D) Display Area 68.04× 120.96 (H×V) Brightness 450 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface MIPI (2 ch, 4 data lanes) , 40 pins , Connector Backlight WLED Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

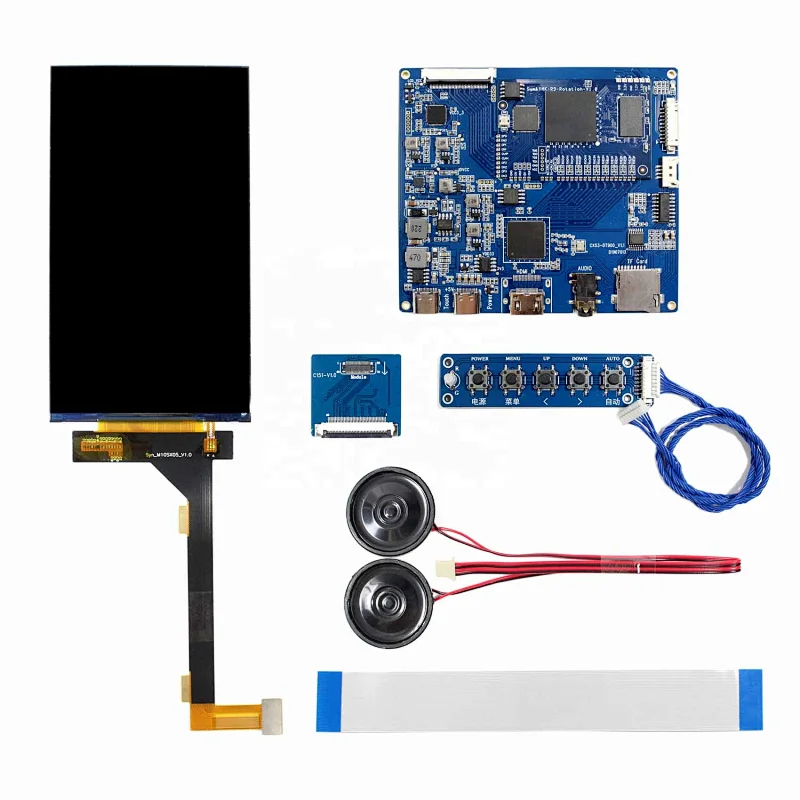

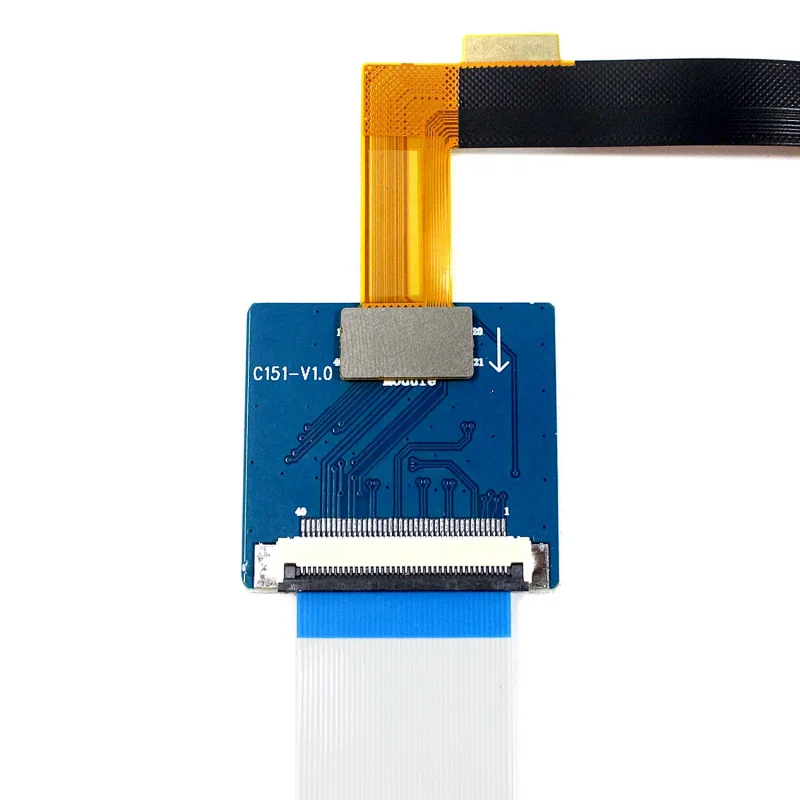

Packing list:	1× HDMI TF Card LCD Controller Board VS-CX53DT900-V1 1× 5.5inch M10SX05 1080X1920 LCD Screen 1× Signal Cable 1× Converter Board 1× 8ohm 2W Speaker

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size : 10.4"

Resolution : 800RGB)×600

Outline Size : 236 × 174.3×4.9 (H×V×D)mm

Brightness : 500 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)
