Model NO.:
VS-TY5060-V1+HSD062IDW1(K000119)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:VS-TY5060-V1+HSD062IDW1(K000119)
  • Brand Name:VS
  • Type:TFT
  • Size:6.2inch
  • Mode:TN,Normally White
  • Resolution:800x480
  • Signal Interface:TTL (1 ch, 6/8-bit) , FPC , 60 pins
  • Contrast Ratio:600:1
  • Board:lcd driver controller board
  • Input:VGA+2AV
  • Power:12V 2A
  • Standby Model:1W
  • OSD:operation

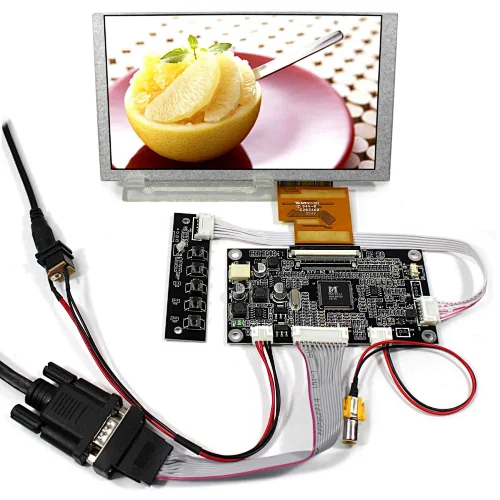

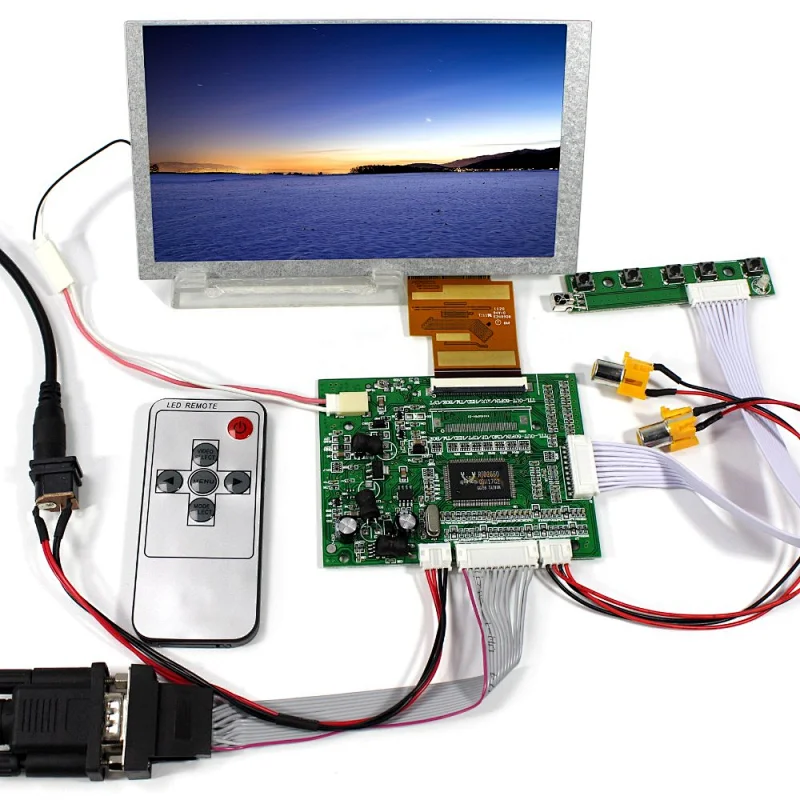

VGA 2AV LCD Controller board with remote controller 6.2inch 800x480 LCD Panel HSD062IDW1

Product Description

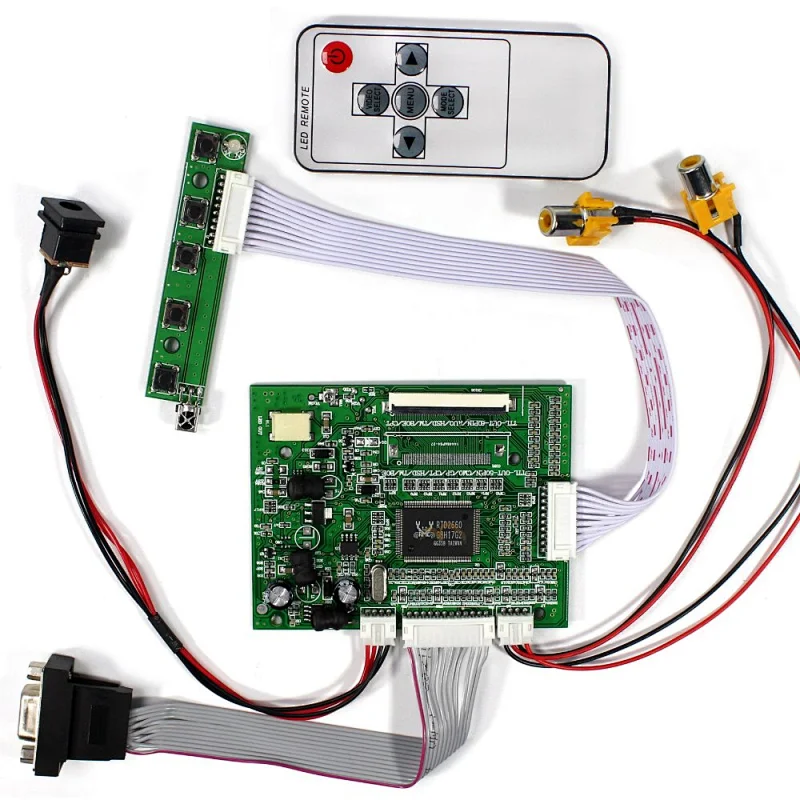

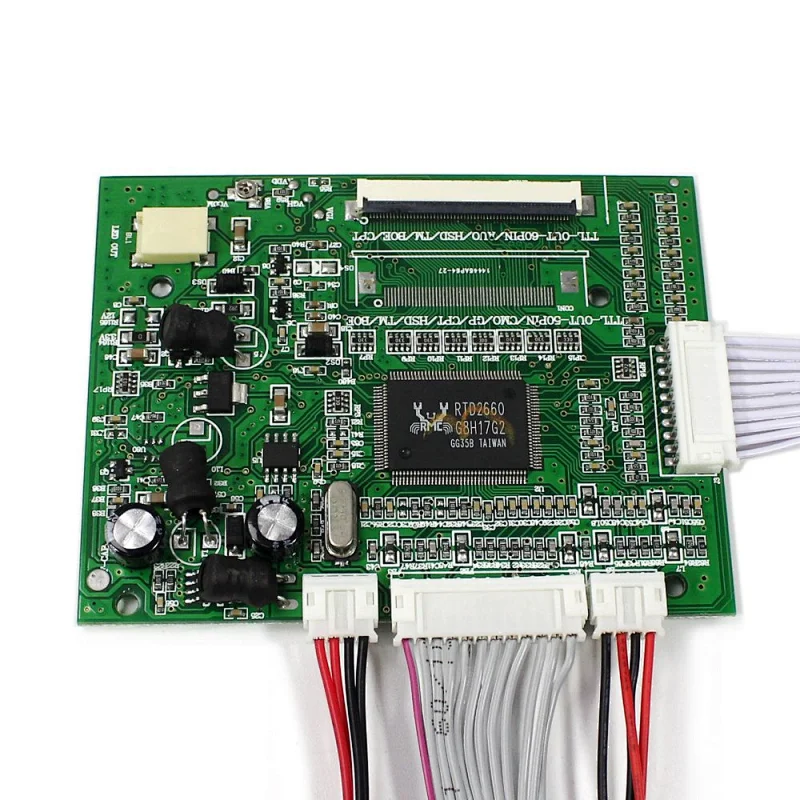

VGA 2AV LCD Controller Board VS-TY5060-V1.0:

K000120(4)-4

VS-TY5060-V1.0 LCD Driver board is mainly designed for 50pin,60pin LCD PANELS.

Board Size:110mm x 85mm x 10mm

Input Power Adapter:12Vdc More than 2A.

Input signal: CVBS1 or CVBS2,VGA,ACC

Support the reversing switch mode

Come In Standby Model When Not Input Signal

Standby Model <1W

OSD: Brigtness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Application: Car Monitor, Visual Intercom, Video Phone, Monitoring Equipment.

6.2inch 800x480 LCD panel HSD062IDW1:

Display Mode: TN,Normally White, Transmissive


Resolution: 800x480

Signal Interface: TTL (1 ch, 6/8-bit) , FPC , 60 pins

Backlight:WLED


Outline Size: 140.7 × 80.4×6.5(H×V×D)


Display Area: 137.5 × 77.2(H×V)


Brightness: 400 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 75/75/70/70 (Typ.)(CR≥10)

Input Voltage 3.3V (Typ.)

OP Temp: -20~70

Packaging & Shipping

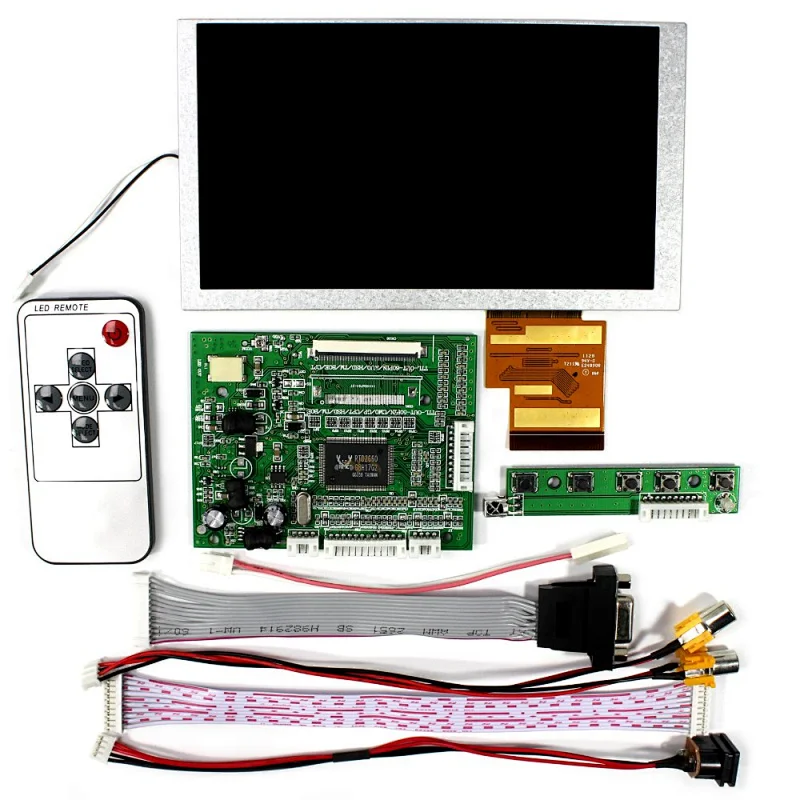

1× VGA 2AV LCD Controller Board VS-TY5060-V1.0

1× 6.2inch 800x480 60pin TTL LCD Screen HSD062IDW1

1× VGA Cable

1× AV Cable

1× Power Supply Cable

1× Keyboard With Cable

1× Remote control (Battery not included Battery Model No CR2032)

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
