VGA AV Reversing LCD Controller Board with 8" high bringtness LCD touch panel lcd touch screen 8 Inch lcd panel 1024x768 lcd controller board

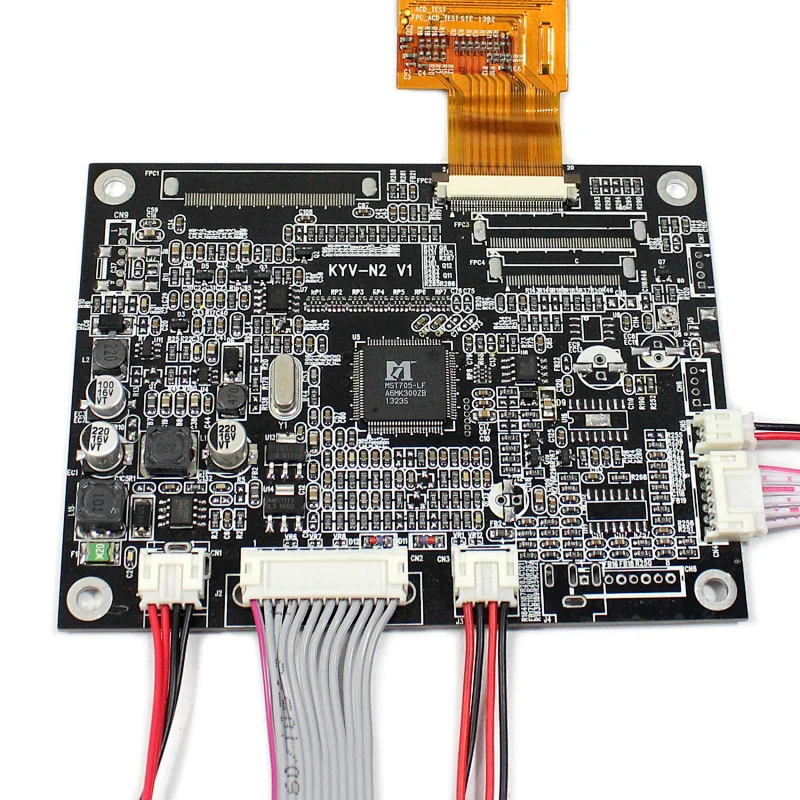

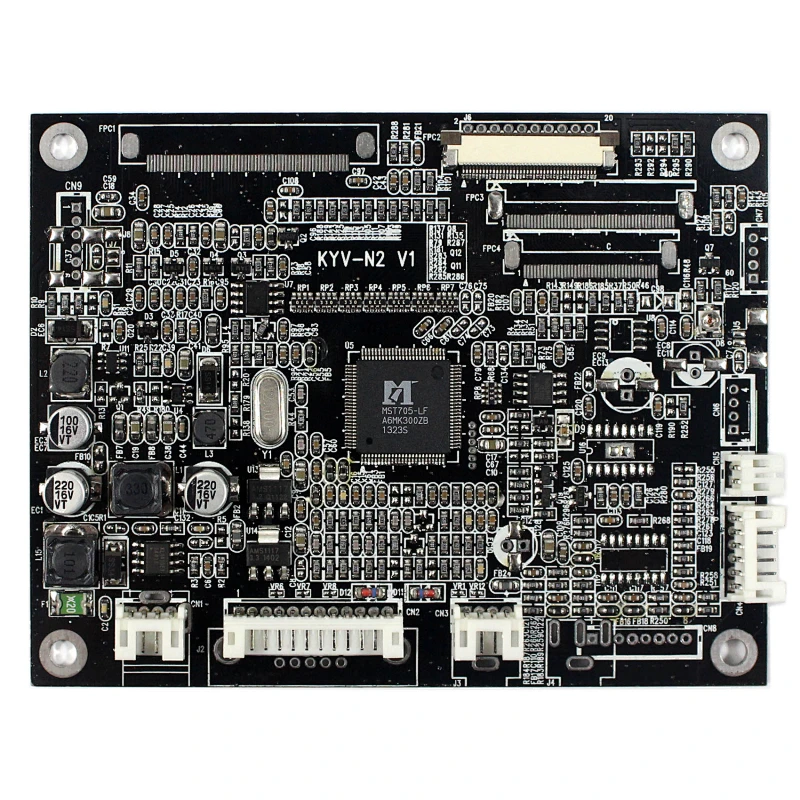

LCD Controller Board:
VGA AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:110mm x 85mm x 10mm



8"HJ080IA-01E 1024X768 LCD Touch Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 174 × 136×2.75 (H×V×D)
Display Area 162.08 × 121.54(H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

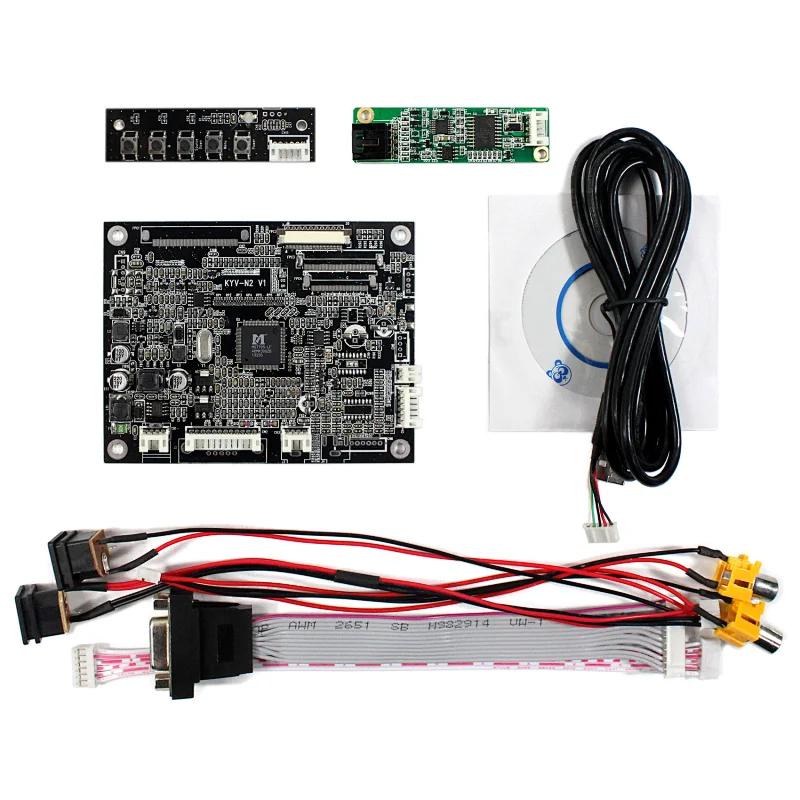

Packing list :
1× VGA+AV LCD Controller Board KYV-N2 V1 Support Reversing
1× 8inch HJ080IA-01E 1024X768 IPS LCD Screen With Touch Panel VS080TP-A2
1× Power Supply Cable
1× Reversing Cable（Connect To 12V Tt Auto switch To AV2)
1× VGA Cable
1× AV Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
