Model NO.:
RT2270C+1LQ123K1LG03(K000849)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:tft
  • LCD Resolution:1280x480
  • LCD SIZE:12.3inch
  • Interface:LVDS 20pins( 1ch 8bit)
  • Backlight:CCFL
  • Brightness:330cd/m2
  • Driver Board:VGA input
  • Power:12v
  • Standby Power Consumption:< 0.2W(Board Only)
  • Place of Origin:CN;GUA
  • Display Size:12.3inch
  • Model Number:RT2270C+1LQ123K1LG03(K000849)
  • Brand Name:VS

VGA LCD controller boardwith12.3inch 1280x480 LCD panel

M.RT2270C.1+LQ123K1LG03

Product Description

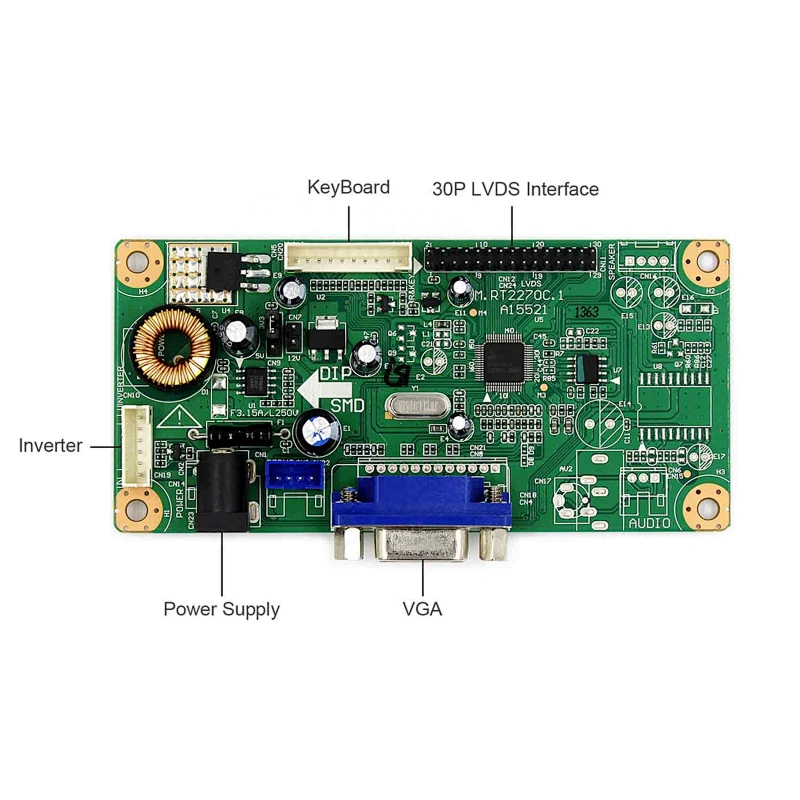

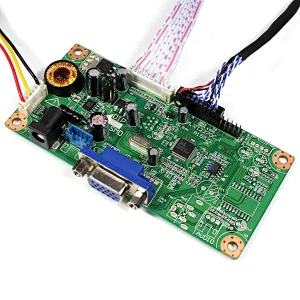

M.RT2270C.1 is a monitor control board, It can support LED/LCD panels which resolution is up to 1920X1080. it supports Dynamic Contrast Control, headphone input and Digital volume control Simultaneously.

Video Input: VGA DVI

Size: 107mm(L)*51.5mm(W)*18mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,AUTO/EXIT

Operation temperature: 0~40°C.

Standby Power Consumption < 0.2W(Board Only)

Panel Interface: Single/Dual LVDS (8bit)

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

12.3inch 1280x480 LCD Panel LQ123K1LG03:

Type: a-Si TFT-LCD , LCM

Resolution: 1280x480

Outline Dim:312.4×130.4x26.4 mm (H×V)

Display Area: 291.84×109.44 mm (H×V)

Signal Interface: LVDS (1 ch, 8bit) , 20 pins

Brightness: 330 cd/m² (Typ.)

Aspect Ratio:8:3 (H:V)

Contrast Ratio: 400:1 (Typ.) (Transmissive)

Backlight: CCFL

Viewing Angle: 65/65/50/60 (Typ.)(CR≥10)

Voltage Input: 3.3V

OP Temp: 0~75℃

Weight:530g

Packaging & Shipping

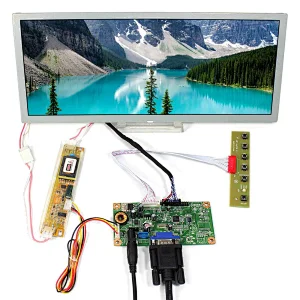

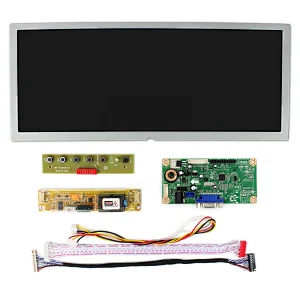

VGA input LCD Controller Board M.RT2270C.1


1× 12.3inch LQ123K1LG03 1280x480 LCD panel

1× Inverter Board for 2lamp CCFL Backlight

1x 20pin LVDS Cable

1× Keyboard with Wire
